TomCat TCG5625 G90 Outrunner 5625-330kV (Class 90 size)

TomCat TCG5625 G90 Outrunner 5625-330kV (Class 90 size)
Manufacturer: Tomcat
Availability: Out of stock
SKU: TCG5625
$189.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

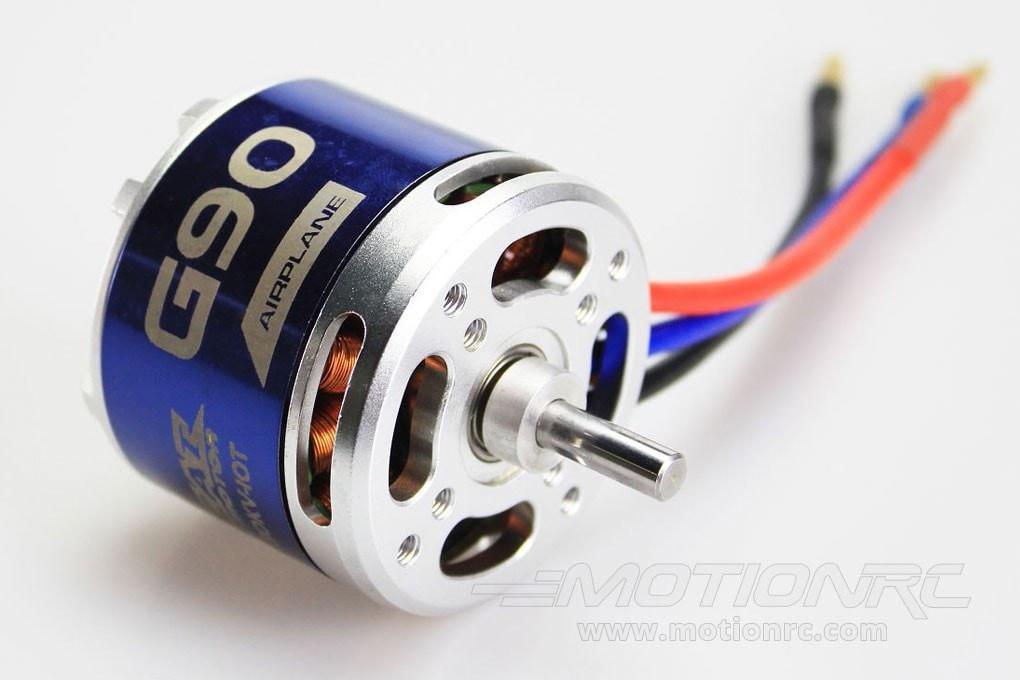

G90 5625-330kV Brushless Motor from Tomcat - DY-TC-G-5625-KV330

The Tomcat class are high quality brushless motors made using Japanese bearings, considered some of the finest bearings in the world.  Tomcat motors are manufactured from CNC blocks unlike cheaper motors that are made from molds. All Tomcat motors come with the necessary mounting hardware, tools, x-plate mount and compression collets in addition to the bolt-on propeller collet.  If you are looking for a reliable brushless motor for your 90-size aircraft that you can trust, the Tomcat G90 is your solution.

Features:

  • CNC-machined for high end precision and quality
  • Each Tomcat motor uses the highest quality Japanese bearings
  • All necessary mounting hardware is included

Includes:

  • Tomcat G90 5625-330kV Brushless Motor
  • Bolt-on propeller adapter with 6mm shaft diameter
  • Mounting hardware
  • X-plate mount
  • Compression collets

Requires:

  • Please review the specification table at the bottom of this page for battery, ESC and propeller ranges and recommendations that will work best for this motor

Brushless Motor Measurement Key

Product Specifications:

Motor Type

Outrunner

kV Rating (RPM/Volt)

330kV

Maximum Watts

1,800W

Continuous Current

50A

Maximum Burst Current

67A, 10 seconds

Recommended Battery (Input Voltage)

6S to 8S (22.2V to 29.6V)

Recommended ESC

70A

Recommended Propeller / EDF

16x8 to 18x8

Slots, Poles

12, 14

Shaft Diameter (A)

6mm

Shaft Length (B)

24mm

Motor Length (C)

53mm

Motor Diameter (D)

56.2mm

Overall Length (E)

77mm

Weight

430g / 15.16oz

Connector Type

4mm Bullet
