Savox SC-0352 Standard Digital Servo

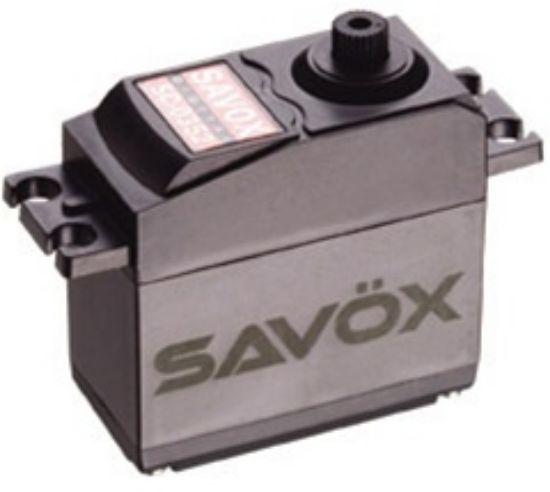

This is the Savox SC-0352 Standard Size Digital Servo.

Features:

• Strict production and quality control of plastic components ensures long life and reliability
• Our servos are totally green � from materials to production, these servos are environmentally friendly.
• Ideal for 30 size airplane applications.

Dimensions(mm):  40.7X20.2X39.4
Weight(g):  42.0
Speed(@4.8V sec/60):  .14
Torque(@4.8V oz-in):  58.3 (4.2kg-cm)
Speed(@6.0V sec/60):  .11
Torque(@6.0V oz-in):  90.3 (6.5kg-cm)
Gear:  Industrial Plastic
Bearing:  2BB
Case:  Plastic
25 Tooth Spline

Running current (at no load):  180 mA @ 4.8V
Running current (at no load):  240 mA @ 6.0V
Stall current (at locked):  1300 mA @ 4.8V
Stall current (at locked):  1500 mA @ 6.0V
Idle current (at stopped):  5 mA @ 4.8V
Idle current (at stopped):  5 mA @ 6.0V
Limit angle:  180��10�
Connector wire gauge:  ＃26 AWG
Connector wire length:  250 �5 mm
Horn gear spline:  25T
Control system:  Pulse width modification
Amplifier type:  Digital controller
Operating Travel:  120� (when1000→2000 μsec)
Neutral position:  1500 μsec
Dead band width:  5 μsec
Rotating direction:  Counterclockwise (when1500→2000 μsec)
Pulse width range:  800→2200 μsec
Maximum travel:  Approx 164�(when800→2200 μsec)
