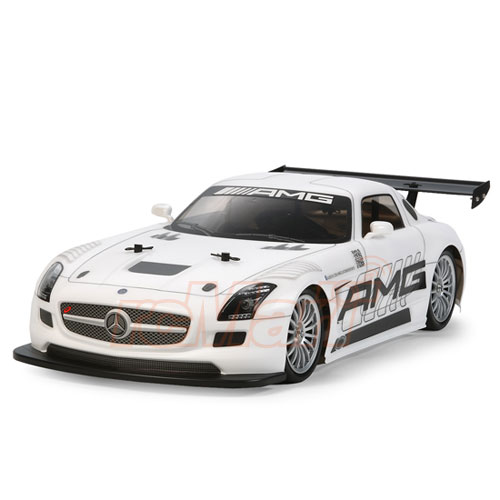

Tamiya 58566 Mercedes Benz SLS TT-02 KIT

The SLS AMG GT3 is a racecar version of the September 2009-released Mercedes-Benz SLS AMG, and it is supplied to racing teams around the world. The aluminum long-nose, short-deck body is fitted with gull-wing doors and the functional interior features a roll cage. Down-force is provided by the front spoiler, large rear wing and rear diffuser, while the transaxle layout uses a sequential 6-speed transmission to transmit power from the front-mounted 6.2-liter V8 engine to the rear wheels.
Tamiya has faithfully reproduced this sleek racing machine in 1/10 scale on the TT-02 entry level touring car chassis. The TT-02 chassis platform is the successor to the TT-01 as it incorporates many new features to make it even easier for the new R/C kit builder to assemble and learn from. The TT-02 chassis performs well as cornering and overall speed has been enhanced to take advantage of new electronics available on the market. In addition to the TT-02 being an ideal platform to start from, R/C hobbyists can expand its potential by adding many of the Ho-Up-Options available to increase the cars speed and performance.

Feature:

• Scale: 1/10 scale
• Construction type: assembly kit
• Terrain use: on-road
• Drive-train: 4WD
• Drive type: gearbox
• Drive line: dog bone
• Differential type: gear
• Suspension: fully independent double wishbone
• Steering mechanism: bell-crank
• Shock damper: friction damper
• Shock damper material: plastic
• Chassis material: plastic
• Bearings: plastic bushing
• Electronic Speed Control (ESC) : included
• ESC model : TBLE-02S
• Adjustable camber: fixed
• Adjustable toe angles: front only
• Adjustable ground clearance: yes
• Adjustable gear ratio: yes
• Adjustable wheelbase: yes
• Adjustable track width: yes
• Adjustable shock angle: yes
• Special feature 1: Easy to build entry level kit
• Special feature 2: Includes window masking seal for easy painting
• Special feature 3: Highly detailed body with vinyl stickers
• Special feature 4: Symmetrical suspension components
• Special feature 5: Beveled main chassis for improved cornering clearance
• Special feature 6: Brake disc shaped wheel hubs
• Special feature 7: Wheelbase: 257mm/251mm adjustable
• Special feature 8: Compatible with 380-size motors
• Special feature 9: Battery compartment compatible with square shaped batteries

Specification:

Vehicle:

• Length: 453mm
• Width: 190mm
• Height: 121mm
• Wheelbase: 257mm or 251mm

Include:

• Tamiya 1/10 TT02 Chassis (1 Set)
• Motor: 540-Brushed Type (1 pc)
• ESC: TBLE-02S (1 pc)
• Wheel (4 pcs)
• Rubber Slick Tire (4 pcs)
• Clear Polycarbonate Mercedes-Benz SLS GT3 AMG Body (1 Set)
• LED Light buckets (1 pairs)
• Decals
• Instruction

Require:

• Receiver
• Servo
• 7.2 battery & Charger
• 2-channel Radio Gear
