Futaba 3PV2 2.4GHz 3ch Car Transmitter 3-Channel R203GF Receiver

Futaba 3PV 2.4GHz 3ch Car Transmitter
Manufacturer: Futaba
Availability: 1 in stock
SKU: 3PV2
$229.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

**Telemetry capable only with R314SB receiver.
Please note: the 3PV is not compatible with FASSTâ„¢ electronics.



Features:



    • FHSS/S-FHSS/T-FHSS* protocols

    • 10-model memory

    • Model Reset

    • Model Name (4-Character)

    • Low Battery Alarm

    • Link Mode (T-FHSS only)

    • DT3 Selection

    • SW1

    • Steering Trim

    • Throttle Trim

    • Channel 4 Trim

    • Sub Trim

    • Steering Dual Rates

    • Steering End Point Adjustment
spacer
    • Throttle End Point Adjustment

    • Channel 3 End Point Adjustment

    • Channel 4 End Point Adjustment

    • 4WS/Brake Mixing

    • Steering Servo Reversing

    • Throttle Servo Reversing

    • Channel 3 Servo Reversing

    • Channel 4 Servo Reversing

    • Steering Exponential

    • Throttle Exponential

    • Throttle Fail Safe

    • ABS Function

    • Model Data Copy

    • Auto Power-Off after 10 minutes



*T-FHSS available only with R314SB receiver.


Transmitter Specifications:
Type: 3-Channel FHSS/S-FHSS/T-FHSS*
Includes: 3-Channel R203GF Receiver
Requires: (4) "AA" alkaline batteries, or 6.6V 1900mAh LiFe battery (HCAM6521), or 6V NiMH Battery (FUTM1482)


R304SB Receiver Specifications:
Type: 3-Channel FHSS/S-FHSS/T-FHSS
Input Power: 4.8V-7.4V
Dimensions: 1.38 x 0.91 x 0.33 in (35.1 x 23.2 x 8.5 mm)
Weight: 0.23 oz (6.6 g)


R203GF Receiver Specifications:
Type: 3-Channel FHSS/S-FHSS
Input Power: 4.8V-7.4V
Dimensions: 1.37 x 0.9 x 0.33 in (33 x 23 x 8.5 mm)
Weight: 0.21 oz (6 g)

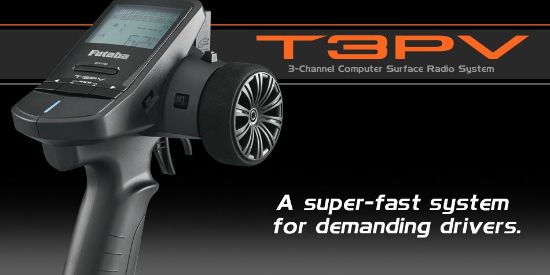

Hold the 3PV in your hand, and instantly feel how lightweight it is. Access the programming menu on the easy-to-read screen, and see how sophisticated it is. Experience the 3PV's super-fast response rate, and realize that you're in command of the system that can make a real difference on race day. You also get FHSS, S-FHSS and T-FHSS protocols, making it one of R/C's most versatile surface system. The 3PV is available with a choice of included receivers: an R304SB telemetry receiver for keeping you apprised of receiver voltage, or a high-voltage R203GF receiver that's an ideal match for brushless ESCs and digital servos.






3PV wheel and trims 3PV large screen



Steering, Throttle and Steering Dual Rate digital trims are conveniently positioned around the wheel for easy access. The nearby switch is for programming 3rd channel functions if needed.





The large screen makes it easy to view information from the 3PV's intuitive menu.


3PV battery box



The battery compartment is accessed through the transmitter's base, and can hold 4 "AA" batteries, NiMHs (such as the Futaba HT5F1800B) or a lithium pack (such as the LifeSource 6.6V 1900mAh 3C).
