Pilot-RC PY-10AH (13.1KG) HV Mini Servo

The PY-10AH is a great all round servo with 13.1Kg torque at 0.19s

Pilot-Rc’s range of servos offer a mix between torque, speed and importantly affordability.  They are designed around modellers, which is why they come as standard with extra long leads and with an included servo arm in order to hold up to even the toughest of jobs. **Not to be used as throttle servo due to vibration, use as buyers risk**

Pilot-Rc’s range of servos offer a mix between torque, speed and importantly affordability.

 PY-10AH SPECIFICATIONS:

Type	Mini – Coreless
Voltage	6.0v-7.4v
Torque	13.1kg ( 462oz) at 7.4v 11.2kg ( 395oz) at 6.0v
Speed	0.19s at 7.4v 0.21s at 6.0v
Weight	37g
Dimensions	35mm x 15mm x 29.2mm
Spline	25T (futaba)
Gear	6 metal gears
Wire length	30cm

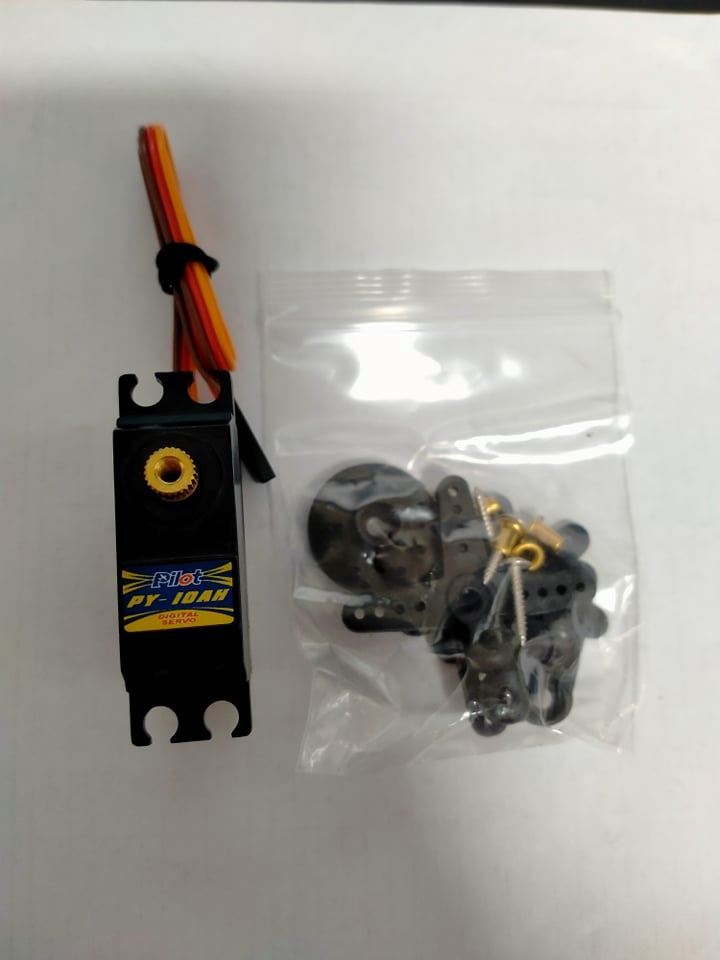

INCLUDED:

• x1 Pilot-Rc PY-10AH servo, with 30cm servo wire
• Plastic servo arms
• Mounting accessories (screws, rubber grommets and brass eyelets)
