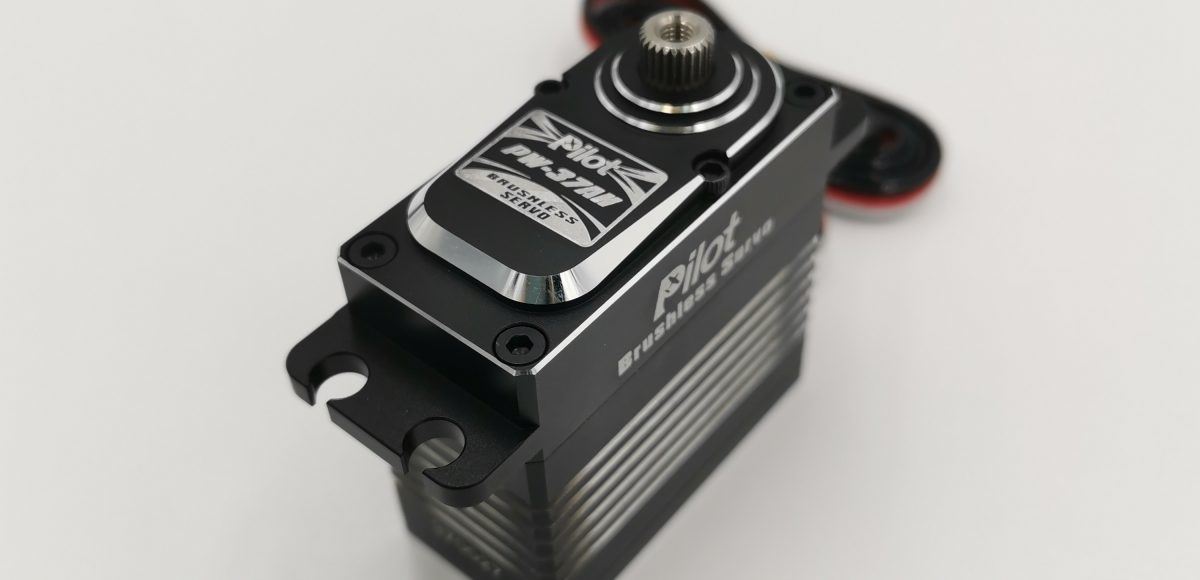

Pilot RC PW-37AH 37kg HV High Torque Brushless Servo + 1.6″ Alu arm

Manufacturer: Pilot-RC
Availability: 10 in stock
SKU: PW-37AH
$199.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Pilot-Rc’s range of servos offer a mix between torque, speed and importantly affordability.  They are designed around modellers, which is why they come as standard with extra long leads and with an included Aluminium servo arm in order to hold up to even the toughest of jobs.

NEW FEATURE:

All Pilot-RC servos come with extra long leads for ease of use in smaller models without the need for additional extension leads.

Included with the PW-37AH you will also find spare Futaba connector and pins, which allow a user to shorten the wire and crimp a brand new connector onto it, should they wish to do so, with everything included in the box. Even with one spare pin, just in case!

 PW-37AH SPECIFICATIONS:

TypeBrushless Digital
Voltage5.0v-8.4v
Torque37.8kg (525 oz) at 8.4v
35.5kg (493 oz) at 7.4v
Speed0.07s at 8.4v
0.08s at 7.4v
Weight93g
Dimensions40mm x 20mm x 39.85mm
Spline25T (futaba)
GearSteel
BearingsYes (x2)

INCLUDED:

  • x1 Pilot-Rc PW37AH servo, with 50cm servo wire
  • x1 Pilot-Rc 1,6″ Aluminium servo arm
  • x1 Double plastic servo arm
  • Spare Futaba connector and pins
  • Mounting accessories (screws, rubber grommets and brass eyelets)

PW-37AH SERVOS IN ACTION! (AILERONS)
