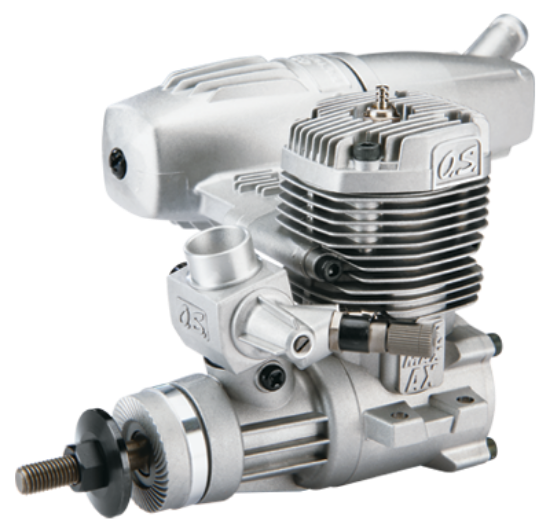

OS Engines 15490m MAX 46AXII w/E-3071 Silencer

OS Engine MAX 46AXII w/E-3071 Silencer
Manufacturer: OS Engines
Availability: Out of stock
SKU: 15490m
$329.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

OS Engine MAX 46AXII w/E-3071 Silencer

Designed to succeed the original 46AX, the new 46AX MkII retains the same mounting dimensions, but O.S. have updated the styling to bring it into line with the current range of AX engines. That means the introduction of the highly efficient and unique cooling fins to keep temperatures under control while the precision carburettor, with its angled needle valve keeping fingers safely away from the propeller disc, offers the linear response across the entire rpm range that you would expect from O.S. Optimised to produce its power at low rpms - and thanks to the highly effective ‘Powerbox’ silencer - the engine produces even less noise too.

Perfect for sports, aerobatic and scale applications.


ABL art
The ABL (Advanced Bi-Metallic Liner) includes one layer for better bonding, and another to reduce wear and extend life.
carb
A needle-valve extension cable and rear-angled high-speed needle maximum pilot safety and convenience.
Power Box muffler
A generously sized chamber and larger sound baffle help the Power Box muffler significantly reduce exhaust noise without compromising power. Rotatable exhaust outlet provides effective, no-cost finish protection.

  • Specifications
  • Parts Listing
  • Accessories
  • Gallery
Stock Number: OSMG0548
Displacement: 0.455 cu in (7.45 cc)
Bore: 0.886 in (22 mm)
Stroke: 0.772 in (19.6 mm)
Practical rpm: 2,000-17,000
Output: 1.63 hp @ 16,000 rpm
Weight w/Muffler: 17.1 oz (486 g)
    Engine: 13.3 oz (378 g)
    Muffler: 3.8 oz (108 g)
Includes: 40K carburetor, needle valve extension cable, #6 glow plug & E-3071 muffler
Requires: 5-20% glow fuel
Recommended Props: 10.5x6, 11x6, 11x7, 11x8, 12x6 & 12x7

Product Manual
