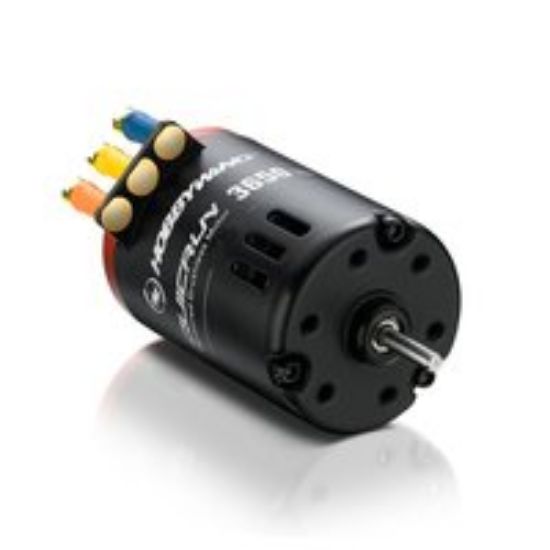

Hobbywing 30404307 QUICRUN 3650 G2 21.5T

Be the first to review this product

Manufacturer: Hobbywing

Availability: 1 in stock

SKU: 30404307

$79.90

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Built-in Hall sensor brings drivers an amazing sense of control.
Top-quality components: heat-resistant magnet, heat-resistant wires and name-brand bearings.
Dustproof design where motor leads exit.
Features a gold-plated lockable connector which can be fastened by screws, eliminating the possibility of losing connections.
Detachable structure is easy to clean and maintain, greatly prolonging the service life of the motor.

Screw Spec
a) The M3 (diameter=3.0) screws are suitable for installation of the QUICRUN-3650-SENSORED motor.
b) Depth of screw holes: QUICRUN-3650-SENSORED <= 5mm.

Motor Spec

Motor Dimension (mm): Outer Diameter 36mm Length 52.8mm
Shaft dimension (mm): 3.17mm, Length of Projecting part 15mm

Model	PN (SKU)	KV	LiPo	Resist. (Ω)	*No-load Current (A)	Max. Ouput Power	Current at the Point of M.O.P*	Weight (g)
6.5T	30404312	5750kv	2S	0.0066	4.6			194
8.5T	30404311	4560kv	2S	0.0125	3.6			186
10.5T	30404309	3600KV	2-3S	0.0183	2.8	240W	62A	186
13.5T	30404310	2850KV		0.0289	2.4	180W	50A	186
17.5T	30404306	2170KV		0.0488	16	125W	35A	186
21.5T	30404307	1800KV		0.0747	1.3	95W	28A	186
25.5T	30404308	1520KV		0.1	1.1

Note 1: Resist. = Resistance, M.O.P = Maximum Output Power.
Note 2: The maximum output power is the test value obtained when the voltage is 7.4V, and the ESC timing is set to 0 degrees.
