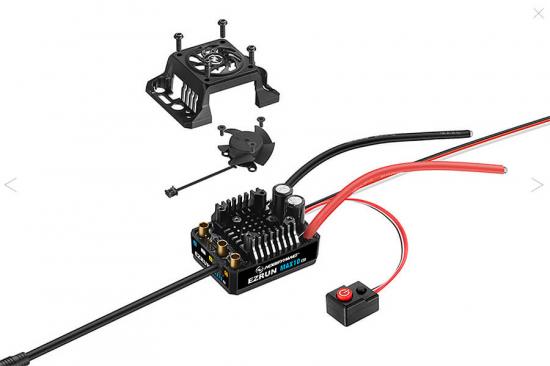

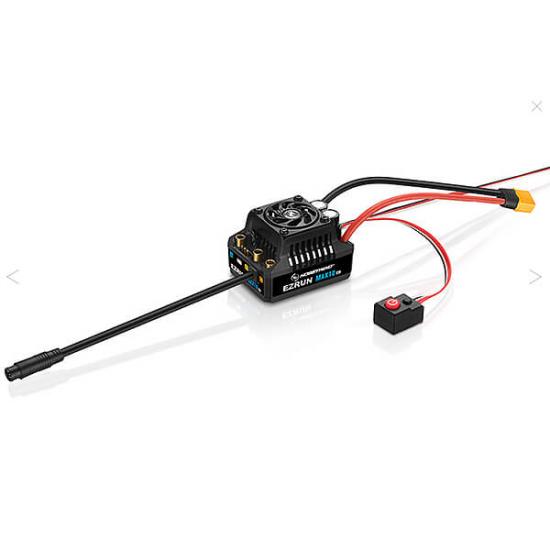

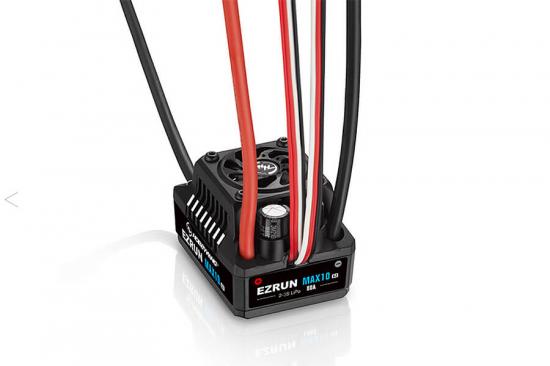

Hobbywing 30102604 Ezrun MAX10 G2 ESC Sensorless 80A, 2-3s LiPo, BCE 5A

HOBBYWING EZRUN MAX10 G2 80A SPEED CONTROL

Specifications

Type
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Waterproof: Waterproof

Specifications
Cont./Peak Current: 80A/520A
Input Voltage: 2-3S LiPo
BEC Output: 6/7.4V, 5A

Wires & Connectors
Input Wires: Red-12AWG-159=0mm*1 Black-12AWG-150mm*1
Output Wires:
Input Connectors: XT60
Output Connectors: 4.0mm Gold (Female)

Fan
Size: 25x25x10mm
Output Wires: 5-7.4V
Input Connectors: Powered by BEC

Esc Programming Via
SET Button on ESC: No
LED Program Box: Supported
LCD Program Box: Supported (G2)
OTA Programmer: Supported
Programming Port: Separate

Firmware
Firmware Upgrade: Supported

Size & Weight
Size: 53mm*39.5mm*37.2mm
Weight: 120g(w/Wires)

Applications
Applicaions: SL BL Motors / SD BL Motors Vehicles: 1/10th On-Road / Off-Road Short Course / Truck (Light-Duty)
KV Rating / T Count: With 2S LiPo: KV<6000, With 3S LiPo: KV<4200 3652 Size Motor
