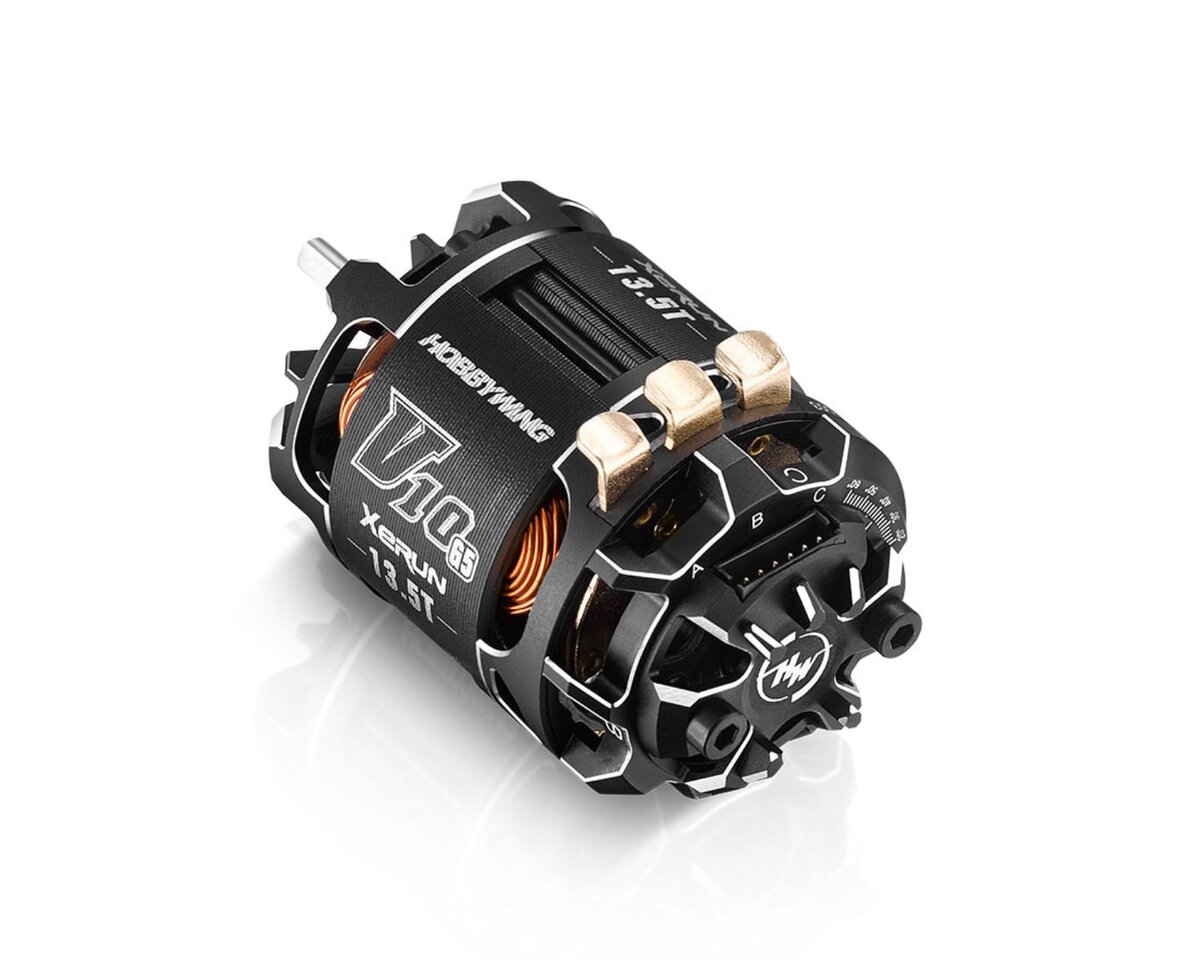

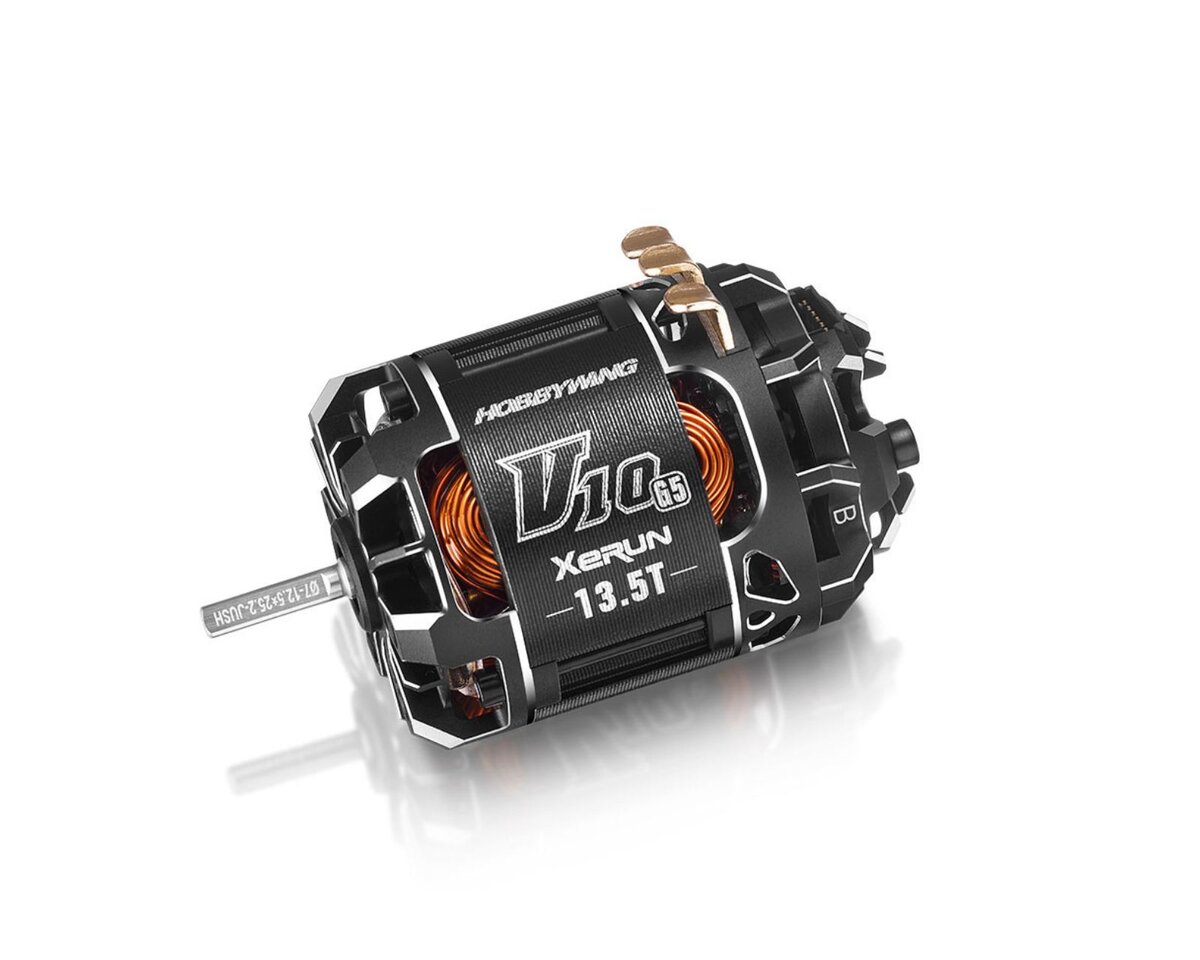

Hobbywing 30401763 XeRun V10 G5 Black Torque 13.5T 4050kV Sensored Brushless Motor

The Hobbywing XeRun V10 G5 motor represents the next stage in the evolution of competitive racing performance. The G5 has been developed from the ground up and delivers 3.9% more maximum power output as well as over 4% improvement in efficiency under heavy load compared to its already impressive predecessor, the G4R. Weighing 13 g less than the G4R, the G5 offers a noticeably more agile and responsive driving experience on the track.

Heat management has been fundamentally redesigned in the G5. A new end bell design exposes more of the motor windings, allowing heat to be dissipated more effectively, whilst a patented cooling system integrated into the rotor keeps operating temperatures consistently low for consistent performance run after run. A special coating on the rotor surface provides corrosion protection and improved magnetic properties, enabling higher load capacity and greater power output. Furthermore, the G5 features optimised weight distribution, shifting the centre of gravity closer to the centre of the vehicle and thus improving driving stability and balance.
Fine-tuning is taken to a new level with the G5: The adjustable Hall sensor timing accuracy, as well as the adjustable Hall sensor gap via three supplied spacers (0.1 mm, 0.2 mm and 0.3 mm), allow drivers to precisely adjust the Hall sensors and the feel of power delivery. The modular design allows for quick and easy disassembly for cleaning and maintenance, ensuring your motor delivers peak performance race after race.

Every single component of the XeRun V10 G5 has been redesigned to achieve the highest level of performance, efficiency, durability and precise power delivery for competitive use in stock car racing.

Technical Specifications :

• Type: Brushless / Sensored
• Poles: 2
• kV Rating: 4050kV
• Turns: 13.5T
• LiPo Cells: 1-3S
• No-load Current: 5.4A
• Outer Diameter: 35.8mm
• Length: 51.5mm
• Shaft Diameter: 3.175mm
• Weight: 138g
• Front Bearing: D9×D4×T4
• Rear Bearing: D8×D3×T4
• Recommended ESC: XeRun XR10 PRO G3 / G3X
• Application: 1/10, 1/12 scale
