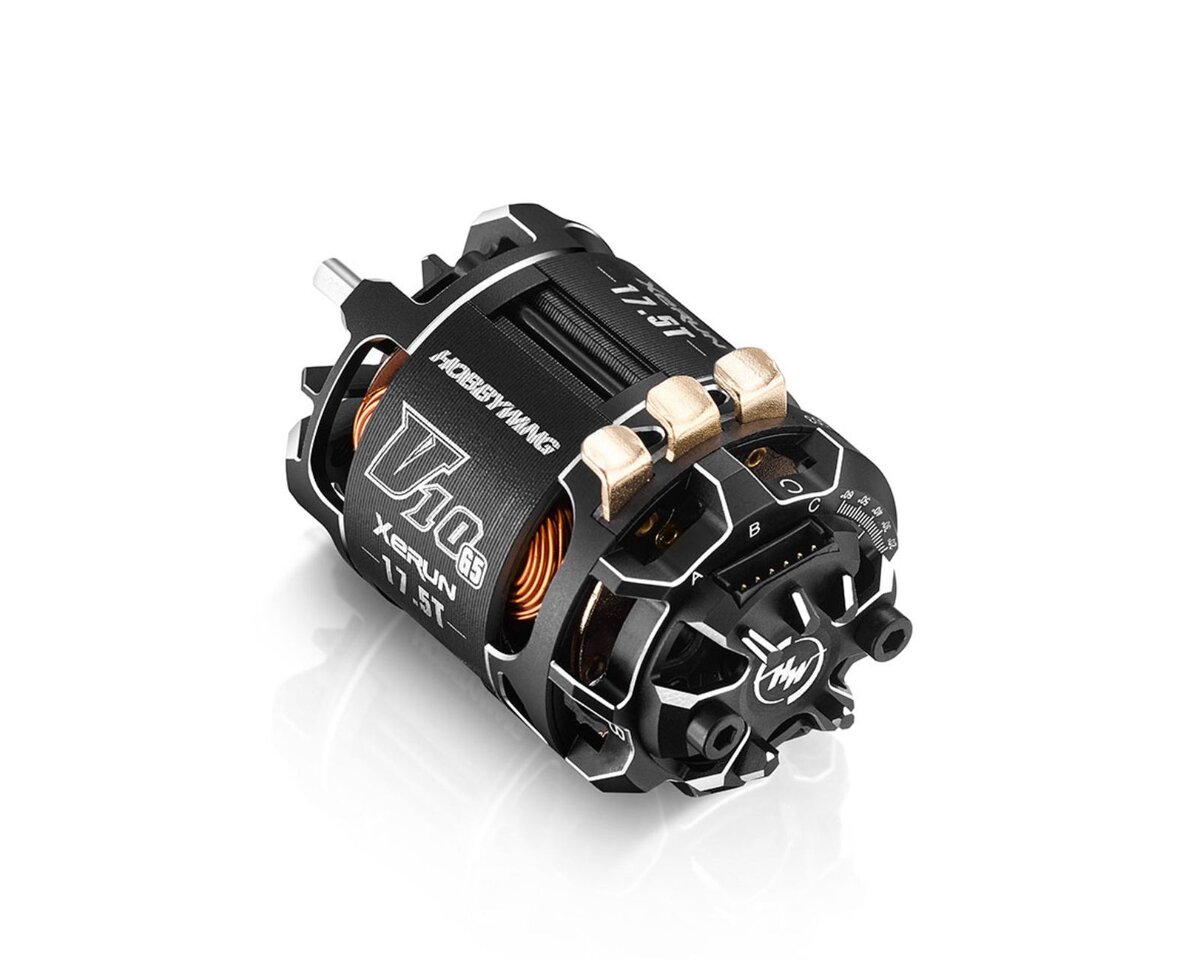

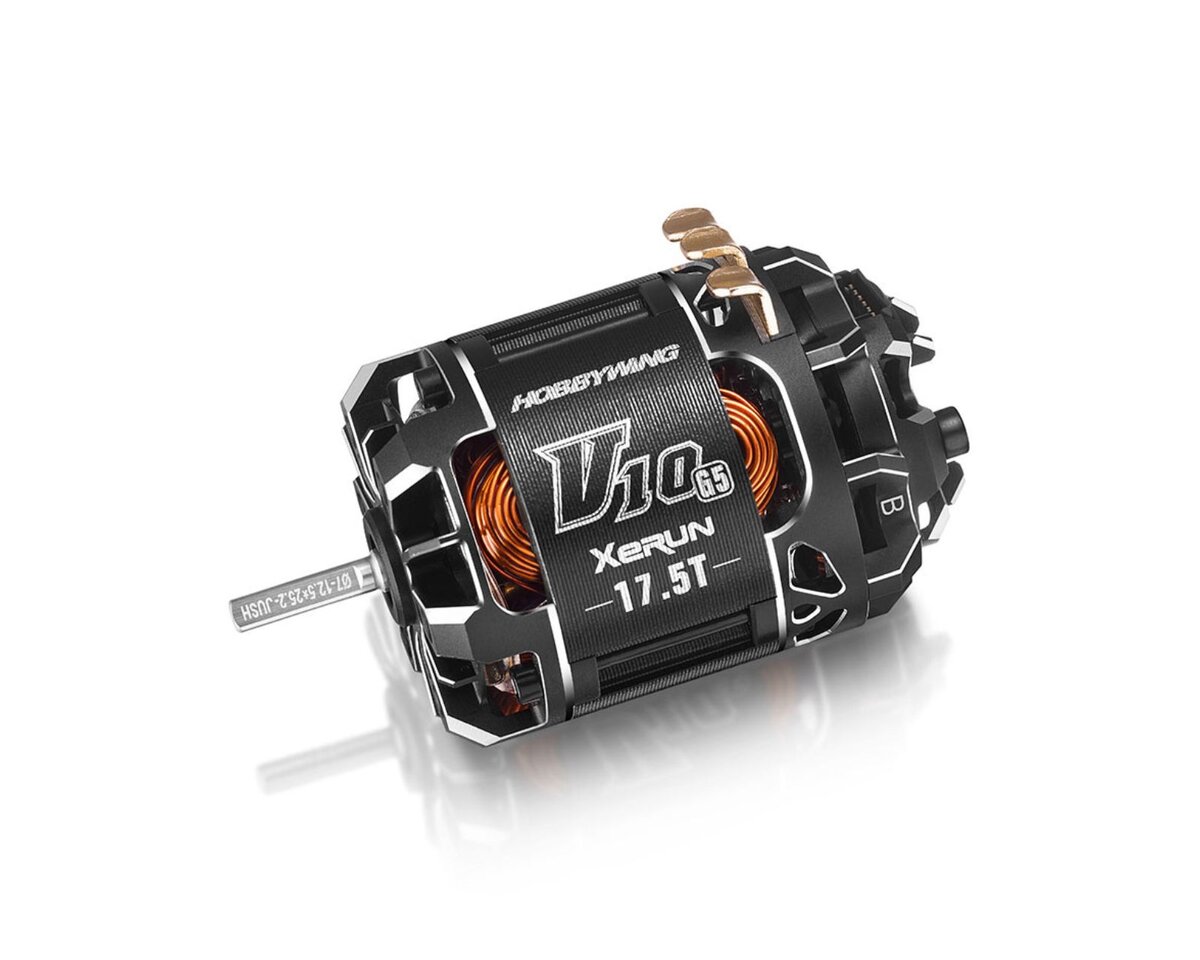

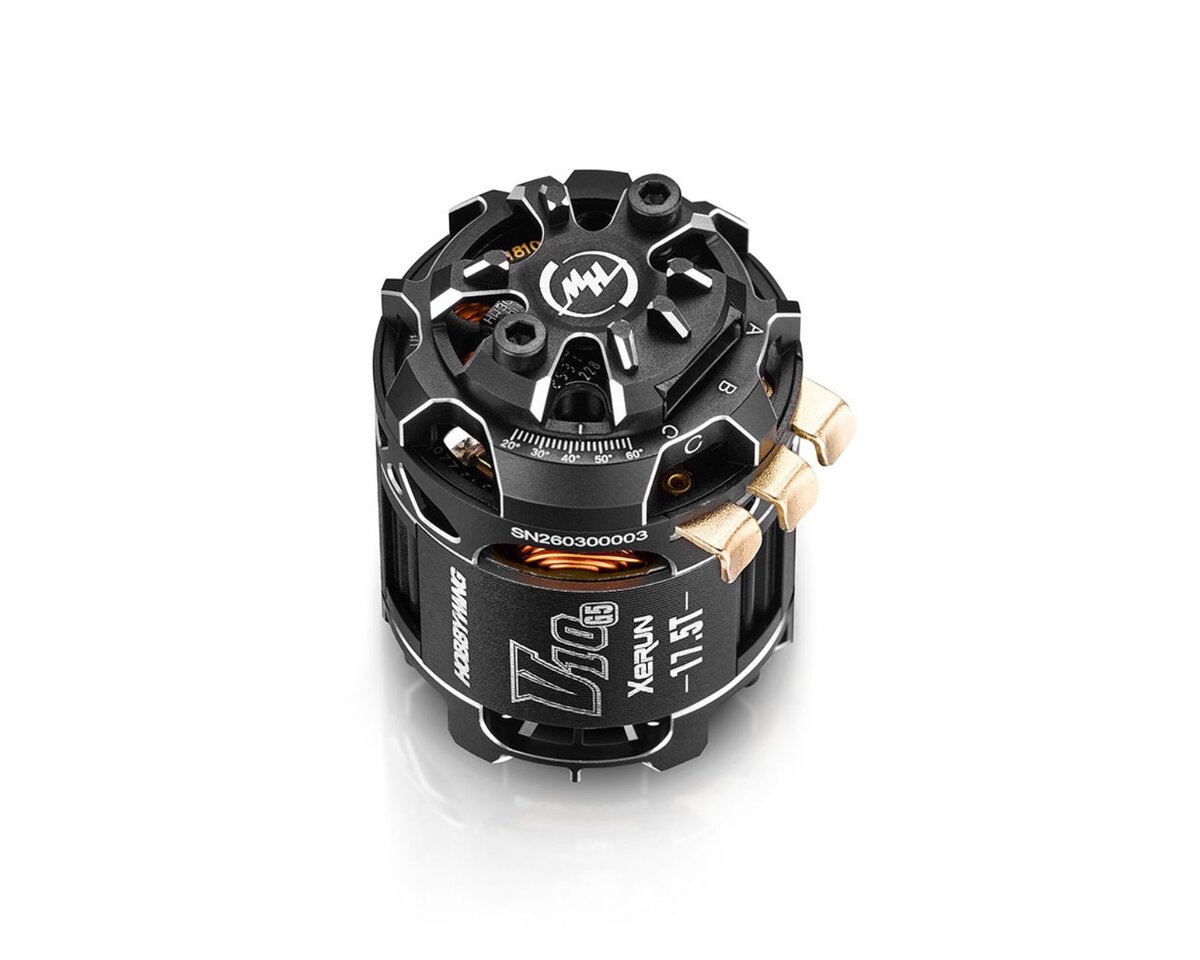

Hobbywing 30401764 XeRun V10 G5 Black Torque 17.5T Sensored Brushless Motor

The Hobbywing XeRun V10 G5 Brushless Motor represents the next evolutionary step in competitive RC racing performance. Completely redesigned, the G5 delivers 3.9% more peak power output and over 4% improved efficiency under high load compared to its impressive predecessor, the G4R. Weighing 13 grams less than the G4R, the G5 offers a noticeably more agile and responsive driving experience on the track.

Heat management has been fundamentally improved in the G5. A new endbell design exposes more of the motor windings for more effective heat dissipation, while a patented rotor-integrated cooling system keeps operating temperatures consistently low – ensuring stable performance lap after lap. A special coating on the rotor surface provides corrosion protection and enhanced magnetic properties, allowing for higher durability and increased power output. Additionally, the G5 features optimized weight distribution that shifts the center of gravity closer to the vehicle’s middle, improving stability and balance during driving.

Fine-tuning reaches a new level with the G5: adjustable hall sensor timing accuracy and adjustable hall sensor spacing through three included shims (0.1 mm, 0.2 mm, and 0.3 mm) enable drivers to precisely calibrate hall sensor difference and throttle response for optimal power delivery. Its modular construction allows for quick and easy disassembly for cleaning and maintenance, so your motor delivers peak performance race after race.

Every single component of the XeRun V10 G5 has been redesigned to achieve the highest standards of performance, efficiency, durability, and precise power delivery for competitive stock racing applications.

• Type: Brushless / Sensored
• Poles: 2
• Turns: 17.5T
• LiPo Cells: 1-3S
• Outer Diameter: 35.8 mm
• Length: 51.5 mm
• Shaft Diameter: 3.175 mm
• Weight: 138 g
• Front Bearing: D9×D4×T4
• Rear Bearing: D8×D3×T4
• Recommended ESC: XeRun XR10 PRO G3 / G3X
• Application: 1/10, 1/12 scale
