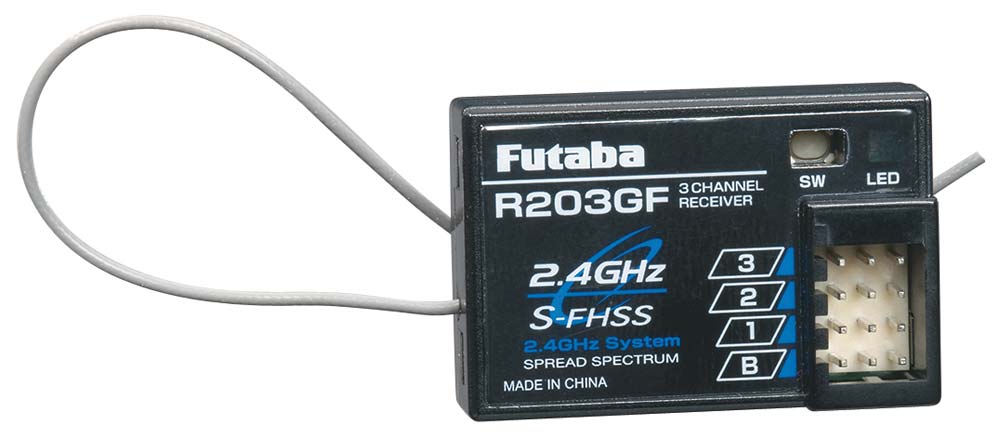

Futaba R203GF 2.4GHz 3CH Surface Receiver

This is a Futaba R203GF 3-Channel 2.4GHz S-FHSS Receiver, and is intended for use with the Futaba 2PL and 3PL transmitters. Futaba S-FHSS 2.4GHz receivers benefit from Futaba's patented Pre-Vision™ circuitry, which scans incoming data and corrects errors before they can become problems. They sync perfectly with Continuous Channel Shifting, handling hundreds of frequency changes per second with flawless precision. Plus, they all offer the Easy-Link™ advantage — the feature that allows the receiver to “learn” the transmitter module’s unique code with the push of a button and establish a unique, unbreakable bond between the two.

Frequency Hopping Spread Spectrum (FHSS) technology minimizes interference from other 2.4GHz systems. Easy Link prevents unwanted signal conflicts by using a special, pre-assigned ID code. High-voltage  operation.

NOTE: Not compatible with 2.4GHz FASST™ systems.

Features:

• S-FHSS/FHSS auto detection
• Normal and high-speed mode:
• Normal mode has a frame rate output of 13.63ms and accepts any type of servos or peripherals
• High-speed mode, with an output of 6.8ms, accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs
• Compatible with the Futaba 2PL and 3PL
• One year limited warranty through Hobby Services beginning at date of purchase

Specifications:
Dimensions: 26x39x10mm (1x1.5x0.4")
Weight: 0.28oz (8g)
Operating Voltage: 4.8 to 7.4V

NOTE: Not compatible with 2.4GHz FASST™ systems.
