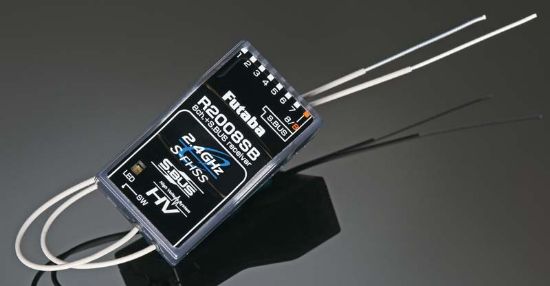

Futaba R2008SB 8-Channel 2.4GHz S-FHSS Receiver

Please Note:

there are three types of Receivers S-FHSS, FASST, FASSTest.


This receiver is on S-FHSS, so a transmitter with the FASST and FASSTest Can not use this receiver but the new Futaba 14SG is compatible with it as well as FASST and FASSTest.

Other Radio's that are compatible with it are the 8J and 10J Transmitters

Compact eight-channel FHSS/S-FHSS receiver, compatible with all FHSS and S-FHSS systems in the Futaba range. Also includes High Response mode for digital servos. Fail-safe settings are possible for all channels.

As a special feature this receiver offers an S.BUS socket for up to eight S.BUS servos or other devices, in addition to the eight PWM servo outputs.
Easy-Link button for simple binding to the transmitter. High-speed frequency hopping for highly effective suppression of interference signals.

High Intermediate Frequency (IF) of 800 MHz for immunity to general background interference.

Not recommended for large-scale models and jets.

Specification:

Frequency band 2.404 ... 2.4475 GHz
Spot frequencies 30
Channel count 8
Channel spacing 1500 kHz
Transmission system FHSS, S-FHSS
Voltage 4.8...7.4 Volt (4-5 Nx, 2 LiFe, 2 LiPo)
Current 40 mA
Dimensions 43 x 25 x 9/12.5 mm
Aerial length 14 cm
Weight approx. 9.6 g
