HSD53001 DS530M Digital Servo

● High rigidity, shock resistant metal gears.
● Coreless Motor Design for fast speed, high efficiency, and low power consumption.
● Higher signal resolution for smooth movements.
● Fast speed with high torque of 9.0kg/cm. High strength composite alloy gears with durable structure characteristics.
● Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
● Supports high voltage 8.4V.
● Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.

Specification:

● Stall torque: 6.5kg.cm(6.0V)  9.0kg.cm(8.4V)
● Motion speed: 0.085sec/60°(6.0V) 0.065sec/60°(8.4V)
● Rating voltage: DC 6.0-8.4V
● Temperature range: -20°C ~ +60°C
● Dimension: 35.1 x 15.1 x 29mm
● Weight: 36g

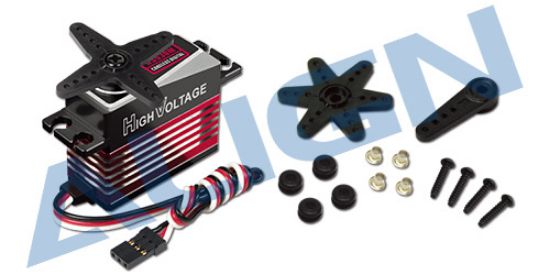

Accessories:

● DS530M Digital Servo x 1
● Servo Arm x 1
● DS515/525 Servo Arm Set x 1
● Socket Button Head Self Tapping Screw x 4(T2.6x12mm)
