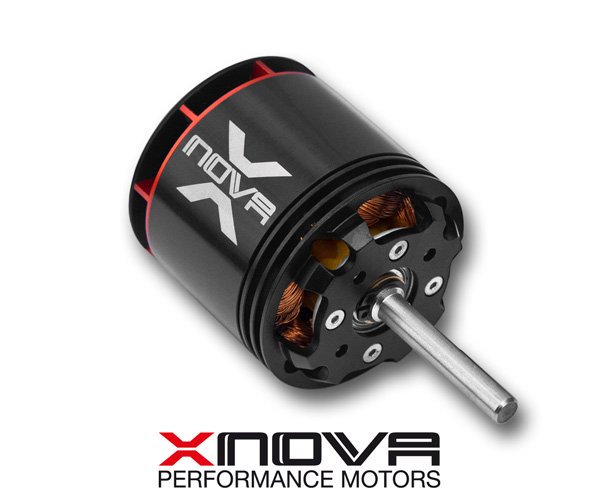

Xnova 4025-1120KV 1.5Y Brushless Motor (Shaft-B 28mm)

Shaft-B

Xnova brushless high performance outrunner motor for 500-620 size helicopters for extremely hard 3d flying on 6s. Extreme powerful motor for Goblin 570, Synergy E5 - E6, T-rex 600 or Logo 500 up to Logo 600.

1. High qual. Neodym Mag.heat res. up to 150 degree C.
2. Specialized wires,heat resistance up to 250 degree C.
3. Precise balanced.
4. High performance stator metal sheet.
5. Optimized ventilation.
6. High quality MNB bearings.
7. Marked leading high effiency up to 93.5%.
8. Superb quality and machining of CNC parts.

ESC Settings

Xnova motors are not picky about ESC settings.  Most default settings are just  fine, but there are some things to consider.

PWM Frequency:

Any setting on an ESC designated "outrunner" should not be used. Specifically, Castle Creations has added "outrunner PWM" mode. This setting may cause higher running temps on Xnova motors and SHOULD NOT be used. The default 12khz setting  is recommended. Using higher PWM frequencies will result in a cooler motor and warmer ESC. So if your ESC is undersized slightly, use a lower PWM frequency to lower ESC temperatures. If the ESC is oversized relative to the motor, then a higher PWM frequency will decrease motor temperatures slightly.

Timing:

Normal or low timing is ok for the Xnova motor on Castle Creation. You can experiment with your setup to see which mode produces the most efficient operation.

Additionally setup samples for Castle-Creation:

Xnova 40** series: 3 or even lower for timing and 12KHZ.

Xnova 4530-500KV-8D or 450KV-8D : 3 or 5 for timing and 12KHZ.

YGE:

18* for timing  ,PWM Start with 8.

P and I gain = default.

KONTRONIK:

MODE 4 AUTOTIMING (remember to reset your ESC when exchanging motors-MODE 1 then MODE 4).

Heli specific setup:

Governor setup is critical for a constant headspeed.  Too low a throttle setpoint  will overstress the entire power system.  Pulling 100A at 50% duty cycle on the  esc produces very high current ripple and high peak currents in the system.  This  reduces efficiency a great deal. For a 3D heli setup, the gearing, motor kv, and headspeed should be chosen so that at the highest power draw the ESC still has some "headroom" to operate.
