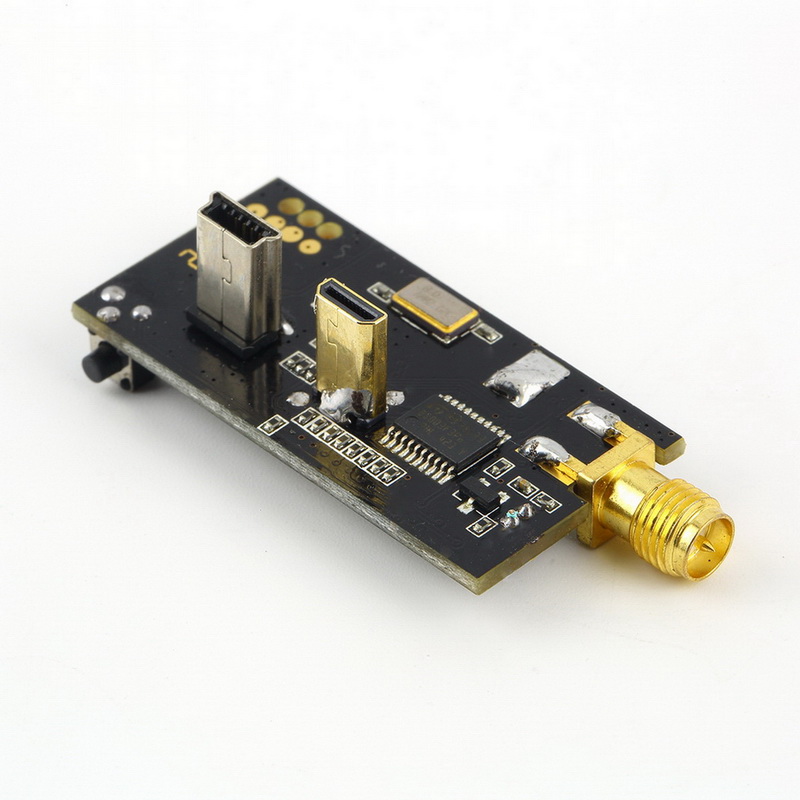

TS-250 L250 5.8G 250mW VTX FPV Transmitter for Gopro Hero3

Features:

32 frequency points

Directly connect to Go-pro Hero3 and 3+

3.7V power supply, long endurance, 500mAh/3hrs

Support external video input

Support DJI 3 axis & 4 axis holder

Long Press: press and last for 3 sec, and the band will change following A-B-E-F circulation, and CH always go to CH1 for next band. * Short Press: CH goes 1-2-3-4-5-6-7-8 and circle

Technical Data:

Model 5.8G  250mW

Frequency 5.6-5.9GHZ

Voltage Input 3.5-5.2v

Power 250mW

Current 360mA/3.7v

Work Temp. -20 to 85deg

Video Bandwidth 8M

Audio Encoder 6.5M

Connector USBVideo Connector (To Go-pro.Support Go-pro Hero3, Hero3+, Hero4 )

NW 7g

Dimension 40.8mm*21mm*8mm

Time Setting:

1. Create a text file TIMESET.txt at the root folder of the Micro SD card.

2. Open the text file and type in the current date and time in the following format: yyyy-mm-dd hh:mm:ss. For example, 2014-09-30 17:30:00

3. Save the text file, power up the camera to update time.

4. The text file will be automatically deleted when the updated is successful.

Packing List:

1x  5.8G 250mW Transmitter

1x  4 Pins Connecting Cable

1x  User Manual
