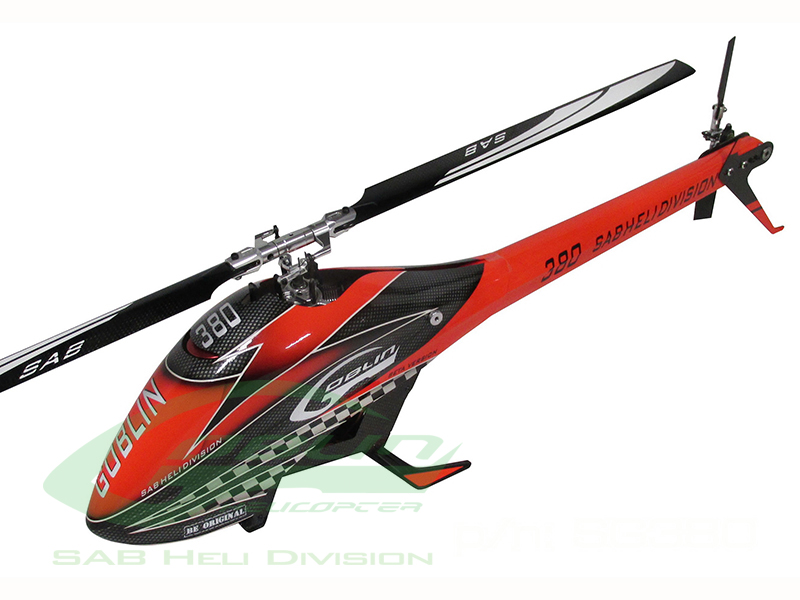

SAB Goblin SG380 380 Electric Helicopter Kit

Goblin 380

The lowest part count helicopter ever made! The Goblin 380 provides incredible performance, reliability

and simplicity with the unique and innovative Goblin look you are accustomed to!

General Specifications:

• Main rotor diameter: 856 mm

• Main blade length: 380mm

• Tail rotor diameter: 196 mm

• Tail blade length: 70 mm

• Main shaft diameter: 8 mm

• Tail shaft diameter: 5 mm

• Weight including electronics: 1075 g (excluding batteries).

Electronic Specifications:

• Cyclic Servos: Micro size 23mm

o General and 3D flight: MKS DS92A+, Savox SH-0255MG

o General and Extreme flight: BK 3001HV, SAVOX SV-1232MG, MKS HV93, MKS DS95

• Tail Servo: Mini size 35 mm

o General and 3D flight: Savox SH-1257MG, Futaba S9257

o General and Extreme flight: BK 5005HV, MKS HV9780

• Typical speed controller:

o General and 3D flight: Kontronik Koby 70, YGE 60 LV, CC Lite 75

o General and Extreme flight: Kontronik Koby 90 - Jive 80LV , YGE 90 LV, CC Lite 100

• Maximum motor size: 41 mm diameter, 41 mm height

o General and 3D flight: X-Nova 2820-890, Scorpion HK 3014-900, Quantum 2820-880

o General and Extreme flight: Kontronik Pyro 380-9, X-Nova 3220-935,

Scorpion HK 3020-1000, KDE 500XF-950.

• Battery compartment: 44x44x130mm

o 6S 1500/2600 mAh. For perfect 3D flight 6S-1800 mAh
