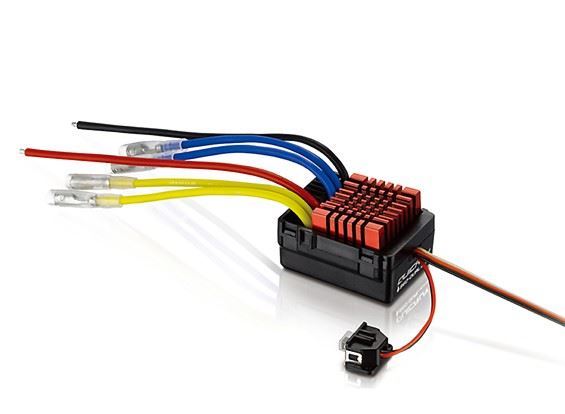

Hobbywing 30120300 QuicRun WP 860 Dual Brushed 60A ESC

As a simple, robust ESC for brushed motors in cars, trucks, crawlers tanks or boats the Hobbywing QuicRun WP 860 dual brushed ESC is a hard act to beat!

With 4 running modes (forward/brake/reverse, forward/brake, rock crawler and boat) accessed via jumpers, a built-in switch mode BEC with a maximum output of 5v at 6A and capable of running 2 brushed motors simultaneously, this is a truly versatile ESC.

The ESC is supplied with an optional 5v cooling that can be fitted on the top of the anodized heat sink if required.

Add to that a waterproof case and you've got a go-anywhere unit that takes the rigours of everyday use in its stride.

Features:
• Multi-purpose brushed ESC
• Twin motor capable
• 4 Running modes (forward/brake/reverse, forward/brake, rock crawler and boat)
• Simple operation
• Dust and waterproof
• 360A peak current
• Built in BEC
• Built in capacitor module
• Automatic throttle calibration
• Low voltage cut-off/thermal/signal loss protection
• Supplied with cooling fan

Specs:
Type: Brushed ESC
Recommended motor size: 540/550/775
Input: 7~17v (2-4S LiPo/6-12 Cells NiMH)
Continuous current: 60A
Peak current: 360A
BEC Output: 5v/3A
Fan size: 25 x 25 x 10mm
Fan voltage: 5~7.4v (supplied from BEC)
Wire size: 16AWG (150mm input/100mm output)
Motor connectors: 4mm Bullet
Dimensions: 46 x 36 x 26.3mm
Weight: 73g
