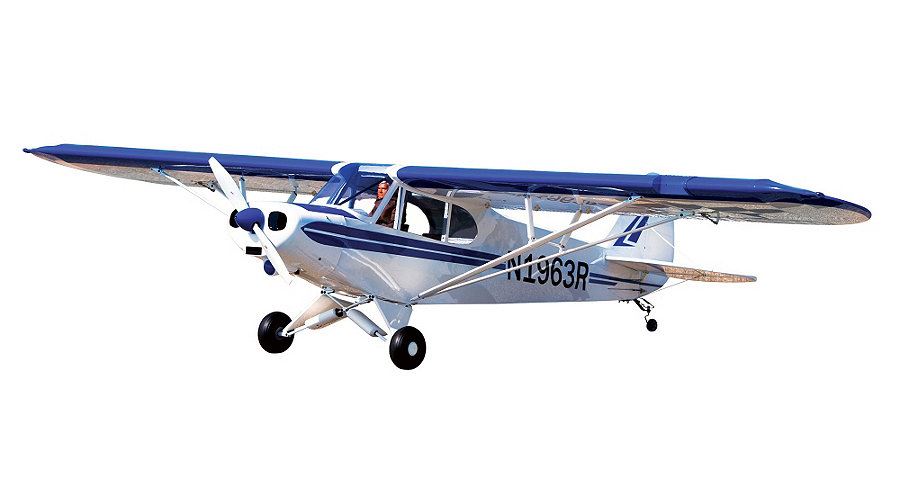

Hangar 9 HAN4540 1/4 Scale PA-18 Super Cub ARF

• Functional, bungee-type suspension on main gear
• Functional flaps
• Folding wing struts for easy transport
• Full-body pilot figure included
• Functional cockpit door
• Realistic Super Cub wheels
• Scale, painted aluminum spinner
• Painted fiberglass cowl with molded panel lines
• Realistic instrument panel
• Float-ready—hard points for mounting the Hangar 9^® ¼-scale Cub float kit (sold separately) are already built into the fuselage
• All hardware included

Internal Combustion
- 5+ channel Transmitter and Receiver radio system
- (8) standard digital servos
- Receiver pack
- Engine
- Propeller

Electric Power
- 5+ channel Transmitter and Receiver radio system
- (7) standard digital servos
- Motor
- ESC
- Propeller
- Motor battery

Specs

Assembly Time:   15-20 Hours
Control Throw (Ailerons):   Low: 3/4 in (19mm) up, 9/16 in (14mm) down; High: 1 in (25mm) up, 7/8 in (21mm) down; 20-25% expo
Control Throw (Elevator):   Low: 1-5/16 (33mm) up/down; High: 1-3/4 in (45mm) up/down; 20-25% expo
Control Throw (Flaps):   Mid/takeoff: 1-1/8 in (29mm); Landing: 2-5/8 in (67mm)
Control Throw (Rudder):   Low: 1-3/4 in (45mm) right/left; High: 2-3/8 in (60mm) right/left; 25-30% expo
Flaps:   Yes
Flying Weight:   16.5-18.5 lb (7.5-8.4 kg)
Is Assembly Required:   Yes
Main Wing Tube Length:   32 in (813mm)
Main Wing Tube OD:   3/4 in (19mm)
Recommended Environment:   Outdoor
Recommended Motor Battery:   8S or 9S 5000mAh Li-Po pack
Recommended Receiver Battery:   2700mAh 6.0V NiMH pack
Retracts:   No
Spinner Size:   2.5 in painted CNC spinner (included)
Wing Loading:   23.5-26.2 oz/sq ft
Wingspan:   106 in (269 cm)

Back country airstrips, remote mountain lakes, alpine glider ports – wherever adventure requires wings, chances are the Piper Super Cub is there. Introduced in 1949, its rugged construction, impressive payload and marvelous short-field performance quickly made it a mainstay of the bush flying fleet. Even now, over half a century later, it remains the plane of choice for many who follow the road less traveled.

This beautiful, 1/4-scale ARF of the Super Cub has been expertly modeled in stunning detail. Almost every line and curve mirror the real thing, right down to the shape of the fillet where the fuselage meets the vertical stab. Other scale touches include functional bungee-type landing gear, a realistic instrument panel and a full-body pilot figure.

This same attention to detail has been applied to the flight performance. Like the full-scale version, the model has functional flaps that give it amazing short-field takeoff and landing abilities. It also possesses the same easy-going flight characteristics, but will eagerly perform sport aerobatics using any of the recommended power choices.
