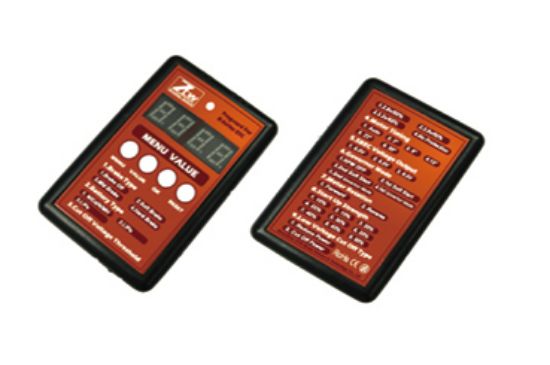

ZTW LED Program Card B

Compatible with B series ZTW ESCs only

1.Specification
1.1 Size : 70*45*13mm(L*W*H)
1.2 Weight : 23g
1.3 Suitable ESC : B-Series ESC for Air

2.Programable Items
2.1 Battery Type :(1) NiCd/NiMH (2) LiPo Battery (3) LiFe Battery
2.2 Brake : (1) Brake Off (2) Soft Brake (3) Mid Brake (4) Hard Brake
2.3 Motor Timing : (1) 2� (2) 8� (3) 15� (4) 22� (5) 30�
2.4 SBEC Voltage Output : (1) 5.0V (2) 5.5V (3) 6.0V
2.5 Cut Off Voltage Threshold : (1) 2.8V/50% (2) 3.0V/60% (3) 3.2V/65% (4) No Protection
2.6 Low Voltage Cut Off Type : (1) Reduce Power (2) Cut Off Power
2.7 Motor Rotation : (1) Positive (2) Reverse
2.8 Governor Mode : (1) Rpm Off (2) Soft Start1 (3) Soft Start2 (4) Governor Mode1 (5) Governor Mode2
(5) Governor Mode
2.9 Soft Acceleration Starts Ups : (1) 10% (2) 15% (3) 20% (4) 25% (5) 30% (6) 35% (7) 40%
(8) 45% (9) 50%
