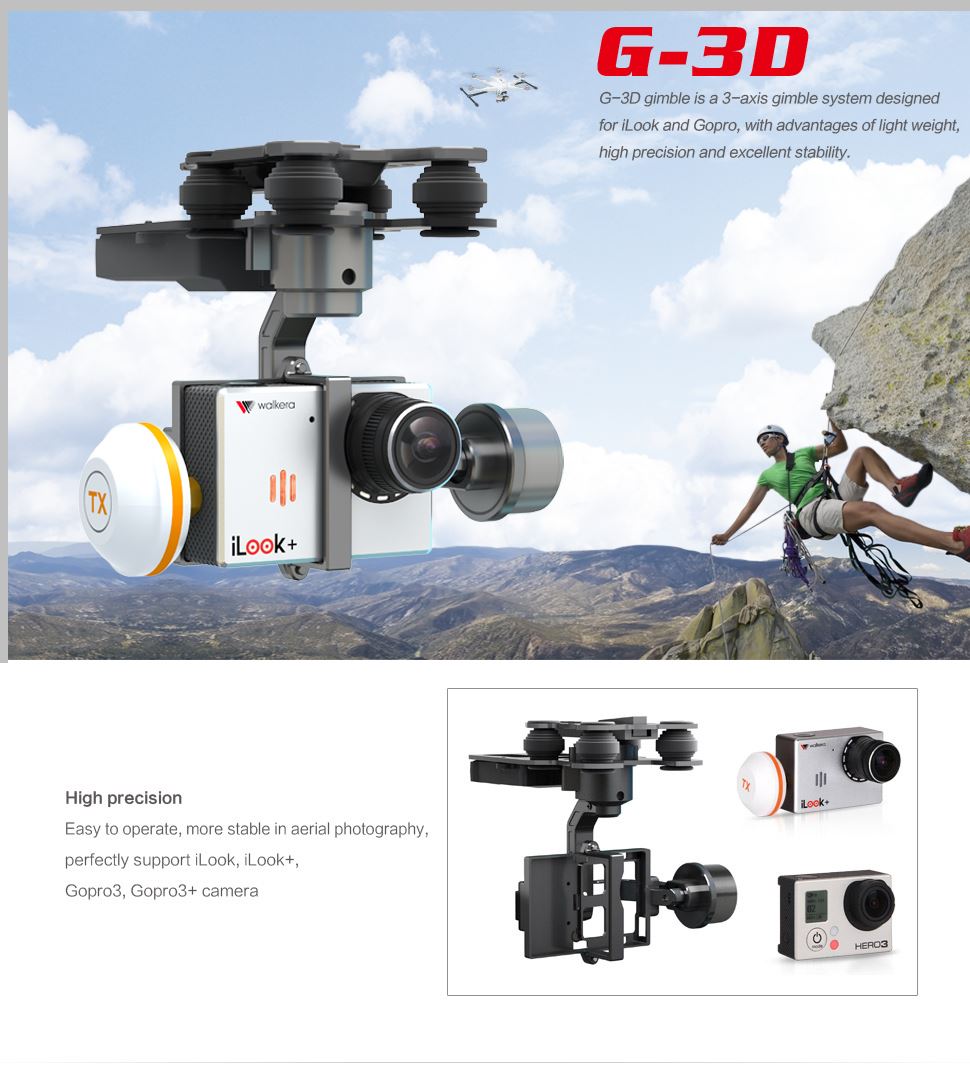

WALKERA QR-Z-3D G-3D 3D GIMBAL

Features:

• More easy, more stable, more accurate
• Smart design and aluminium alloy body
• Direct driving brushless motor control and various control angles
• Seamless support for iLook, iLook+, GoPro 3 and GoPro 3+
• Support iLook, iLook+, GoPro series camera video auxiliary output
• Support power supply voltage compensation
• Support the motor drive end short circuit protection
• Support initial tilt and roll angle custom
• Support stick position mode and rate mode
• Support regular receiver
• Support online firmware upgrade (UP02 and UP02 adapter required)

Specification:

• Operating voltage: DC 7.4V - 28V (recommended 12V, 3S Li-Po battery)
• Operating current: 500mA - 600mA (depends on the voltage supplied and motor power)
• Operating temperature: -15°C - 65°C
• Sensor: 3-axis MEMS gyro and 3-axis MEMS accelerometer
• Control accuracy: 0.02°
• Angle control range: -135° - 90°(tilt); -45° - 45°(roll)
• Applicable camera: iLook / iLook+ / GoPro series
• Weight: 188g (without camera)
• Dimension: 114.3*97.5*106.6mm
• Box dimension: 150*127*98mm

NOTE: iLook, iLook+ or GoPro camera is not included
