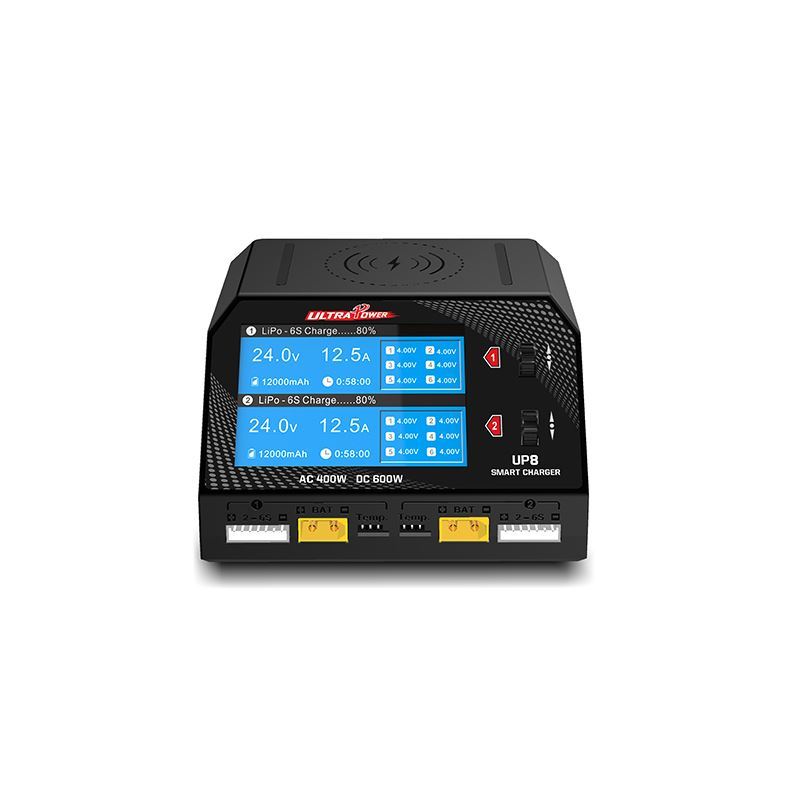

Ultra Power UP8 DC600W/AC400W, 16A Smart Dual Channel AC/DC Charger

Special Features:

1. Two independent shuttle key control the charger.

2. Wireless charging port, support to charge at Max.10W.

3. Support testing the servo and motor.

4. Support external discharging at Max.200W,15A.

5. Support power distribution both in AC and DC mode.

6. With a USB port: 5V/2.1A.



Spezifikation

Input voltage:AC 100-240V, DC 9.0-30.0V

Output voltage: 0.1-30V

Charge power: AC 400W/ DC 600W (Support power distribution)

Wireless charge power: Max. 10W

Discharge power: CH1: 8W/200W(External

discharge mode) CH2: 8W

Charge current: 0.1-16.0A x 2

Discharge current: CH1: 0.1-3.0A/0.1-15.0A(External discharge mode) CH2: 0.1-3.0A

LiPo/LiHV/LiIon/LiFe cell count: 1-6 cells

NiCd/NiMH battery cell count: 1-16 cells

Pb battery voltage: 2V-24V (1-12 cells)

Balance current: Max. 1000mA/cell

LCD Screen type: 3.5〃480×320 LCD

Weight: 780g

Dimensions: 125x119x76mm
