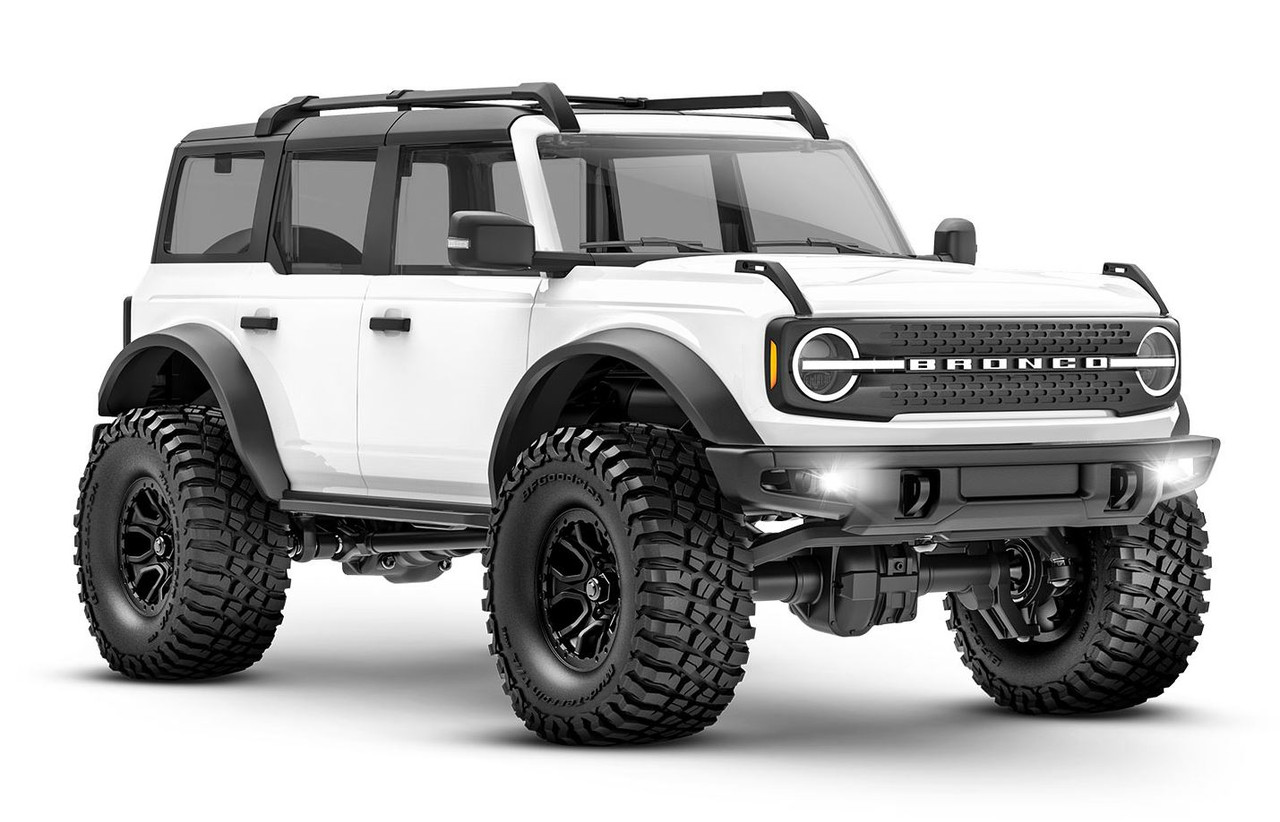

Traxxas TRX97074-1WHT TRX-4M 1/18 Scale Bronco- White

TRX-4M QUICK DESCRIBTION

Introducing the TRX-4M, a new way to experience all the fun, adventure, and scale realism of the TRX-4 in a 1/18 platform.
The TRX-4M bridges the gap between the 1/24 crawler scene and 1/10 scale quality and performance. Oil-filled shocks, steel
frame rails, and powerful running gear give it superior capability anywhere you want to drive, inside or outside.

The larger 1/18 size allowed Traxxas engineers to pack the TRX-4M with more innovation and performance. Larger tires, higher
ground clearance, bigger axles, and a powerful motor work together for huge leaps in rugged capability. The innovative suspension
geometry lets TRX-4M turn around and maneuver in a fraction of the space required by smaller 1/24 rigs. Bouncy, undamped
springs are replaced with silky-smooth oil-filled shocks. Beautiful scale details are clearly visible.

The TRX-4M is designed to excel everywhere there’s a fun path to drive. The smooth throttle response, high-torque motor, and
30% tighter steering radius allow the TRX-4M to easily take on indoor crawling scenes and precisely thread the needle through
narrow gates. Outside, the larger wheels and tires and high ground clearance let drivers test their skills over challenging rocks
and terrain. Adventure awaits on the trails as the higher top speed lets TRX-4M explore at a faster pace

OIL-FILLED GTM™ SHOCKS
The TRX-4M rejects the status quo of tiny, bouncy, imitation
shocks and instead performs with the plush, long travel
suspension feel from new GTM oil-filled shocks

DETAILED ABS BODY WITH CLIPLESS MOUNTING
Innovative Traxxas clipless body mounting is a game-changer for ease of
use and scale appearance. The body removes and installs in just seconds
with no clips to lose or frustrating hook and loop tabs to wrestle with.
Tough, highly detailed ABS bodies feature molded-in color with a deep
glossy finish that won’t chip or scrape off.

WATERPROOF ELECTRONICS
Wet grass, puddles, and streams that force all the
others to turn around are no problem for reliable
Traxxas waterproof electronics

HEAVY-DUTY STEEL LADDER FRAME
TRX-4M performs like a full-size crawler because it’s built like one.
A rigid steel ladder frame virtually eliminates flex to put more power to the
ground. The heavy-duty driveline soaks up the motor’s torque with ease, sending
power to all four wheels through spool-equipped axles

DRIVING PROGRAMS
Select from one of three custom-tuned drive modes using the EZ-Set button:

• Sport Mode provides full forward and reverse speed with brakes
and no automatic drag brake.
• Trail Mode is the default mode on the TRX-4M. It is like
Sport Mode but adds smooth drag braking at neutral for control
on steep descents.
• Crawl Mode applies full brakes the instant the throttle is
released and allows drivers to continue through to reverse without
a second push on the trigger. Crawl mode is perfect for that
smooth scale look while creeping over technical terrain.

TITAN 180 MOTOR 87-T

The big Titan 180 motor delivers rugged, dependable, go-anywhere
power no 1/24 scale can match. It lays down the torque on the rocks
and cranks up the speed on the trails for all-day driving fun.

• Low-speed torque for technical obstacles
• Fast speed to keep pace as you walk alongside
• Mounts securely with a fixed gear mesh that never needs adjustment
• Mounting position shifts the weight bias forward for improved crawling dynamics

HEAVY-DUTY STEERING SERVO

TRX-4M’s heavy-duty 2065T waterproof servo operates on full 6-volt power for maximum
steering authority. A metal main gear delivers exceptional durability and smooth, precise
control. The ECM-2.5 uses a standard servo plug for easy upgrades

Waterproof
• Heavy-duty metal main gear
• Conventional spline design with servo horn
• Sub-micro 2065 servo dimensions

BATTERY AND CHARGER INCLUDED

TRX-4M’s 2-cell LiPo battery provides over an hour of runtime with
Traxxas iD safety and simplicity. The specially-designed iD connector
plugs directly into the ECM-2.5.

2s LiPo Battery with iD

• Large 750mAh capacity provides over an hour of runtime
• 7.4 volts of LiPo power for exceptional performance
• Rugged, heavy gauge wiring for free-flowing power
• Keyed iD connector eliminates polarity errors

2-Amp USB LiPo Fast Charger
• Traxxas iD technology delivers the perfect charge with no guesswork
• Universal USB-A plug for convenient charging almost anywhere
• High-output: up to 2-amp charge rate
• LED progress indicator

FULL PARTS SUPPORT WITH PRO-BUILT™ ASSEMBLIES
Traxxas Pro-Built assemblies get your customers back in the action fast without tedious rebuilding. Axles and
transmissions are available as Pro-Built assemblies for simple refreshes and performance enhancements
that take only minutes to complete, no matter the installer’s skill level.

ALL POSSIBLE UPGRADES :

APPEARANCE DURABILITY PERFORMANCE :
Aluminum Diff Cover - #9732X
• Aluminum C-Hubs - #9733X
• Aluminum Steering Blocks - #9737X
• Aluminum Steering Link - #9748X
• Aluminum Lower Links - #9749X
• Aluminum Shocks - #9764X
• Pro Scale Light Kit - #9783, 9784
• Display Stand - #9794

DURABILITY UPGRADES :

• Steel Servo Horn - #9740
• Steel Lower Links - #9749
• Steel Wheel Hexes - #9750A
• Metal Center Drive Shafts - #9751X
• Heavy-Duty Outer Driveshafts - #9756
• Aluminum Shocks - #9764X
• Stainless Steel Skid Plates - #9765, 9766
• Metal Ring and Pinion Gears - #9779X
• Finned Aluminum Motor Heatsink - #9793

PERFORMANCE UPGRADES :

• Metal Gear Servo - #2065R
• Aluminum Servo Mount - #9739X
• Steel Servo Horn - #9740
• Brass Wheel Hexes - #9750X
• Metal Center Drive Shafts - #9751X
• Brass Lower Retainers - #9761A
• Aluminum Shocks - #9764X
• Brass Wheel Inserts - #9780
• Method® Beadlock Wheels - #9781
• Mickey Thompson® Tires - #9782
• Low-Range Transmission - #9791R

PRO SCALE® LIGHTING
Scale lighting adds an extra layer of fun and good looks. The latest generation of Pro Scale lighting combines with
the built-in functions of the ECM-2.5 for an easy and rewarding installation. Headlights, tail lights, brake lights,
reverse lights, and hazard lights all work precisely with the driver’s inputs. The new point-to-point LED wiring bus
makes the install in the body as simple and clean as possible.

Heavy-Duty Center Driveshafts
• Low-CG Battery Placement
• Hex-Drive Hardware
• Full Line of High-Quality Accessories
• 1/18 Versatility and Capability
• Oil-Filled Shocks
• Class-Leading Turning Radius
• Clipless Body Mounting
•Waterproof Electronics
• Heavy-Duty Steel Frame Rails
• High-Capacity 2-Cell LiPo Battery with iD®
• 2-Amp USB iD® Fast Charger
• Heavy-Duty Steering Servo
• Built-in Pro Scale® Lighting Capability
• Licensed ABS Bodies
• All-In-One ECM-2.5™ Control Module
• Three Drive Modes
• Powerful Titan® 180 87T Motor
• LED Bumper Lights
• Full-Featured TQ™ Transmitter
• 4-Link Front & Rear Suspension
• High-Performance Tires
• Detailed Wheels
• Front and Rear Spools
