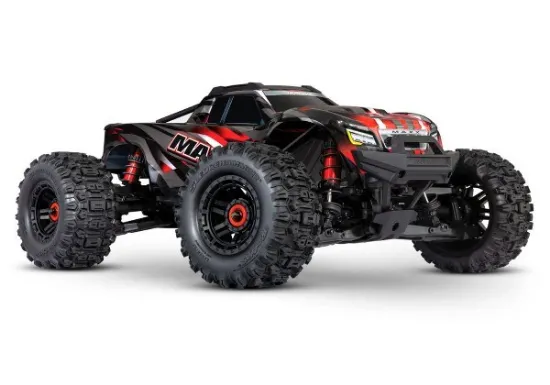

Traxxas 89086-4 1/10 Maxx with Widemaxx RTR- Red

The Traxxas X-Maxx^? is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx^? expertly packages X-Maxx?s innovative design elements and jaw-dropping strength into a lighter, more compact, even more, ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer^? tires, and that incredible WideMaxx^? stance for even more intense action. Let the fun begin!

What?s In The Box:

• Maxx, Ready-To-Race^? model with Traxxas 540XL brushless motor
• VXL-4s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi^? 2.4GHz radio system
• High quality maintenance tools

What You?ll Need:

• LiPo Battery

  Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.

• LiPo Balance Charger with iD^?

  Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.

Specs:

Motor Specs:

ESC Specs:

Features List:

• VXL-4s^? Waterproof Electronic Speed Control
  • 3S?4S LiPo compatible
  • Built-in cooling fan
  • Real-time telemetry via Traxxas Link^?
  • Machined heat sinks
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights
  • Waterproof
• Velineon^? 540XL Brushless Motor
  • Long format brushless motor
  • 4-pole 2400 kV
  • 5mm output shaft
  • Aluminum heat sink
  • Cooling fan
• 55+ MPH out of the box using single 4S LiPo battery (sold separately)
• 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
• Traxxas Stability Management^?
  • Helps prevents spinouts and loss of control
  • Adjusts from off to 100% assistance from the transmitter
• TQi^? 2.4GHz High Output Radio System
  • TQi^? 2.4GHz transmitter
  • Traxxas Link^? enabled
  • TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models?just switch on and drive, ?model selection? is not required
  • Multi-Function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • High 13ms frame rate and near-zero latency for responsive control
  • Telemetry-ready 5-channel micro receiver
• Clipless Body Mount System
  • Quick one-hand installation and removal
  • Uses pivoting rear latch mechanism
  • Eliminates body posts and clips
  • Reinforced for extra protection against tearing
• Drivetrain
  • Full-time shaft-driven 4-wheel drive
  • Torque-Biasing Center Drive^? absorbs shocks and distributes power
  • 17mm keyed wheel hex with 5mm nut
  • Sealed, silicone fluid-filled diffs with large module ring and pinion gears
  • Heavy-duty Cush Drive^?
  • Extreme-duty telescoping driveshafts
  • Splined aluminum center driveshaft
• Secure Motor Mounting System
  • Precise, fixed gear mesh adjustments
  • Motor retention separate from gear mesh
  • Full-length motor cradle
• New Modular Composite Chassis
  • Extended modular chassis design interlocks with front and rear bulkheads
  • Absorbs and distributes impact energy
  • Easy to service and access components
  • Driveline is sealed in the chassis to keep out dirt and grit
• Easy Battery Access
  • Extended battery tray accepts Traxxas? largest 6700mAh 4-cell LiPo battery
  • Battery is protected deep in the chassis
  • Battery hold-downs pivot for easy access
  • More secure than conventional retention systems
• Heavy-Duty Steering Bellcranks and Servo
  • Large-scale high-output steering servo
    • 285oz-in of torque
    • 0.18 sec transit speed
  • Triangulated mounting system to fully support case
  • Heavy-duty double-shear bellcranks
• Suspension
  • WideMaxx^? double-shear suspension arms
  •

    • 1.57? (40 mm) wider for improved handling
    • Tough new composite formula resists impact damage, even in cold weather
  • Engineered to optimize suspension travel and steering angles
  • All critical suspension points have double shear strength
  • Steel pivot balls
  • C-hub and steering block geometry maximizes steering angle
  • Fixed, high-strength camber and toe links
  • Steel upper and lower tie bars
  • Full contact sealed bearings used throughout driveline
• GT-Maxx^? Shocks
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Large-diameter damper shaft
  • Lower seal cartridge with dual X-rings
  • Adjustable upper spring retainer
  • Plastic shock caps with pivot balls
  • Lower spring perches bolted on
• Bumpers
  • Tough energy absorbing front and rear bumpers
  • Lower front and rear skids for impact and abrasion resistance
  • Integrated nerf bars for side impact resistance
  • Wheelie bar with integrated carry handle
• Wheels/Tires
  • Tough 2.8? wheels with keyed 17mm hex receptor
  • Sledgehammer^? extreme tires for sure-footed traction
  • 1-piece foam inserts
  • Pre-glued and ready for action
  • TSM^? rated

MODEL 89086-4: Maxx: 1/10 Scale Monster Truck. Ready-To-Race^? with TQi^? 2.4GHz radio system with Traxxas Stability Management^?, Self-Righting, and VXL-4s ESC
