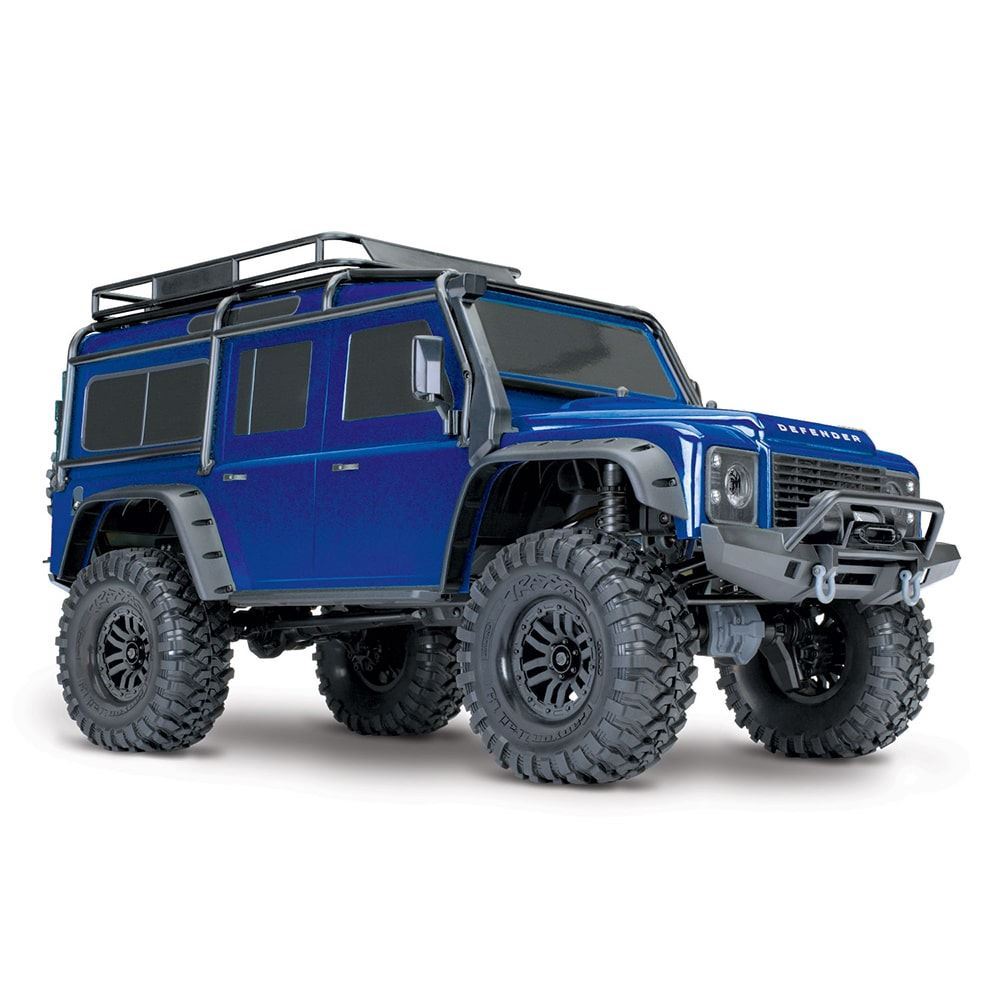

Traxxas 82056-4 -B TRX-4 Scale & Trail Defender Crawler RTR Blue

The Traxxas TRX-4 Scale and Trail Crawler is an all-new Traxxas design that is loaded with innovation that instantly obsoletes the status quo with exciting new features, versatility, and capability. In other words, we built it the Traxxas way, rugged, powerful, and ready for fun!

Underneath the authentic scale look is a machine built for extreme off-road capability that takes you to new places and new adventures. Exclusive portal axles deliver maximum ground clearance that dramatically turns “no way” into “no problem.” Whether you are enjoying outdoor trails or getting technical on the rocks, the remote-locking front and rear differentials and high/low range transmission provide unmatched driving versatility.

• Vehicle Specs

• Motor Specs

• ESC Specs

• Features List

• What’s Included

Length:	23.07 inches (586mm)
Front Track:	9.78 inches (249mm)
Rear Track:	9.78 inches (249mm)
Ground Clearance:	3.14 inches (80mm)
Weight:	7.43lb (3.372kg)
Height:	11.48 inches (292mm)
Wheelbase:	12.75 inches (324mm)
Approach Angle:	56.49°
Departure Angle:	41.67°
Breakover Angle:	57°
Front Shock Length:	3.54 inches (90mm)
Rear Shock Length:	3.54 inches (90mm)
Front Wheels:	1.9 x 1.02 inches (49 x 26mm)
Rear Wheels:	1.9 x 1.02 inches (49 x 26mm)
Front Tires:	4.64 x 1.89 inches (118 x 48mm)
Rear Tires:	4.64 x 1.89 inches (118 x 48mm)

Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation
Transmission:	2-speed Hi-Lo, Remote Shifting
Gear Pitch:	32P
Differential Type:	4 Gear, Remote Locking
Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo
Servo:	2075X Metal Gear
Transmitter:	TQi 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	1
Battery Tray:	158.75 L x 47 W x 23/26mm H
