Traxxas 82010-4 TRX-4 Sport 4wd Unassembled Kit

Manufacturer: TRAXXAS
Availability: Out of stock
SKU: 82010-4
$649.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

TRX-4 Sport Innovation and Off-Road Capability...Now Available as a Kit!

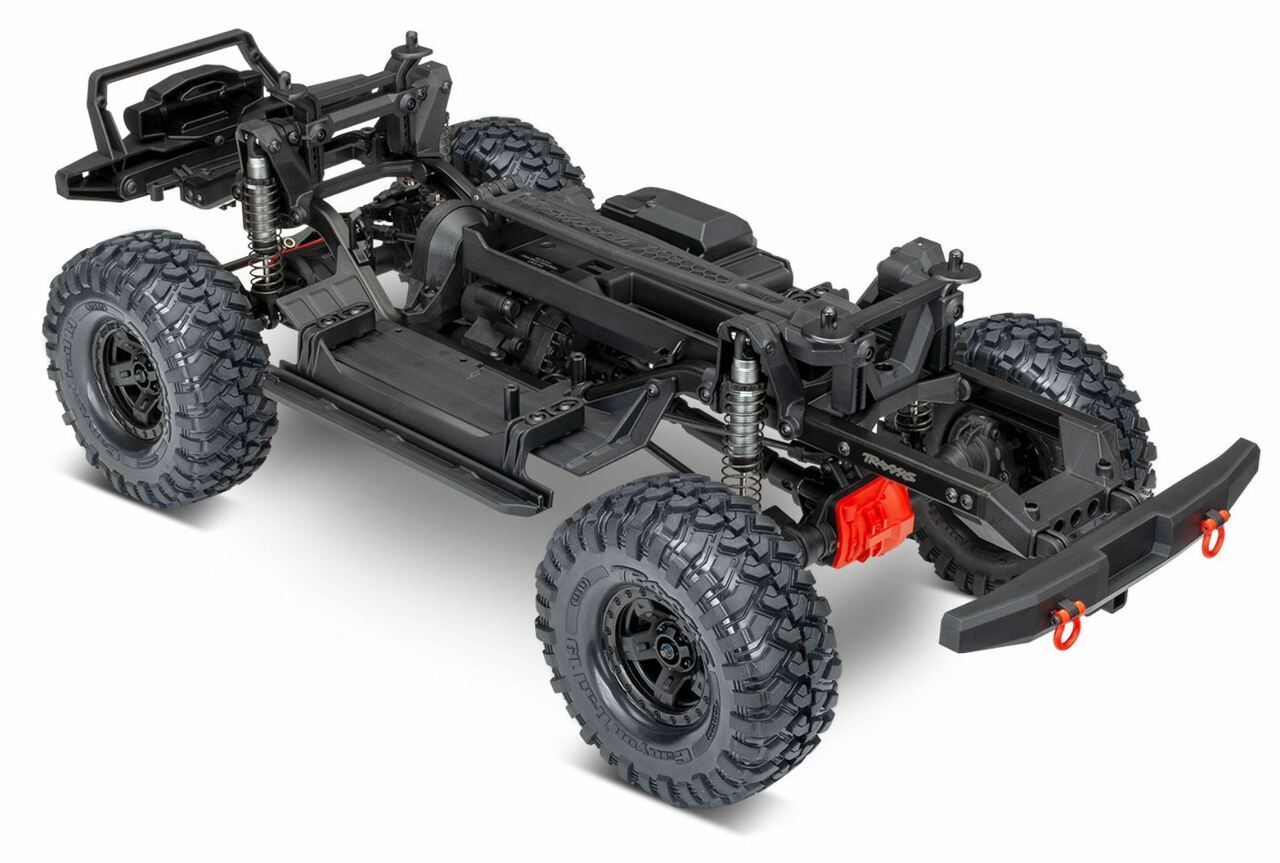

The Traxxas TRX-4 Sport is purpose built for trail-conquering RC fun with innovative technical features and rugged durability. The new TRX-4 Sport Unassembled Kit combines all the technical capability of the RTR truck, with the excitement of building your own kit. The TRX-4 Sport Kit assembles to form a roller chassis without electronics, battery, or charger. From mild to wild, enjoy ultimate build-it-yourself freedom to add your own motor, electronic speed control (ESC), servo, and radio system to the highly competent chassis. All the parts are organized neatly in labeled bags with pre-assembled shocks and suspension links. A fully illustrated color manual makes the kit as much fun to construct as it is to take off-road.

WHAT'S INCLUDED IN THE KIT?

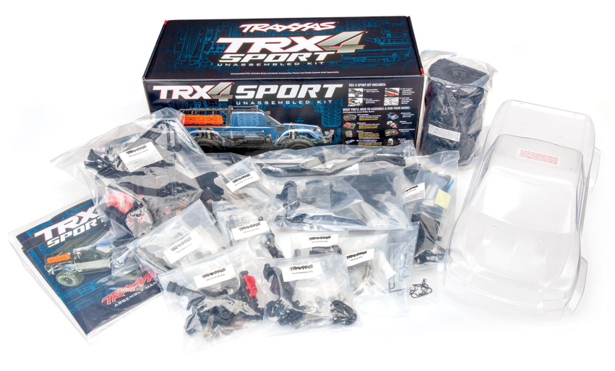

  • Unassembled Kit

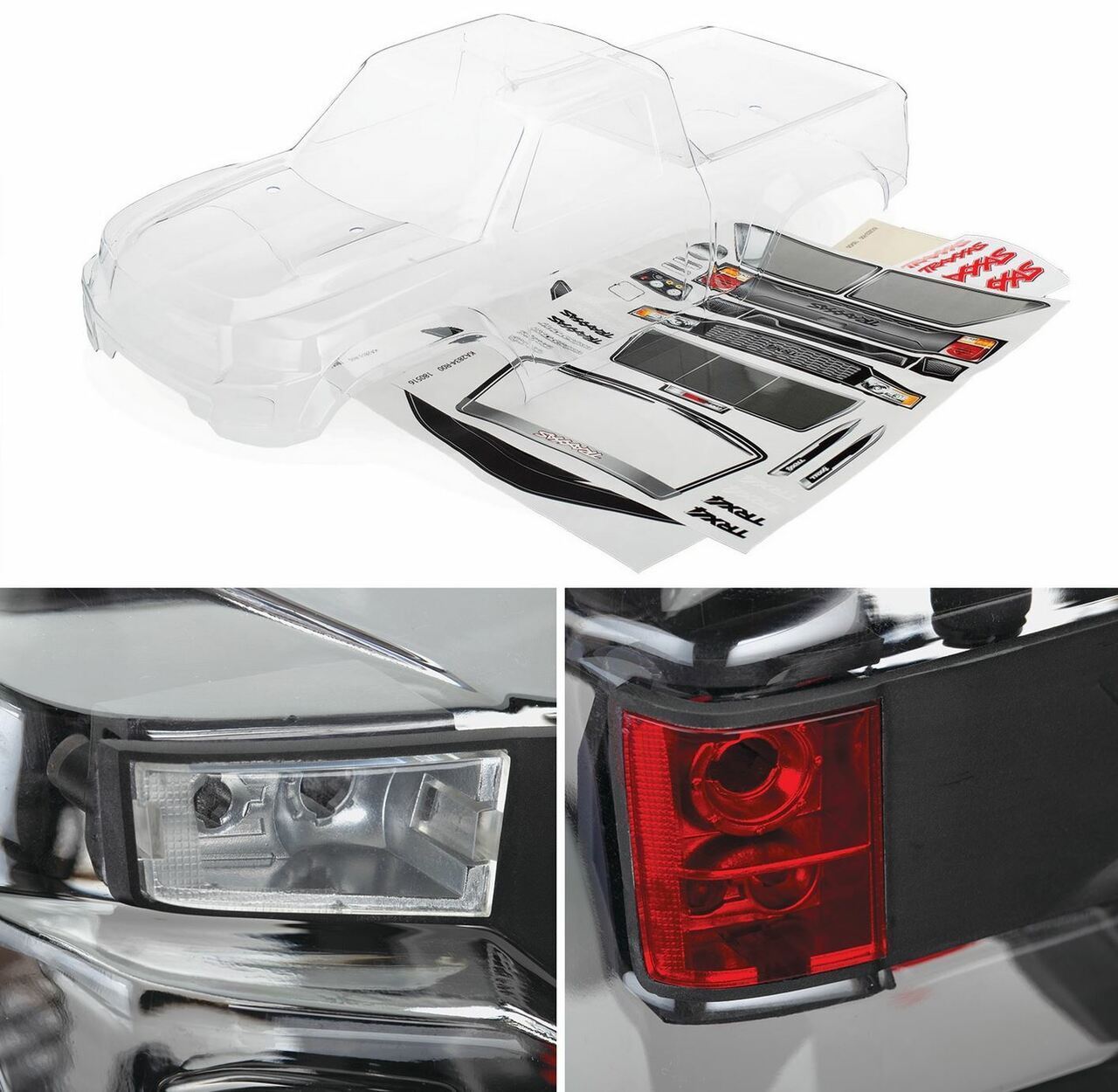

  • Pre-cut clear TRX-4 Sport body
  • Includes over $70 of scale accessories
  • Full color step-by-step assembly manual
  • Portal Axles
  • Steel-gear single speed transmission
  • Aluminum coilover GTS shocks
  • 1.9” Canyon Trail S1 compound tires with trail-tuned foam inserts
  • Rugged black 5-spoke wheels

REQUIRED TO COMPLETE (Not Included):

  • Transmitter and Receiver
  • Electronic speed control and motor
  • Steering servo
  • Battery with Traxxas High-Current Connector
    • 6 or 7 cell NiMH battery pack
    • 2s or 3s LiPo battery pack
  • Battery charger
  • Metric hex drivers
    • 1.5 mm, 2.0 mm, 2.5 mm
  • Basic hand tools
    • Screwdrivers, needle nose pliers
  • Traxxas Ultra-Premium Tire Glue (part #6468) or CA glue
  • Safety glasses
  • Polycarbonate paint

Includes Over $70 of Scale Accessories!

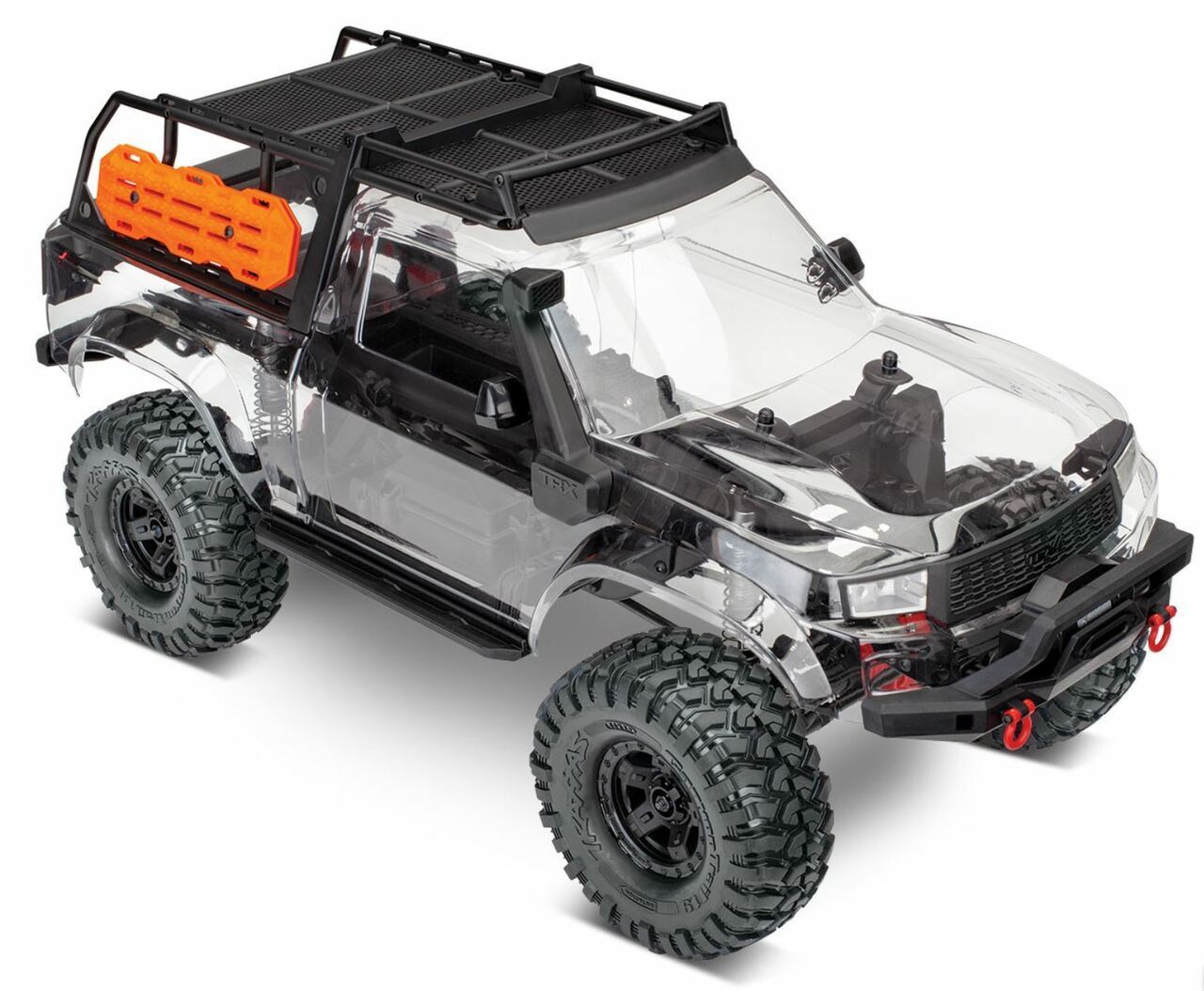

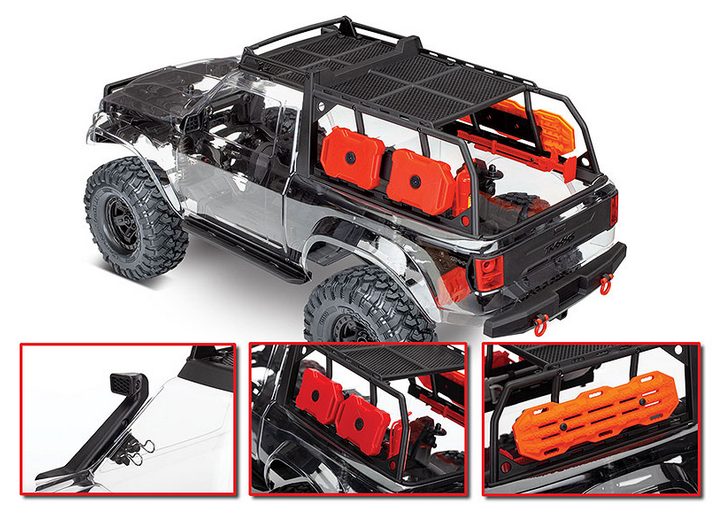

The Traxxas TRX-4 Sport Kit comes fully outfitted with an entire complement of scale accessories as standard equipment. The expedition rack not only looks great, but provides rugged protection for the body. The body and expedition rack are outfitted with a replica snorkel, side mirrors, traction boards, fire extinguisher, jack, and gas cans for maximum scale detail. The front and rear injection molded grill and tail gate also include lenses to make installing LED lights a breeze!

Easy to Follow Assembly Instructions

The TRX-4 Sport Unassembled Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and on the trail with the new TRX-4 Sport Kit.





TECHNICAL SPECIFICATIONS:



Length: 21.93 inches (557 mm)
Front Track: 9.78 inches (249 mm)
Rear Track: 9.78 inches (249 mm)
Ground Clearance: 3.14 inches (80 mm)
Weight: 92.6 ounces (2.63 kg) (with electronics installed)
Height: 9.47 inches (241 mm)
Wheelbase: 12.28 inches (312 mm)
Front Shock Length: 3.54 inches (90 mm)
Rear Shock Length: 3.54 inches (90 mm)
Approach Angle: 58.82°
Departure Angle: 45.83°
Breakover Angle: 59°
Front Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26 mm)
Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
Wheel Hex: 12 mm
Speed Control: Sold separately
Motor (electric): Sold separately
Differential Type: Spool (no differential)
Transmission: Single speed
Gear Pitch: 32

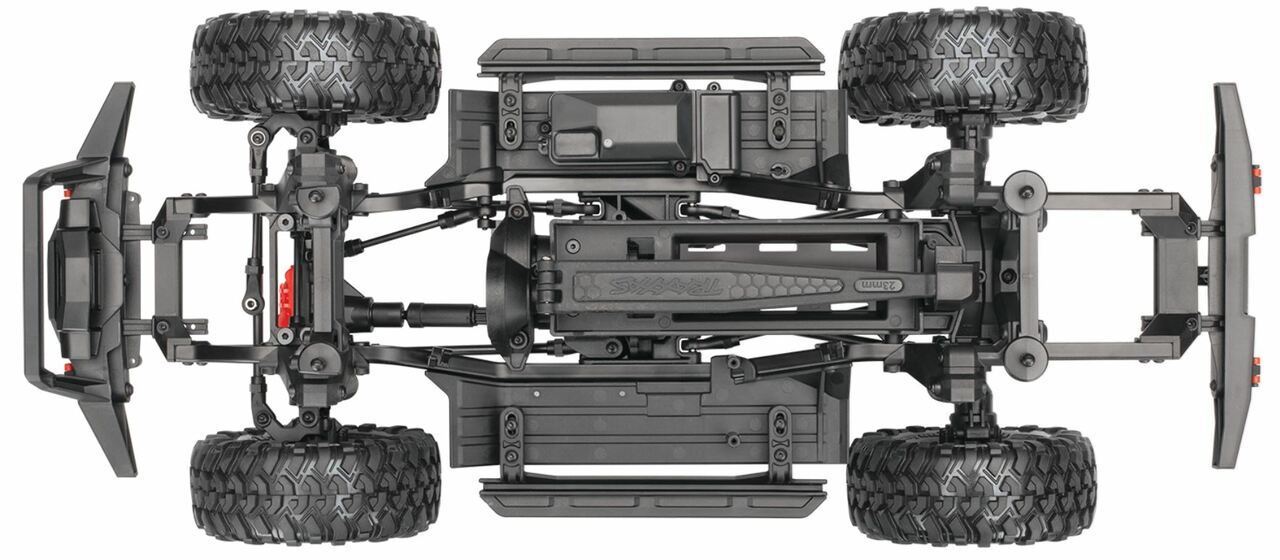

Chassis
Structure/Material: Steel Ladder Frame with Nylon Composite Crossmembers
Drive System: Shaft-Driven 4WD
Radio System: Sold separately
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26 mm H
