Traxxas 67014-4 STAMPEDE 4X4 UNASSEMBLED BRUSHED MONSTER TRUCK KIT W/ELECTRONICS

1/10 Scale High Performance Monster Truck Kit
The Stampede 4X4 Kit is designed Traxxas Tough™ to handle all the 4-wheel drive monster mayhem you can dish out. Its tall ground clearance and long-arm suspension make Stampede 4X4 feel unstoppable. The Stampede 4X4 Assembly Kit combines all the mud-slinging fun of the RTR Stampede with the excitement of building your own truck.

The Stampede 4X4 Assembly Kit adds a fun and exciting dynamic to your RC experience. Build your Stampede from the ground up with all the required parts and electronics included in the box. You'll get the convenience of a TQ™ 2.4GHz radio system, powerful Titan® electric motor, and waterproof XL-5 electronic speed control. All the parts are organized neatly in labeled bags with a fully illustrated color manual to make building rewarding and fun. The Stampede 4X4 Kit is perfect for drivers of almost any age or skill level. Discover why Stampede 4X4’s off-road capability and toughness are rivaled only by its reputation for pure, no-nonsense fun.

Key Features:

• Stampede 4X4 unassembled kit
• Full-time 4WD, reaches speeds over 30mph! (with optional 21-tooth speed pinion gear - sold separately)
• TQ™ 2.4GHz 2-channel radio system
• Sealed, oil-filled differentials
• Waterproof electronics for all-weather driving excitement
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• High-performance waterproof XL-5™ Electronic Speed Control
• Speed control and receiver are securely screwed to the chassis
• Equipped with patented Traxxas High-Current Connectors
• High-torque Waterproof Traxxas steering servo (TRA2056)
• Efficient telescoping heavy-duty U-joint driveshafts
• Bellcrank steering system with integrated servo saver
• Modular simplicity, fiber-composite monocoque chassis
• Gray chassis components offer a high-contrast tech look
• Easy access battery compartment
• Drive-over-anything ground clearance and forward wheel placement
• Long-travel suspension
• Fully adjustable Ultra Shocks™ with X-ring technology
• High-quality hex hardware throughout
• Efficient rubber-sealed ball bearings
• White powder coated shock springs feature a responsive spring rate
• Durable solid camber links eliminate the need for adjustment
• Captured rod ends won't pop off for superior durability
• Chrome All-Star™ 2.8" wheels
• Chevron Maxx™ multi-terrain tires with high-performance foam inserts
• Full line of genuine Traxxas accessories available
• Unparalleled Traxxas support and parts availability

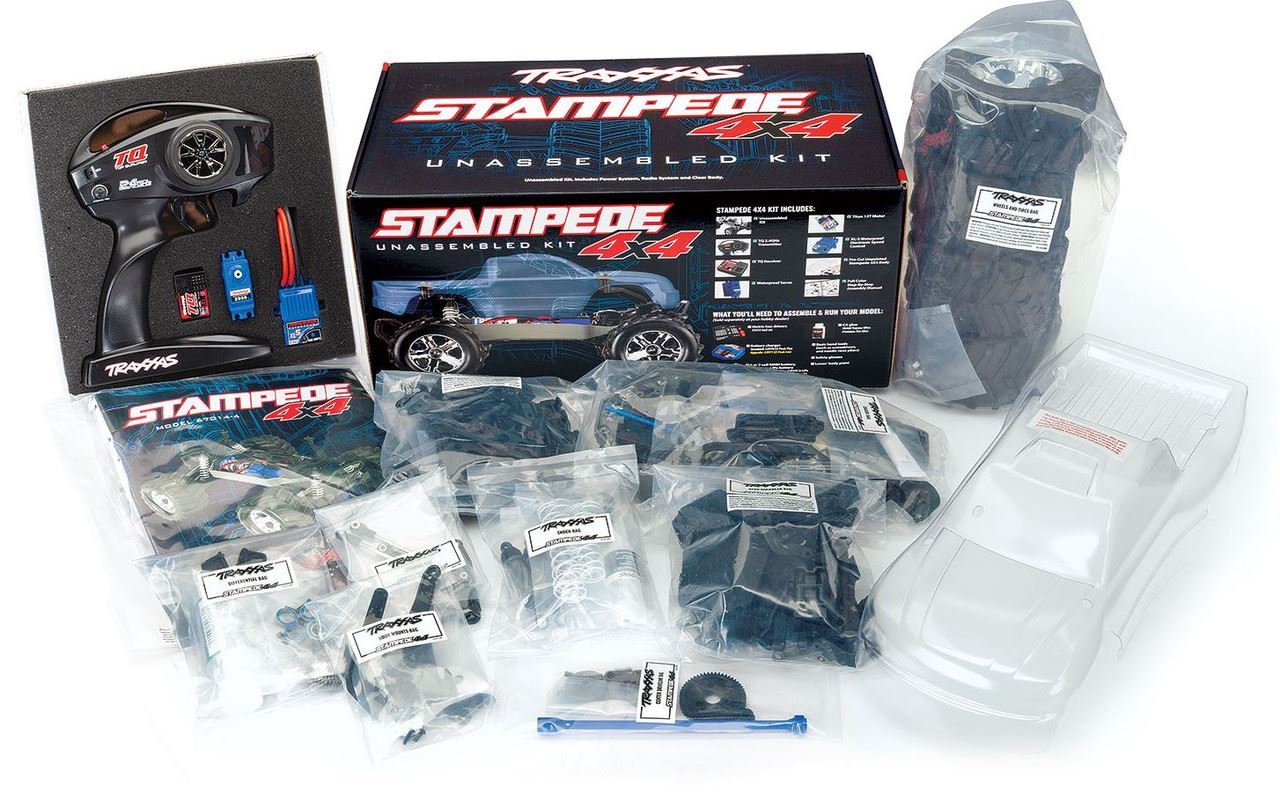

What's In The Box?

• Unassembled Stampede 4X4 chassis
• TQ™ 2.4GHz radio system
• Waterproof XL-5™ electronic speed control
• Titan® 12-Turn 550 modified motor
• Waterproof high-torque steering servo
• Sealed, steel-gear front and rear differentials
• Chevron Maxx™ 2.8" tires, foam inserts, and chrome All-Star™ wheels
• Pre-cut clear Stampede body with decals and window masking
• Full-color step-by-step assembly manual

Required for Completion (Not Included)

• Battery with Traxxas High-Current Connector
• 6 or 7 cell NiMH battery pack
• 2s LiPo battery pack
• Compatible Battery charger
• Metric hex drivers
• 1.5 mm, 2.0 mm, 2.5 mm
• Basic hand tools
• Screwdrivers, needle nose pliers
• Traxxas Ultra-Premium Tyre Glue (part #6468) or CA standard tyre glue
• Safety glasses
• Polycarbonate paint

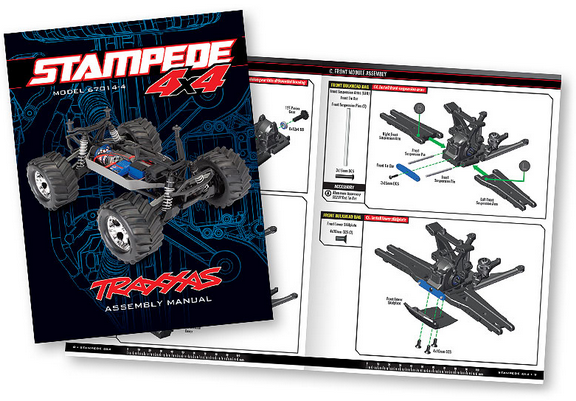

Easy to Follow Assembly Instructions
The Stampede 4X4 Assembly Kit isn’t just for expert hobbyists. Traxxas goes the extra mile to make the full-color instruction book easy to follow and fun to use. Each section corresponds to a labeled bag with step-by-step assembly instructions. True-to-scale part illustrations and ruler charts make it easy to differentiate between different screws, bearings, and gears. Helpful assembly tips and clear illustrations take the frustration out of the assembly process. Have fun on the workbench and in the dirt with the new Stampede 4X4 kit.

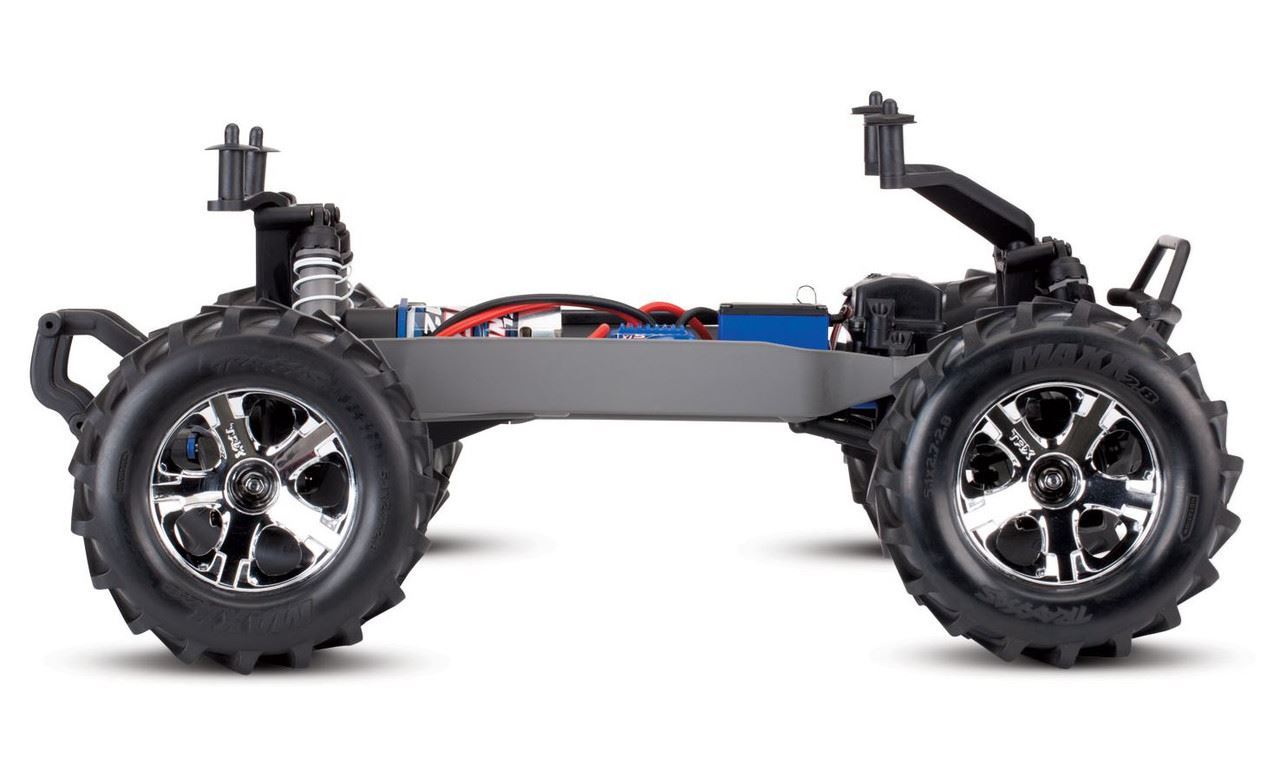

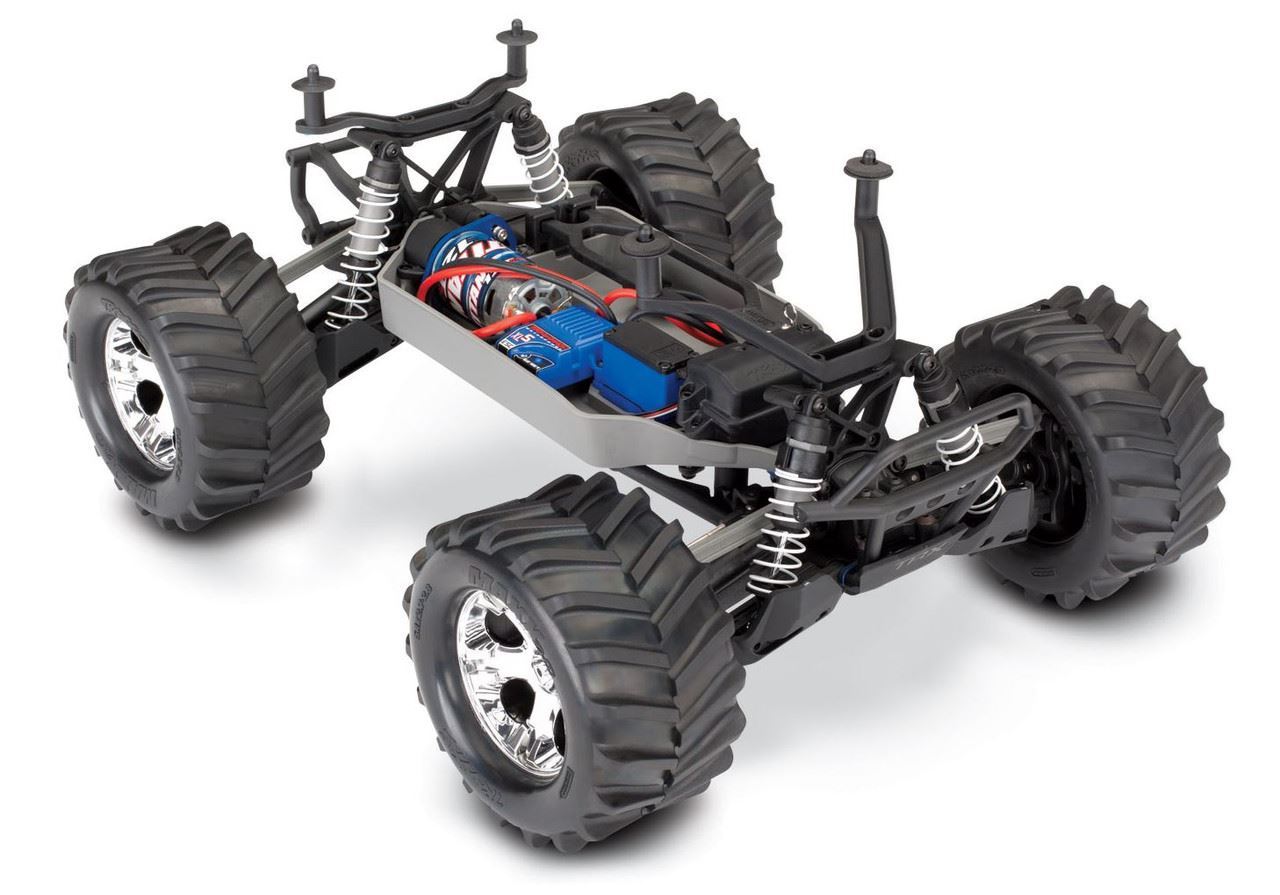

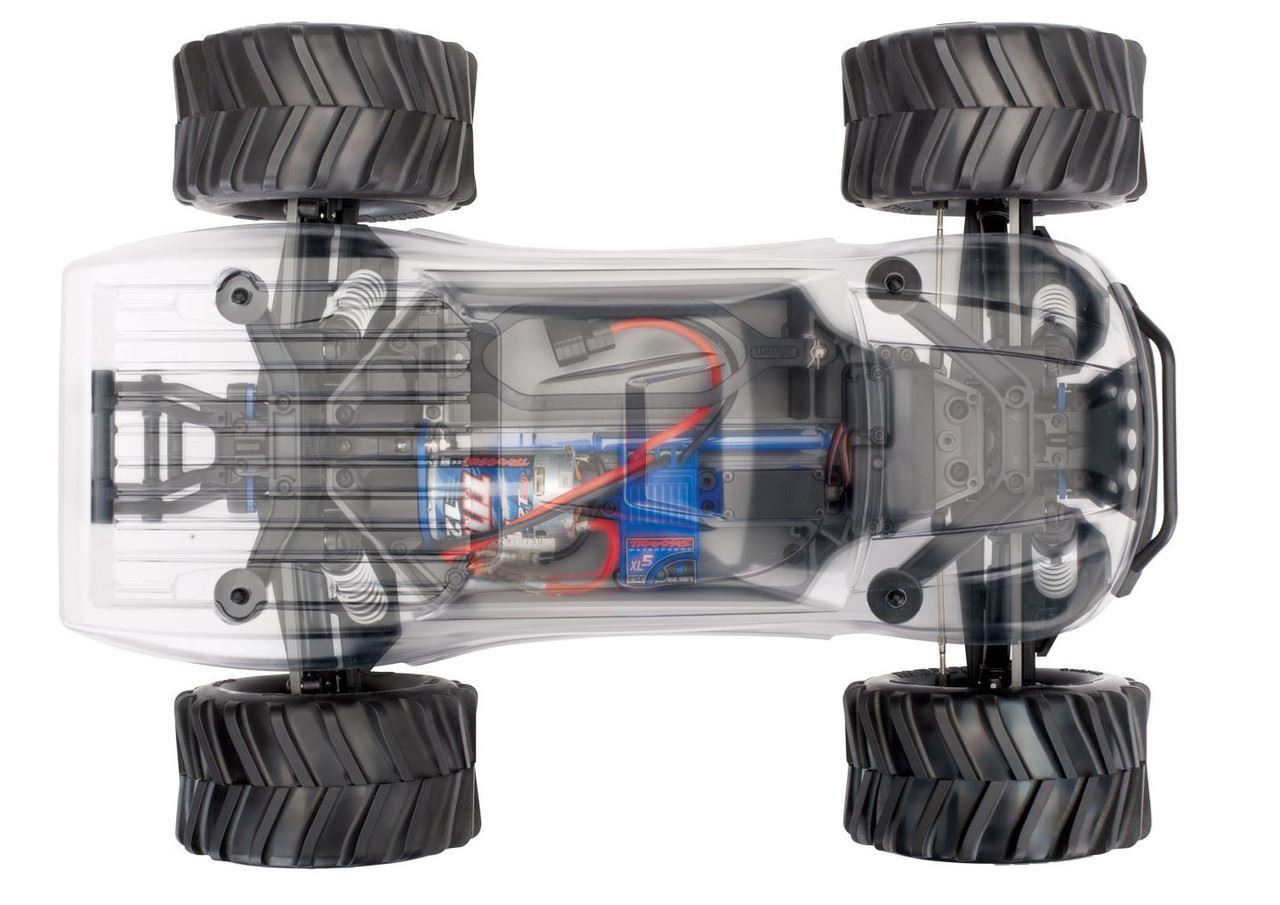

Innovative Chassis
The innovation designed into the Stampede 4X4 begins with a chassis that won't flex under load for arrow-straight, hard-charging acceleration. The chassis fully integrates the electronics and battery compartment for an efficient and compact layout, and maintains the high center ground clearance that gives Stampede 4X4 its tall stance and high-riding look. The extra clearance dramatically increases the off-road versatility that allows you to tackle rough terrain and large obstacles. The Stampede 4X4 feels planted and secure at speed, even on pavement and in other high-grip conditions. Stampede 4X4 is 100% monster truck, but it handles like a racing machine! Underneath, the chassis is ultra-smooth to reduce drag and prevent snags driving through brush.

Titan® 12-Turn 550 Modified Motor
Titan® 12T 550 Motor (#3785)The Stampede 4x4 kit includes a powerful Titan 12T 550 modified motor with internal cooling fan. The Titan's over-sized armature (30% larger compared to 540-sized armatures) is equipped with 12-turns of pure copper wire for big torque and increased power-handling capabilities. Lower running temperatures are achieved with the integrated cooling fan. The Titan 12T requires very little maintenance and is designed for consistent torque and high speeds from run to run, without fading.
Beyond the specs, the Titan 12T is made for rock crushing torque, hardcore wheelie launches, explosive jumping, and just about any other 4-wheel fun that demands real horsepower.

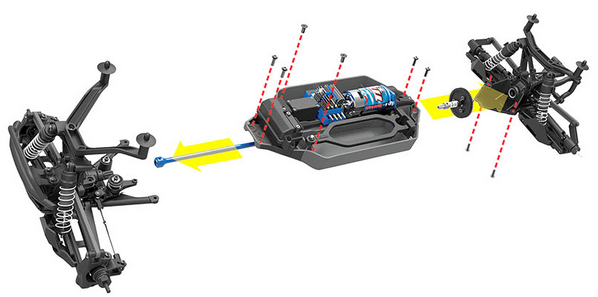

Modular Simplicity
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. Modular design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.

Oil-Filled Ultra Shocks
High-speed off-road action requires rugged, responsive shocks that can take a lot of abuse. The Ultra Shock's high-volume body yields large oil capacity, and a silicone bladder separates oil from air within the shock for consistent damping action, even during all-day off-road sessions. Dual X-ring seals give super-smooth performance without weeping or leaking, and Ultra Shocks are fully tunable with a wide range of oils, springs, and pistons.

Sealed Steel-Gear Differentials
Stampede 4X4's differentials represent the state of the art in power handling and efficiency. Steel gears in the differentials are ready to handle brushless power without costly upgrades. Silicone gaskets and X-ring seals allow the diffs to be tuned for specific running conditions by varying the viscosity of the fluid inside them. Differential access for tuning is quick and easy. Just remove the front or rear cover and the entire differential slides right out.

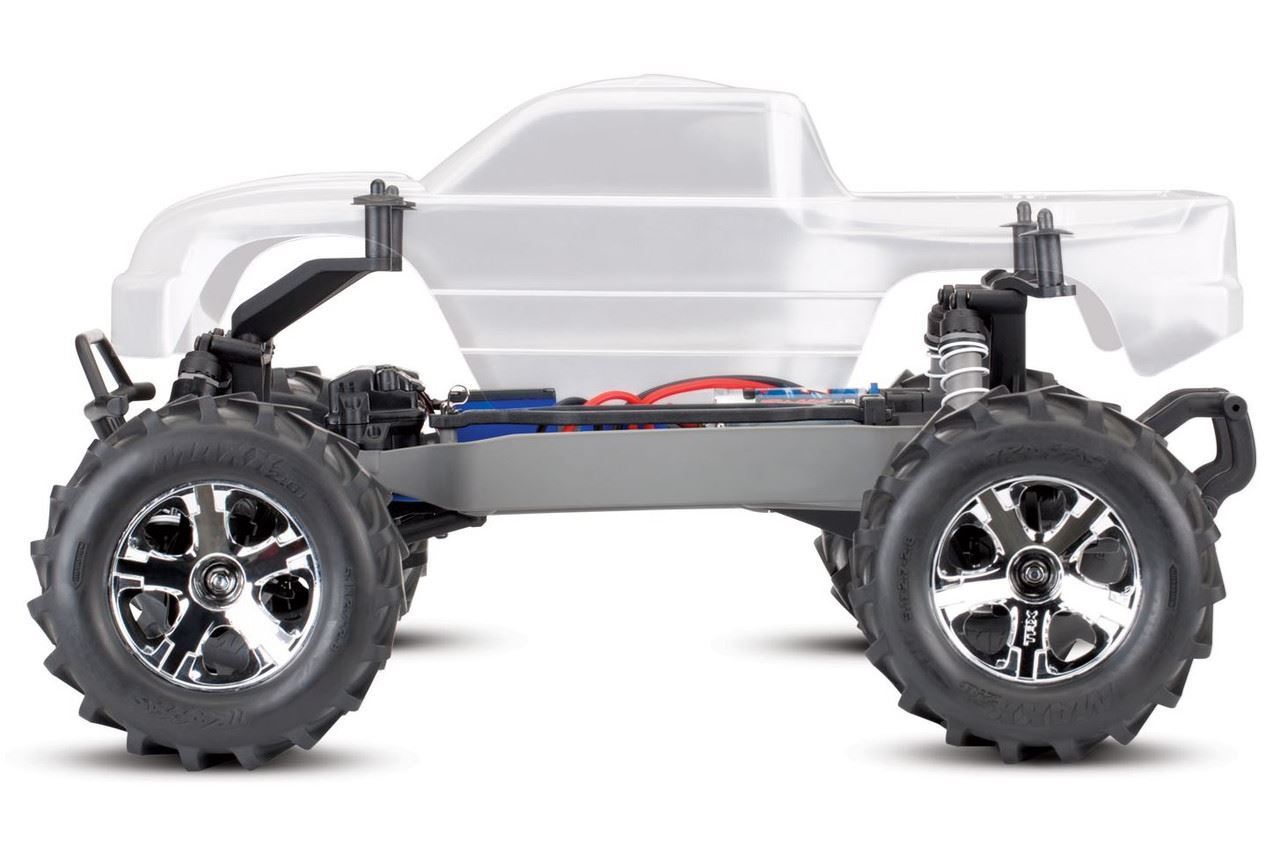

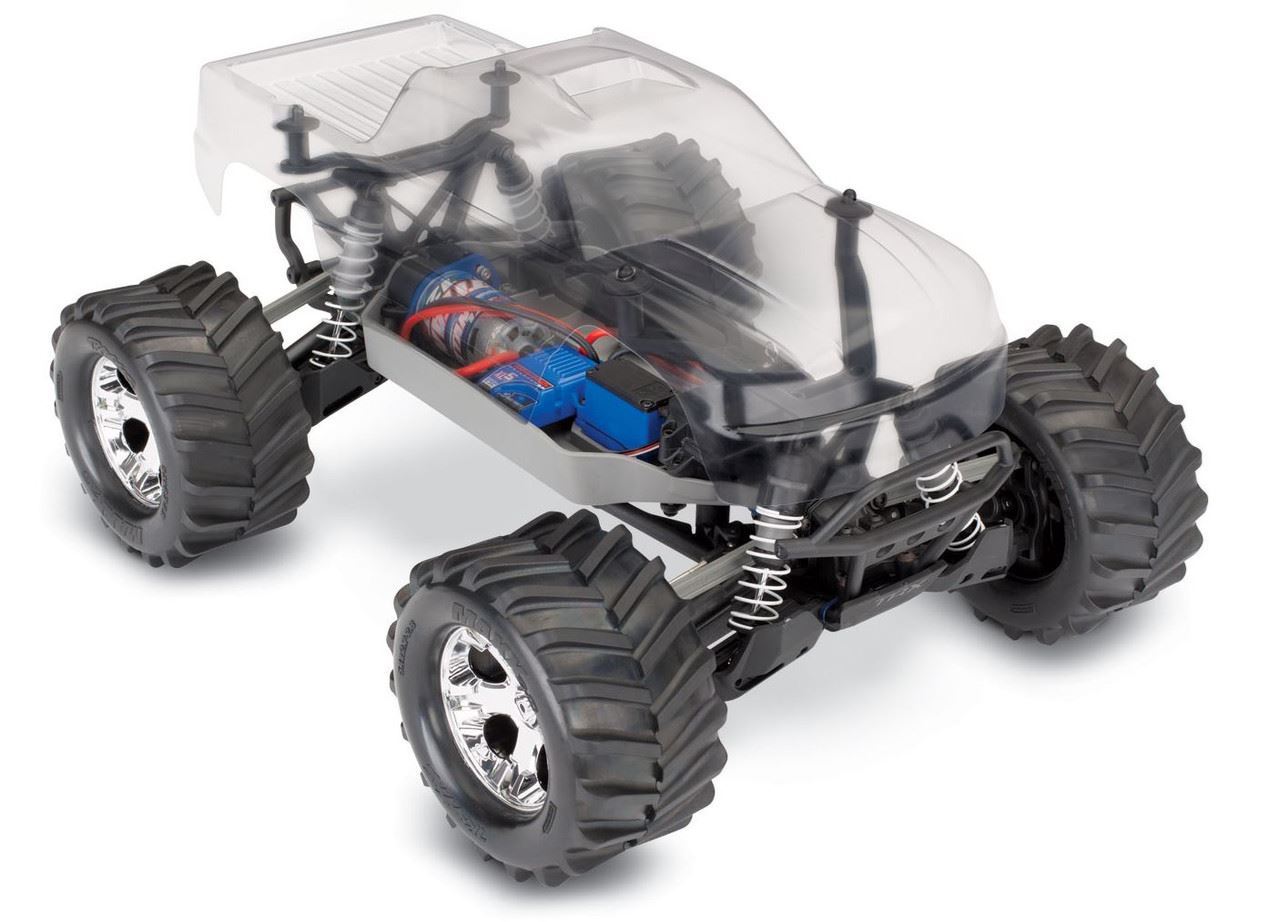

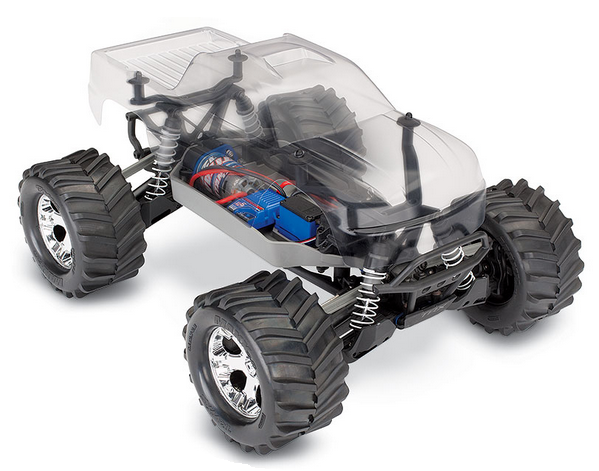

Clear Body
The Stampede's fully-trimmed clear body lets you design and paint your own custom creation. The kit includes decals and window masking for professional looking results.
