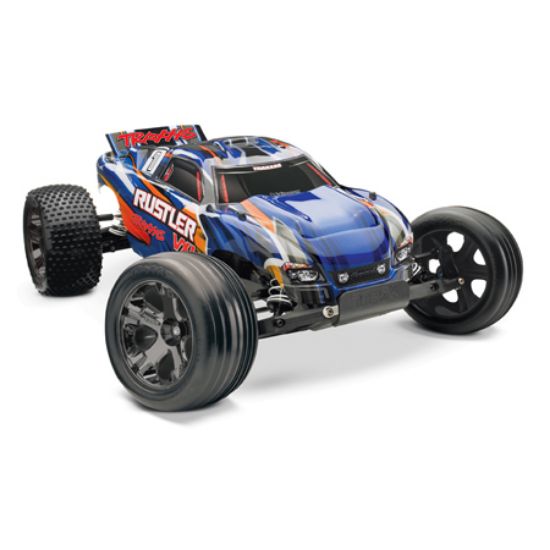

Traxxas 37076-3 Rustler VXL

Traxxas 37076-3 Rustler VXL
Manufacturer: TRAXXAS
Availability: Out of stock
SKU: 37076-3
$699.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Specs:


RUSTLER VXL (#37076-1) SPECS
Length:­17.5" (445mm)
Front Track:­12.25" (311mm)
Rear Track:­12.25" (311mm)
Weight:­59.6oz (1.69 kg)
Height (overall):­7" (178mm)
Wheelbase:­11.375" (289mm)
Front Shock Length:­Long
Rear Shock Length:­XXLong
Front Tires (pre-glued):­Alias™ Ribbed 2.8"
Rear Tires (pre-glued):­Alias™ Step-Pin 2.8"
Front Wheels:­2.8" Black-Chome (All-Stars™)
Rear Wheels:­2.8" Black-Chome (All-Stars™)
Electronic Speed Control:­VXL-3s™ Electronic Speed Control
Motor (electric):­Velineon® 3500 Brushless
Gear Ratio (internal):­2.72 (final drive: 9.05)
Differential Type:­Planetary
Gear Pitch:­48-Pitch
Transmission:­Magnum 272™
Steering:­Bellcrank
Chassis Type:­Modified Tub
Chassis Material:­Composite Nylon
Radio System:­TQi™ 2.4GHz Radio System
Top-Speed:­70+mph**
Skill Level:­1
*Battery Tray Dimensions:­139mm x 47.5mm x 28mm
Included Charger:­Traxxas 4amp DC Peak Detecting Fast Charger
Included Batteries:­Traxxas 7-cell NiMH battery with iDTM
Required Batteries:­4 "AA" (transmitter)
RUSTLER VXL SPEED & SKILL LEVEL CHART
SPEED
35+mph
45+mph
65+mph
70mph & beyond
GEARING
pinion/spur
25/83
28/83
(included)
31/76
(sold separately)
31/76
(sold separately)
BATTERY
6-Cell NiMH
7-Cell NiMH
3S 20C Lipo*
3S 20C LiPo*
NOMINAL
VOLTAGE
7.2V
8.4V
11.1V
11.1V
mAh
3000+ mAh
4000+ mAh
4000+ mAh
8000+ mAh
SKILL LEVEL
1
2
5
5

VXL-3s (WATERPROOF) ESC SPECIFICATIONS
Input Voltage:­NiCad/NiMH 4-9 Cells (4.8 to 10.8 Volts DC);
LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size:­39mmW x 55mmD x 33mmH
Weight:­90 grams
Motor Limit (Brushed/Brushless):­No motor limit
On Resistance Forward:­0.00075 Ohms
On Resistance Reverse:­0.00075 Ohms
Peak Current - Forward:­320A
Peak Current - Reverse:­320A
Braking Current:­320A
Continuous Current:­200A
BEC Voltage:­6.0 V
BEC Current:­2.5A (with 6-cell NiMH)
Power Wire:­12-Gauge Maxx® Cable
Input Harness Wire:­26 Gauge / 100mm
Transistor Type:­MOSFET
Low Voltage Detection:­2-Stage indicators, switchable (on or off)
Thermal Protection:­2-Stage thermal shutdown
Profile selection:­Sport Mode:
    100% FWD, 100% BRAKES, 100% REV
Race Mode:
    100% FWD, 100% BRAKES, NO REV
Training Mode:*
    50% FWD, 100% BRAKES, 50% REV
Single-Button Setup:­Yes, Traxxas EZ-Set®
Battery Input Connector:­Traxxas High-Current Connector*
Motor Type­Brushless
Ports:­RX Input, motor sensor, auxiliary fan

features:

New 4amp DC Peak Detecting Fast Charger

  • New Traxxas 7-cell NiMH battery with iDTM
  • Powered by the Velineon® Brushless Power System
  • Rustler VXL reaches speeds in excess of 70mph!*
  • Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
  • Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow.
  • Maxx® Cable 12-gauge wire
  • Velineon VXL-3s Electronic Speed Control
    • LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
    • Sport Mode – Forward / Brake / Reverse
    • Race Mode – Forward / Brake
    • Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
  • Velineon 3500 Brushless Motor
    • Consistent, high-power output, run after run
    • Low-maintenance, unique Traxxas design
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
  •  TQi 2.4GHz transmitter
    • Compatible with optional Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
    • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
    • Multi-Function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • TQi 2.4GHz 5-channel micro receiver (#6518) with fail-safe security and integrated telemetry ports
  • Digital high-torque Traxxas 2075 waterproof steering servo
  • Durable steel Jato®-Style turnbuckles and captured rod ends
  • Efficient Magnum 272™ steel-gear transmission with ball bearings
  • Sealed gearbox protects the transmission with beefed up motor guard for extra protection
  • Revo®-Spec Torque-Control™ slipper clutch system
  • External gear cover with easy slipper access
  • Reliable composite planetary gear differential
  • Updated heavy-duty telescoping U-joint driveshafts and yokes
  • Fiber-composite monocoque chassis
  • Speed control and receiver are securely fastened to chassis
  • Easy access battery compartment
  • Fully adjustable Ultra Shocks™ with X-ring technology
  • White powder coated shock springs feature a responsive spring rate
  • Alias™ step-pin rear tires and Alias ribbed front tires offer superior
    off-road traction.
  • Rustler's tires include performance foam inserts and they come
    pre-glued on mirror-chrome 2.8" All-Star™ wheels.
  • ProGraphix® multi-colored painted body is available in red, blue, black, and white.
    • Wing is securely attached to the body with precision hex hardware
  • Rustler is backed by unparalleled Traxxas support and parts availability.
  •



    • NEW! Traxxas 4amp DC Peak Detecting Fast Charger
    • NEW! Traxxas 7-cell NiMH battery with iDTM
    • Extreme Brushless Horsepower!
    • TQi 2.4GHz Radio System
    • Waterproof Electronics for All-Weather Driving Excitement
    • Top Speed: 70+mph!

    Rustler® VXL combines Velineon® extreme brushless horsepower with the proven fun and durability that have made Rustler the number-1 selling electric stadium racer. The new Velineon Brushless Power System launches Rustler VXL to new heights with speed potential that reaches beyond 70mph! Hardcore, wheel-standing acceleration completely blows everything else away. Out of the box, Velineon is optimized to actually deliver the tire-melting horsepower, benchmark speed, and precision throttle response you expect from brushless. Best of all, it's brushless done the Traxxas way: wicked fast and easy to use. There's no tricky programming to figure out or a glossary of new vocabulary to learn. Just plug it in and it works.

    The Velineon Brushless Power system takes the guesswork out of enjoying the benefits of world-class brushless power. The system components work together as an optimized package, engineered from the start to deliver the ultimate in efficiency, speed, and run time. With the Rustler VXL, Your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer packs (3S LiPo packs). These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 70mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s™ Electronic Speed Control conveniently helps you maintain your LiPo battery packs in top condition.


    * Requires Optional Pinion Gear (sold separately).
    Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.



    The World's Most Advanced Ready-To-Race® Radio System

    Rustler VXL is equipped with the world's most advanced Ready-To-Race® radio system. The all-new Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The new TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely, and the Multi-Function knob can be programmed to control Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.



    Traxxas Link Wireless Module Compatible

    The TQi's most important new feature may already be in your pocket. The TQi can be equipped with an Traxxas Link Wireless Module (#6511, sold separately) that turns your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.



    Sealed Electronics Extend Your Driving Fun

    Traxxas shocked enthusiasts with the release of our exclusive watertight, sealed electronics in the E-Maxx that provided the freedom to drive where you want to drive through water, mud, snow, and other wet-running conditions that wouldn't have been possible before. Now the Traxxas Rustler VXL is Ready-To-Race with this waterproof technology. The VXL-3s speed control, high torque servo, and mini receiver are sealed against the elements giving you the freedom go places you might not have thought possible. It opens up a whole new world of adventure and fun. Wet muddy tracks are no problem for the Rustler VXL.

    ­

    Traxxas 4amp DC Peak Detecting Fast Charger

    Rustler VXL includes a 4amp peak detecting charger for quick, convenient, hassle-free charging. The charger uses a 12-Volt DC power outlet for charging charging in the field. The brilliant LED provides charging status while the battery charges. The peak-detecting charger is optimized for charging Traxxas Power Cell NiMH battery packs. Just plug the included Power Cell battery in for a perfect charge, run after run.



    Traxxas Power Cell NiMH Battery with iD™

    Rustler VXL includes a genuine iD-equipped Power Cell NiMH battery to make sure you experience all the performance that's been engineered into your Traxxas model.  Accessory Traxxas iD chargers (sold separately) auto-detect Traxxas iD Power Cell batteries and automatically set and optimize charge settings for unmatched charging safety and simplicity. Power Cell packs are optimized for free-flowing power and maximum punch with premium quality, low-resistance cells; flexible, silicone-jacketed 12-gauge wire; heavy-duty welded tabs; and Traxxas' high-output, gold plated, patented, High-Current Connectors. Precision assembly with attractive, individually wrapped cells and clear overwrap complete the Traxxas Power Cell package. For even greater speed and runtime, a full line of optional Traxxas iD Power Cell NiMH and LiPo batteries are available.  Power Cell batteries are Traxxas certified to maximize the performance and speed engineered into every Traxxas vehicle.



    The Velineon 3500 Brushless Motor is precision-matched for use in the 1/10th scale Rustler, delivering the perfect balance of brutal horsepower and efficiency. The sensorless design works with the sophisticated circuitry in the VXL-3s Electronic Speed Control for smooth starts and precise control, without the need for additional sensors and wiring. Since there are no brushes or commutator to cause friction and wear, Velineon brushless power is always fast, run after run.

    ­

    The Velineon VXL-3s forward/reverse electronic speed control simplifies brushless technology with easy operation that gives you all the control you need for maximum fun. Quickly choose from 3 drive profiles in exactly the same manner as other Traxxas electronic speed controls (such as the XL-5). Profiles include: Sport, Race, and Training Mode (patented). Training Mode™ limits full-throttle power to 50% allowing young or new drivers to safely develop their control skills before unleashing the full-throttle capability of the Velineon system. Rustler VXL's performance can be tailored for drivers of any age and experience. High-frequency transistors and advanced circuit design deliver incredibly smooth and refined throttle control. High-current capacity (320 amps peak) and two-stage thermal protection frees you from motor limits.

    The Rustler VXL is equipped to handle serious horsepower with features such as the advanced Revo®-spec Torque-Control™ slipper clutch. The patent-pending design delivers smooth operation, precise adjustment, and consistent traction control, even when tortured with massive amounts of horsepower. New upgrades to the Rustler VXL include high-grade hex hardware, precision metal turnbuckle links with heavy-duty rod ends, and larger 5x11mm rubber-sealed ball bearings at the wheels. The transmission is beefed-up as well with tough new steel gears. With so much speed available, the Rustler VXL is equipped with a digital high-torque steering waterproof servo (#2075) for lightning-quick steering response and confidence-inspiring precision.
