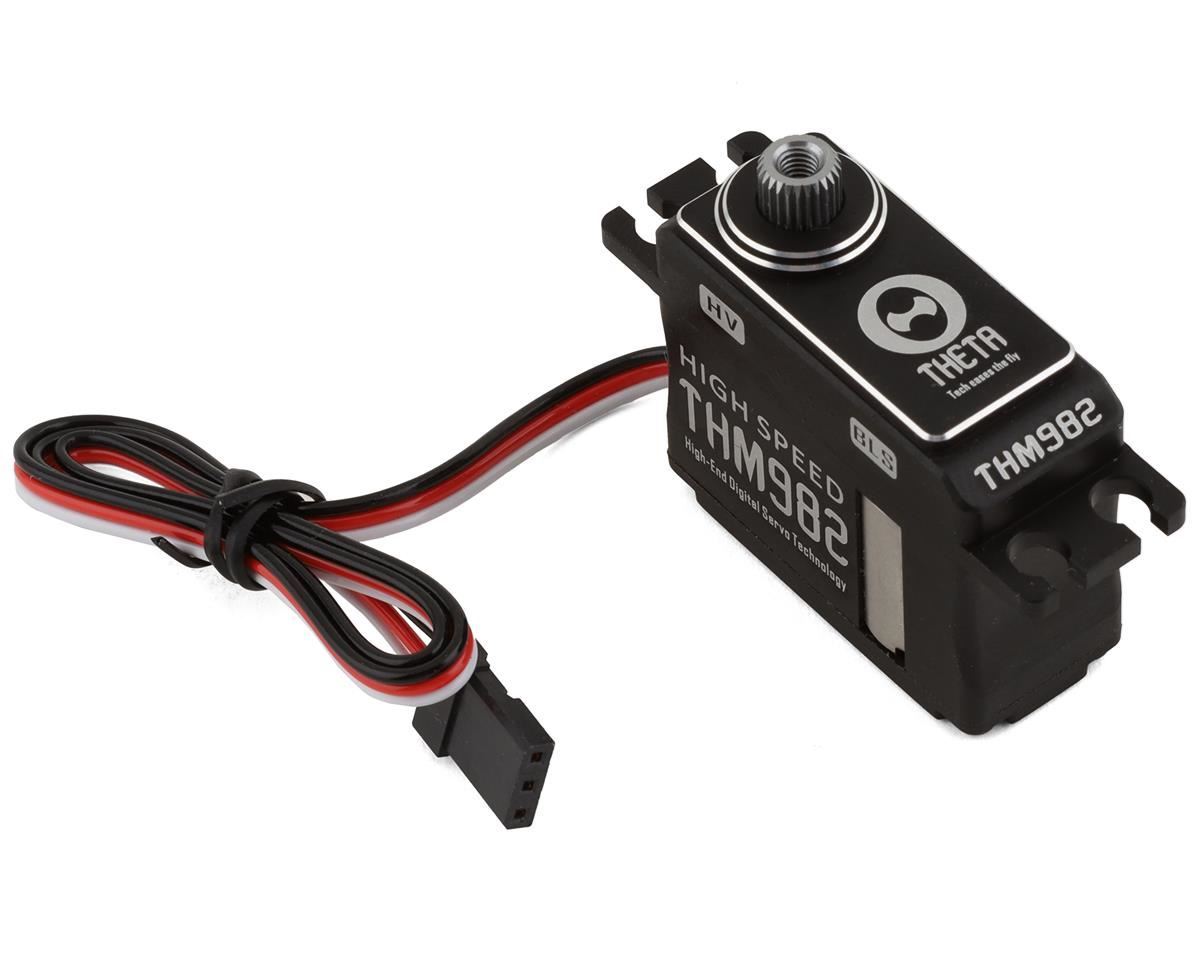

Theta Servos THM982 Brushless Mini High Voltage Tail Servo

The THM series of Theta Servo is a mini size brushless servo that is capable of handling high voltage of up to 8.4V. The high torque brushless servo delivers incredible power and is an ideal choice for RC helis that need a mini sized tail rotor servo.

Features:

• High voltage compatibility
• Brushless motor
• Metal gears
• Precision centering
• 25T Output shaft

• Operating Voltage: 5V - 8.4V
• Torque:
• 6V: 97 oz/in (7kg-cm)
• 7.4V:  111 oz/in (8kg-cm)
• 8.4V: 124 oz/in (9kg-cm)
• Speed:
• 6V: 0.07 sec/60
• 7.4V:  0.06 sec/60
• 8.4V:  0.05 sec/60
• Weight: 46g (1.62 Oz)
• Motor Type: Brushless
• Spline: 25T
