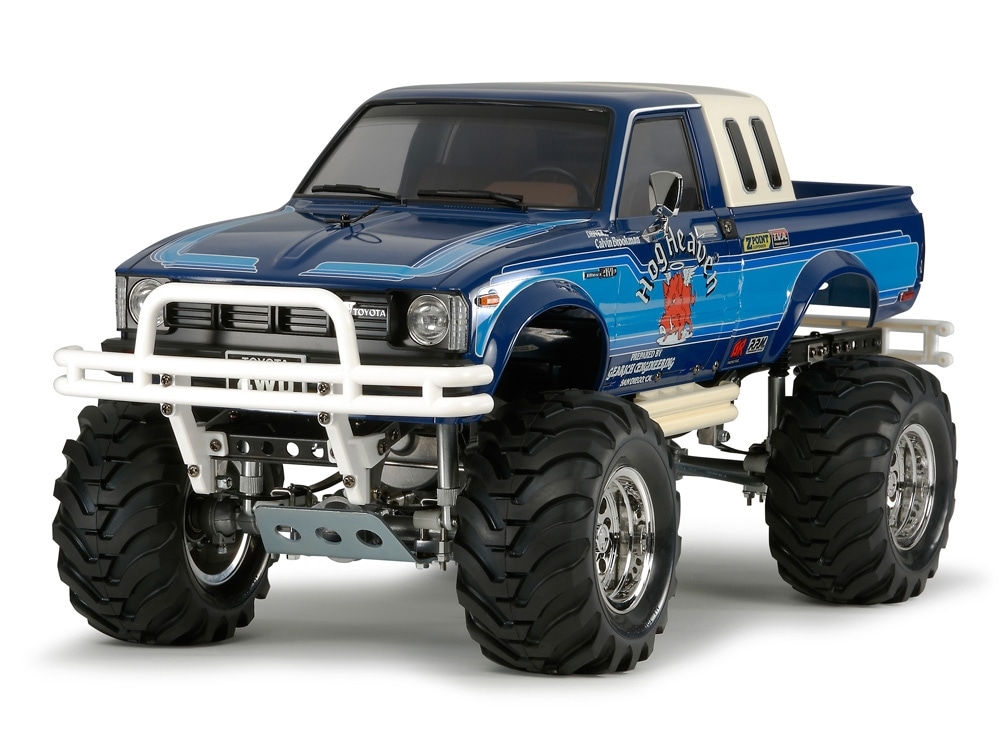

Tamiya 58519 1/10 4WD Bruiser RN36 Toyota Hilux Pick-Up (RN36) Kit

Manufacturer: Tamiya
Availability: Out of stock
SKU: 58519
Ship to
Shipping Method
Estimated Delivery
No shipping options



    This electric R/C assembly kit reproduces the 4WD Toyota Hilux Pick-Up (RN36), which enjoyed wide popularity in the US and Japan during the 1980s and is still adored by many fans today. The model features a ladder frame like the actual vehicle, Type 540 motor, 3-speed transmission, and an abundance of metal parts for a high level of realism. Its live axle suspension features metal axle housings, leaf springs, and oil dampers while a metal front under guard helps the model take on tough off-road conditions. A highly detailed injection-molded body and large 123mm diameter tires also gives the model a stylish, high-lift appearance.

    About the Toyota Hilux Pick-Up
    The 3rd generation Toyota Hilux Pick-up (30/40 Series) debuted in 1978 and the RN36 model was developed specifically for export markets. It featured a sporty, lightweight body and was powered by a 98hp 1,968cc 4-cylinder gasoline engine. Furthermore, its live axle suspension featured front leaf spring shackles located towards the rear to provide sufficient approach/departure angles for superb off-road performance. Front/rear flared fenders and large tires gave the truck a tall, aggressive stance. The RN36 model was mainly exported to North America but was also later sold in Japan, and there are still many fans of this pick-up to this day.

    • Equipped with metal front under guard. Knuckle mechanism is just like that on an actual truck.
    • Highly-durable front & rear die-cast metal wheel hubs.
    • A planetary gear ensures optimum ratios while a metal dog clutch, shift forks, and plastic gears combine to deliver smooth gear changes.
    • Durable, lightweight die-cast aluminum front/rear axle housings are equipped with differentials.
    • Power is delivered from the transmission to the front wheels via universal drive shaft.
    • An abundance of metal parts is incorporated for a high level of realism.

    ●Length: 525mm, Width: 278mm, Height: 275mm, Weight: 3.2kg
    ●Tread: 200mm (Front), 218mm (Rear)
    ●Wheelbase: 287mm
    ●Tire Width/Diameter (F/R): 60/123mm
    ●Type 540 Motor
    ●Longitudinally-Mounted Motor Shaft-Driven 4WD
    ●Front & Rear 6-Pinion Differential Gears
    ●Front & Rear Oil Dampers
    ●Gear Ratio; 1st Gear=1:54.63 (4WD), 2nd Gear=1:40.49 (2WD), 3rd Gear=1:27.92 (2WD)
    ●Requires an Electronic Speed Controller & 4-Channel radio system (sold separately)



      • Adjustable Gear Ratio Transmitter controlled 3-speed transmission
      • Bearings Shielded ball bearing
      • Body Material ABS Plastic
      • Body Stickers Included
      • Chassis Material Steel
      • Construction Type Assembly Kit
      • Differential Type Gear
      • Drive Type 4WD
      • Electronic Speed Control (esc) Not Included
      • Led Light Buckets Yes
      • Led Lights No
      • Motor 540-brushed type
      • Required To Complete 4-channel radio, 2 servos, ESC (electronic speed control), 7.2volt battery with compatible charger, Tamiya TS &Acrylic paint, and plastic cement
      • Scale 1/10
      • Shock Damper Oil-filled damper
      • Special Feature 1 1/10 scale R/C assembly kit
      • Special Feature 10 Type 540 motor included
      • Special Feature 2 The Bruiser body, including the sleeper cab, is made of durable injection-molded ABS plastic
      • Special Feature 3 Metal ladder frame chassis retains the original layout and features a black-finished surface
      • Special Feature 4 Newly-designed die-cast transmission is equipped with planetary gears
      • Special Feature 5 Refined clutch mechanisms offer smooth gear changes and superb durability. 3-speed gears are possible (1st gear=4WD, 2nd & 3rd gears=Rear Wheel Drive)
      • Special Feature 6 Newly-designed front/rear axle housings are equipped with differential gears to offer smooth cornering performance
      • Special Feature 7 Front and rear differentials may be locked for enhanced off-road performance
      • Special Feature 8 Front & rear large diameter tires offer superb traction
      • Special Feature 9 Separately available LEDs can be installed in the light cases to depict realistic head and tail lights
      • Suspension Leaf spring
      • Terrain Use Multi-purpose
