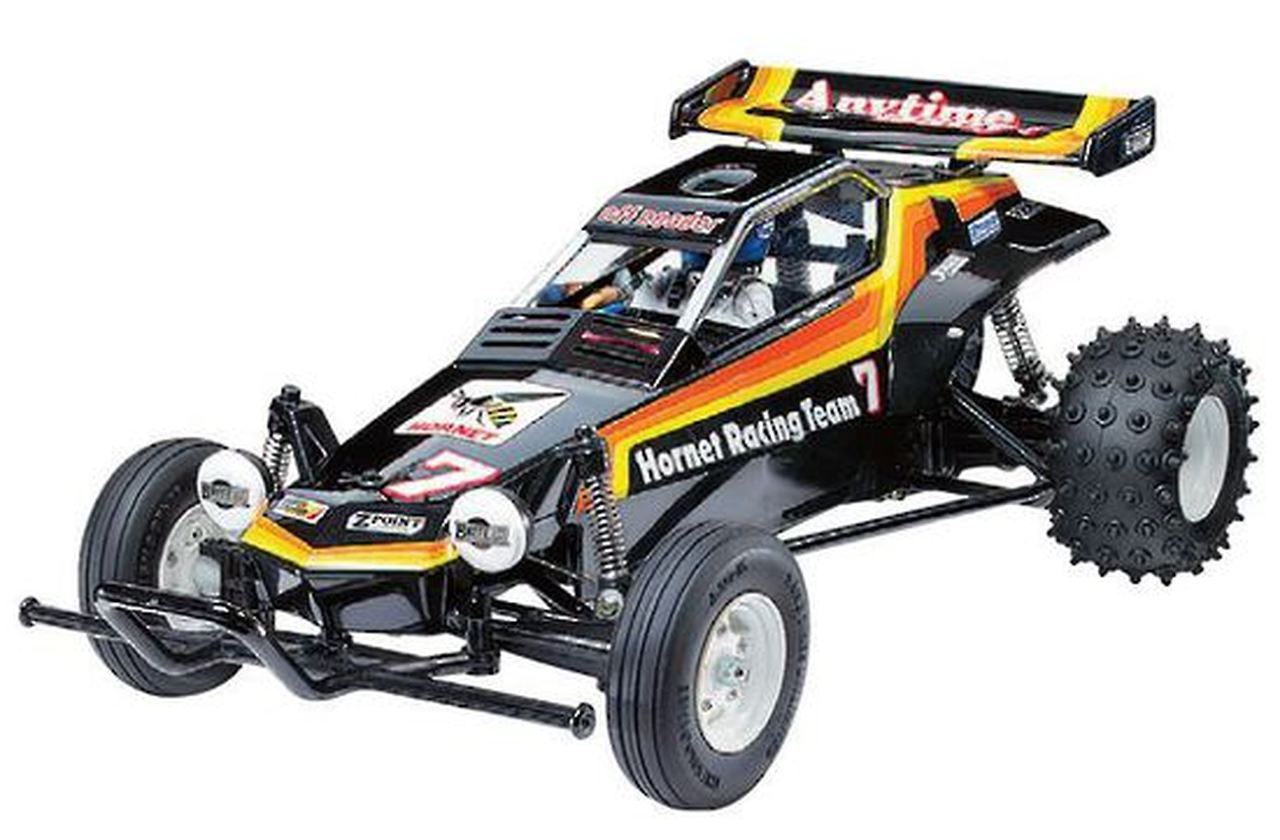

Tamiya 58336 1/10 Hornet 2WD RC Buggy Kit

Tamiya 58336 1/10th The Hornet 2WD RC Buggy Kit


FEATURES

Chassis: Monocoque plastic tub style chassis
Drive: Rear wheel drive
Body: Clear Lexan with clear Lexan wing
Electronic Speed Control: Hobbywing 60A brushed ESC.
Motor: Mabuchi RS540SH (bushing/sealed endbell)
Plastic bushings
Shocks: Coil-over friction in front and aluminum body oil-filled in
the rear
Gearbox: Sealed rear gearbox
Differentials: bevel gear
Transmission: single speed
Tires: 1.4" spiked on the rear and 1.4" ribbed on the front
Wheels: 5-spoke, 3-piece White plastic wheels
Bumpers: Large Black plastic rail type front bumper
Suspension: Independent front A-arm and rear rolling rigid axle
Camber Tie Rods: fixed non-adjustable
Steering Tie Rods: adjustable
Steering: Two steering rods attach to the servo saver and knuckle arm
Servo Saver: included

Hornet rolling chassis with rear oil-filled shocks, 540 motor,
Electronic Speed Control, clear body, tires, 3-piece wheels, 19
tooth 32 pitch pinion gear, 50 tooth counter gear, decal sheet and
building instructions.

Needed To Complete

• 2 Channel Radio and Receiver
• Standard Size Servo for steering
• 7.2V NiMH Battery with standard Tamiya connector
• Charger for Battery
• Paint and Building equipment

SPECIFICATIONS

VEHICLE-

Length: 15.74" (400mm)
Width: 9.05" (230mm)
Height: 5.90" (150mm)
Weight: 1.92lbs (874g)(approx.)
Tires- Front: 1.4" ID - 2.85" OD - .80" wide
Rear: 1.4" ID - 3.75" OD - 1.75" wide

BODY-

Length: 13" (330mm)
Width: 5.5" (139mm) at rear wheels (widest point)
2.25" (57mm) behind from wheels (thinnest point)
Height: 3" (76mm)
