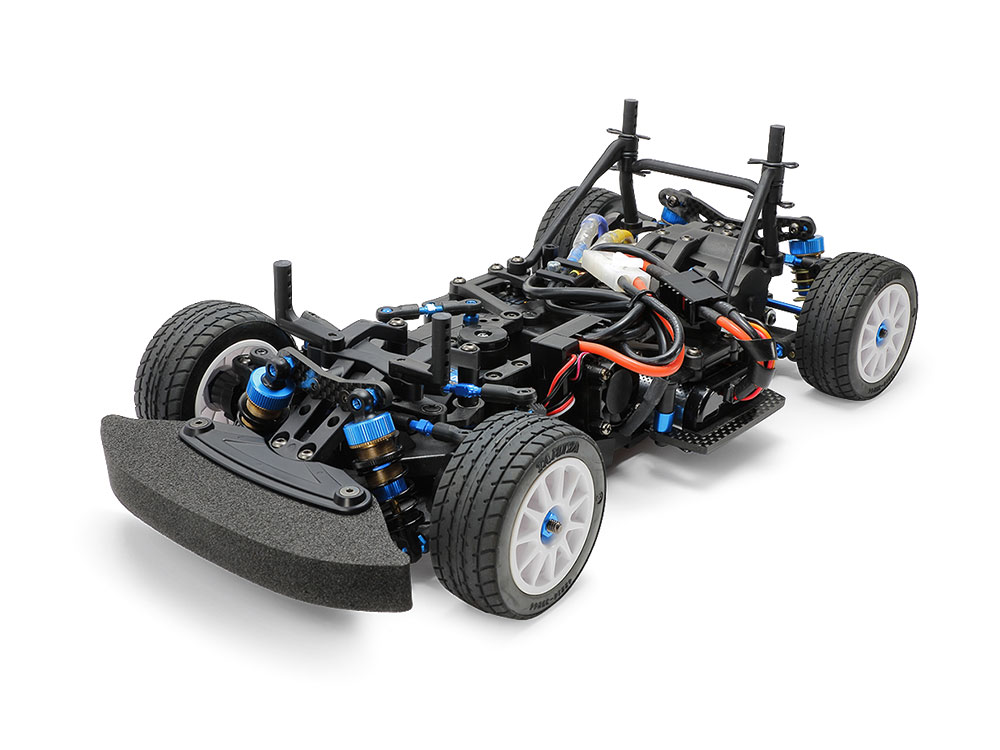

Tamiya 47480 1/10 R/C M-08R Chassis Kit

Be the first to review this product

Manufacturer: Tamiya

Availability: Out of stock

SKU: 47480

$519.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

RWD Racer
The M-08R adds a plethora of race-spec parts to the balanced, compact RWD M-08 Concept chassis: an example being the hopped-up drivetrain with a ball differential, universal shafts featuring low-friction cross joints and lightweight aluminum swing shafts, plus 5mm wheel hubs. Turnbuckle shaft suspension arm and steering setup components simplify fine-tuning of the M-08R, and titanium-coated shafts are a durable inclusion in the kit. Carbon fiber damper stays are paired with M-Chassis big bore aluminum dampers+ featuring dedicated blue anodized top and bottom caps for a touch of class, while a 20-gram ballast weight is included to get the chassis feeling just how you want it to.

★Turnbuckle shafts in the steering can be rotated to fine-tune setup. A hi-torque servo saver is included in the kit as standard.

★High performance M-chassis aluminum big bore dampers+ are included, and feature blue anodized top and bottom caps for a classy look.

★Upper arms are also a turnbuckle shaft design. Clamp type wheel hubs (5mm) and reinforced freewheel axles are also in the box.

★Battery holders are crafted in 3mm thickness carbon fiber material. Use the provided sponge tape as necessary to ensure snug battery fit.

★A midship motor powers the rear wheels. The sealed rear gearbox houses a ball differential for limited-slip diff effect.

★This image goes close-up on the double wishbone rear suspension. Note the carbon fiber damper stay for the big bore aluminum dampers.

★Left: Universal drive shafts employ lightweight 33mm aluminum swing shaft and cross joint for LF assembly type universal shafts.

★Right: Long suspension arms help the M-08R to maintain a stance low to the ground. A urethane bumper is included in the kit.

Featured Components
Drivetrain: ●Full ball bearings ●Ball differential (52T) ●33mm lightweight aluminum swing shafts ●Cross joint for LF assembly type universal shafts ●06 module fluorine coated 20T pinion gear ●M-08 Concept aluminum shafts ●M-Chassis reinforced freewheel axles ●5mm clamp-type wheel hubs
Suspension: ●Carbon fiber damper stays (front/rear) ●Reinforced D parts (suspension arms) ●Aluminum turnbuckle shafts ●Titanium coated suspension shafts ●5x5mm, 5x11mm hard hex head ball connectors ●M-Chassis big bore aluminum dampers+ ●3x 1.3mm-hole pistons ●4mm aluminum serrated wheel nuts (blue) ●5mm reinforced open face adjusters
Chassis: ●Carbon fiber battery holder ●Carbon fiber body mount base ●Reinforced K parts (gearbox) ●Chassis balance weight (20g) ●Hi-torque servo saver ●Aluminum ball connectors (blue) ●Hex head screws

Included Parts	Included Parts
Item 54306 TA06 Rear Ball Differential Set (52T)	Item 54969 33mm Lightweight Aluminum Swing Shafts (2pcs.)
Item 42357 Cross Joints for Low Friction Assembly Universal Shafts	Item 53509 Hard Fluorine Coated 0.6 Aluminum Pinion Gear (20T/F201)
Item 54906 M-08 Concept Aluminum Shaft Set	Item 54183 M-Chassis Reinforced Freewheel Axle Set
Item 53823 Clamp Type Aluminum Wheel Hub (5mm Thick)	Item 54908 M-08 Concept Carbon Body Mount Base
Item 54983 M-08 Concept Reinforced K Parts (Gearbox)	Item 51000 Hi-Torque Servo Saver (Black)
Item 53642 5mm Aluminum Ball Connector (Blue)	Item 54811 M-07 Concept Reinforced D Parts (Suspension Arms) 2pcs.
Item 54247 3x18mm Aluminum Turnbuckle Shaft (2pcs.)	Item 54248 3x23mm Aluminum Turnbuckle Shaft (2pcs.)
Item 53851 46mm Titanium Coated Suspension Shafts 2pcs.	Item 53917 2.6mm Titanium Coated Suspension Shaft Set for Reversible Suspension
Item 54249 3x32mm Aluminum Turnbuckle Shaft (2pcs.)	Item 53968 5x5mm Hard Hex Head Ball Head Connector (5pcs.)
Item 54889 M-08 Concept Carbon Damper Stay (Front)	Item 54890 M-08 Concept Carbon Damper Stay (Rear)
Item 42355 M-Chassis Aluminum Big Bore Dampers+ (4pcs.)	Item 42143 4mm Aluminum Serrated Wheel Nut (4pcs./Blue)
Item 54868 Open Face 5mm Reinforced Adjusters (Medium/8pcs.)	Item 54869 Open Face 5mm Reinforced Adjusters (Long/8pcs.)

Specifications
★Length: 319mm (with 225mm wheelbase), width: 165mm ★Alterable wheelbase: 210mm, 225mm, 239mm ★Monocoque frame with separate front and rear sections ★Midship motor, rear-wheel drive ★Ball differential ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★M-Chassis big bore aluminum dampers+ ★Gear ratio = 5.776:1 (using kit 20T pinion); 8 ratios between 6.795:1 and 4.813:1 are possible with separately sold pinions) ★Electronic speed controller (ESC) is sold separately.

Separately Required Items
★Body ★Type 540 motor (brushless is recommended) ★Tires ★2-channel R/C system w/ESC ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger
