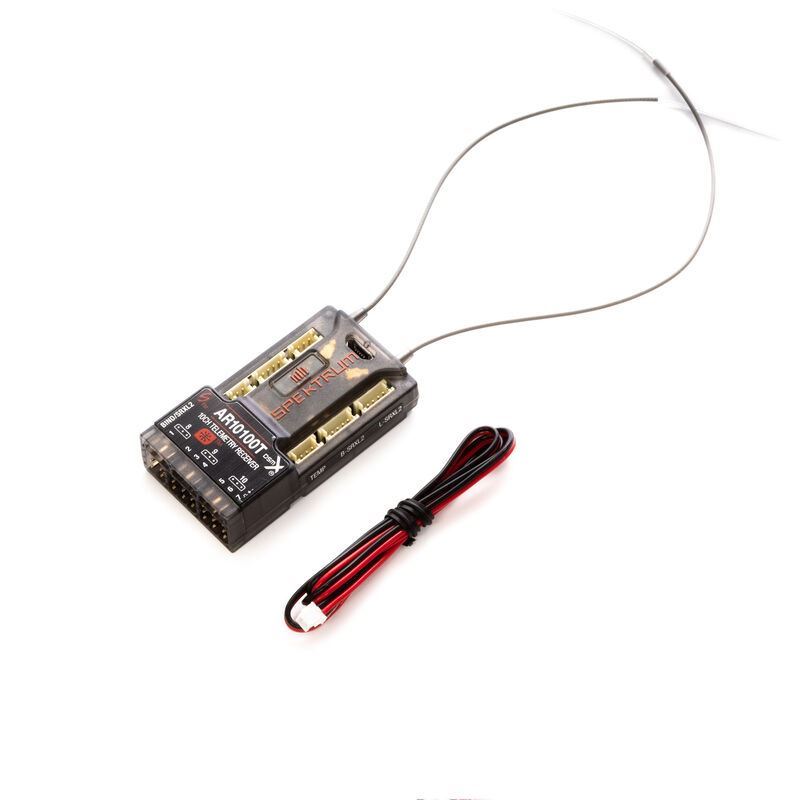

Spektrum AR10100T 10ch Telemetry RX DSM2/DSMX With Barometer (Replaces AR9030T)

Be the first to review this product

Manufacturer: Spektrum

Availability: Out of stock

SKU: AR10100T

$299.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Product Details

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft.

Key Features

Compact footprint to fit in a wide range of aircraft
Full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase
Features a bind button for easy binding with no plugs necessary
Features a Micro USB connection for easy registration and updating with any micro USB cable using Spektrum's PC Programmer application

In The Box

(1) AR10100T DSMX 10-Channel Telemetry Receiver
(1) Spektrum Flight Pack Voltage Sensor
(1) Product Manual

Needed to Complete

(1) Telemetry Capable DSMX Transmitter
Servo extension(s) may be required

Features

Compatible with all Spektrum DSM2 and DSMX transmitters
Compact footprint fits most parkflyer size, sport class and giant scale models
Features full range telemetry, integrated barometer to provide altitude and vario telemetry data without the need of additional sensors
VOLT, RPM and TEMP telemetry ports can be used with traditional Spektrum Telemetry Sensors
XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more
Micro USB port for easy registration and firmware updating capability

Bind button allows for easy binding and eliminates the use of bind plug
Two external antennas will ensure secure RF coverage from all angles of the aircraft
Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, sold separately
Ready to use with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires
End pin output pins for easy and compact installation
Forward Programming capable for setting individual failsafe parameters per channel and more

Overview

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to fit in a wide range of aircraft. It features a full range telemetry, integrated barometer to provide altitude and vario telemetry data without additional purchase. Included XBUS and temperature ports can be used to add additional telemetry sensors available separately. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates via the Spektrum PC Programmer Application. The AR10360T It also features 2 SRXL2 ports for added SRXL2 Remote Receivers (SPM9747 or SPM4651T), available separately, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect smart devices, bind with a traditional bind plug, or connect a battery. The AR10100T also features a bind button for easy binding with no plugs necessary and offers both SmartSafe'" technology and Hold Last as well as preset failsafe types set through forward programming. Also, the throttle port is Smart ESC compatible right out of the box.

SMART TELEMETRY

To enjoy the full benefits of Smart™ technology, use the AR10100T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Vital telemetry data such as current, voltage, temperature and RPM is sent directly to your transmitter in real time.

INTEGRATED BAROMETER

The Spektrum™ AR10100T receiver features an integrated barometer (built-in pressure sensor) to provide altitude and vario telemetry data to your telemetry capable Spektrum Transmitter, without the need to purchase additional sensor modules.

Antenna Length	7.32" (186 mm)
Band	2.4GHz
Bind Method	Bind Button
Channels	10
Data Port	Yes
Dimensions	55 x 30 x 15mm (2.16 x 1.18 x 0.59 in)
Failsafe	Yes
Input Voltage	3.5V–9V
Modulation	DSMX/DSM2
Product Weight	18g
Programmable	Yes
Range	Full
Telemetry	Yes
Water-Resistant	No
