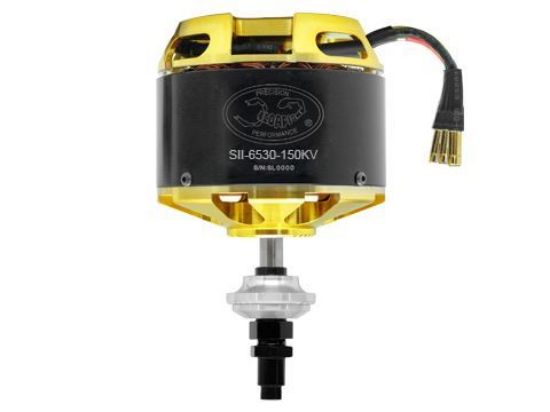

Scorpion SII-6530-150KV Motor

Scorpion SII-6530-150KV Motor
Manufacturer: Scorpion Power System
Availability: Out of stock
SKU: SII-6530-150KV
Ship to
Shipping Method
Estimated Delivery
No shipping options

Product Description

Scorpion SII-6530 series is the second generation of high efficiency electric motor from Scorpion that are widely used in the size of 80cc airplane and as an upgrade version of Scorpion S-5545 series, with proven technology in new magnet configuration and housing designs to provide higher efficiency, higher power, less eddy current losses with lower internal resistance than our previous S-55 series

Scorpion starts with premium quality of high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-coated to provide a beautiful, long-lasting finish. The stators are made by top grade 0.35mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship.

HK Design Patent No. : 1201208.6

CN Design Patent No. : 201230267986.0

Taiwan Design Patent No.: 101303643

All other worldwide Patent: Pending

Scorpion SII-6530-150KV


Stator Diameter65mm (2.559 in)
Stator Thickness30mm (1.181 in)
No. of Stator Arms12
Magnet Poles14
Motor Wind18 Turn Delta
Motor Wire14-Strand 0.41mm
Motor Kv150KV RPM / Volt
No-Load Current (Io/10V)1.15 Amps
Motor Resistance (Rm)0.032 Ohms
Max Continuous Current95 Amps
Max Continuous Power4220 Watts
Weight1043 Grams (36.79 oz)
Outside Diameter76.6 mm (3.015 in)
Shaft Diameter7.98 mm (0.314 in)
Thread sizeM8*1.0
Body Length70.4 mm (2.772 in)
Overall Shaft Length115.9 mm (4.563 in)
Max Lipo Cell12s
Motor Timing5deg
Drive Frequency8kHz
Max Peak Current140Amps @ 2sec
Max Peak Power5800 Watts @ 2sec

Included in the Box

1x Scorpion SII-6530-150Kv Motor
3x Female Connectors
3x Heat Shrink
4x Screw
1x Thrust washer
1x tapered collar
1x spacer collar
1x Prop washer
1x Prop nut
2x Nut lock

Weight including packaging


Data Chart

View Scorpion SII-6530-150KV Data Chart

Full Dimension

View Scorpion SII-6530-150KV Full Dimension
