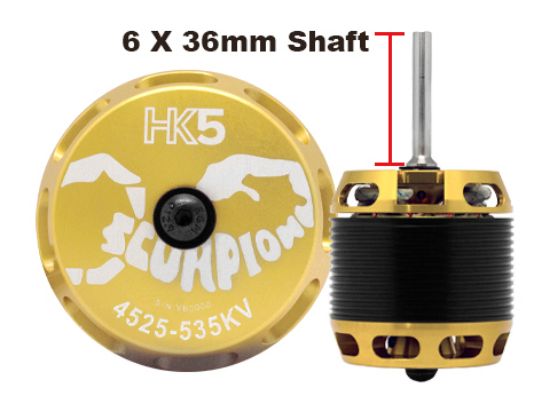

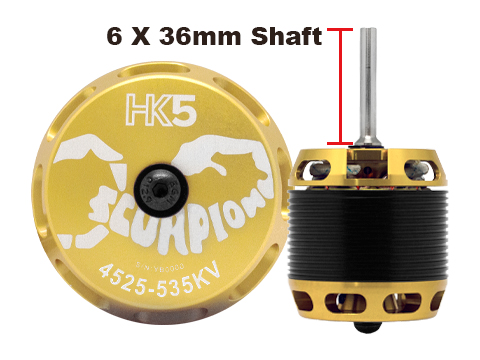

Scorpion HK5-4525-535kv HK5 - Series Brushless Helicopter Motor- (6 x 36mm shaft)

Manufacturer: Scorpion Power System
Availability: 1 in stock
SKU: HK5-4525-535kv
$689.90

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

The HK5-4525-535kv is designed for 700 size helicopters on 12s lipo, or other UAV application requiring up to 10,200w of power.

Scorpion HK5-4525-535KV (6 x 36mm shaft) featuresScorpion HK5-4525-535KV (6 x 36mm shaft) featuresScorpion HK5-4525-535KV (6 x 36mm shaft) featuresScorpion HK5-4525-535KV (6 x 36mm shaft) featuresScorpion HK5-4525-535KV (6 x 36mm shaft) features

Full Dimension

Scorpion HK5-4525-535KV (6 x 36mm shaft) Full Dimension

Specifications

Motor Kv535KV RPM/Volt
Weight532 Grams ( 18.76oz)
Motor Body Dimensions57.5 mm x 61.5mm (2.26" x 2.42")
External Shaft Dimensions5.98mm x 36mm (0.235" x 1.41")
Continuous Current115 Amps
Continuous Power5106 Watts
Peak Current230A (2 seconds)
Peak Power10200 Watts (2 seconds)
Max Lipo Cell12s
Stator Diameter45 mm (1.57 in)
Stator Thickness25 mm (1.18 in)
No. of Stator Arms12
No. of Stator Poles10
Motor Wind5+6T YY
Motor Wire1.4mm

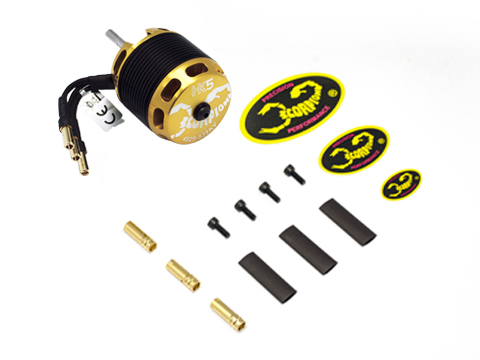

Included in the Box

1 x Scorpion HK5-4525-535kv BLDC Motor
3 x 6mm Female Bullet Connectors + Heat Shrink
1 x Hardware pack (M4 Bolts)

Weight including packaging

780g
