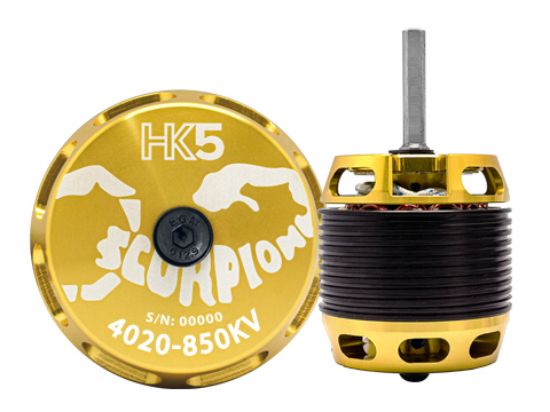

Scorpion HK5-4020-850kv HK5 - Series Brushless Helicopter Motor

Be the first to review this product

Manufacturer: Scorpion Power System

Availability: 2 in stock

SKU: HK5-4020-850kv

$439.90

Qty:

We introduce the fifth generation of Scorpion's renowned and award winning "HK - Series" motors. The Scorpion "HK5 - Series"

The HK5 Series lives up to and exceeds our standards of the most Powerful and Efficient motors, with market leading Torque per Amp capabilities. In addition, on the HK5 series we focused specifically on motor cooling and motor temperature. With an all new Internal Fan design, combined with our proven external centrifugal fan, we have nearly doubled the amount of airflow passing through the motor. The result is much improved cooling, and cooler operating temperatures.

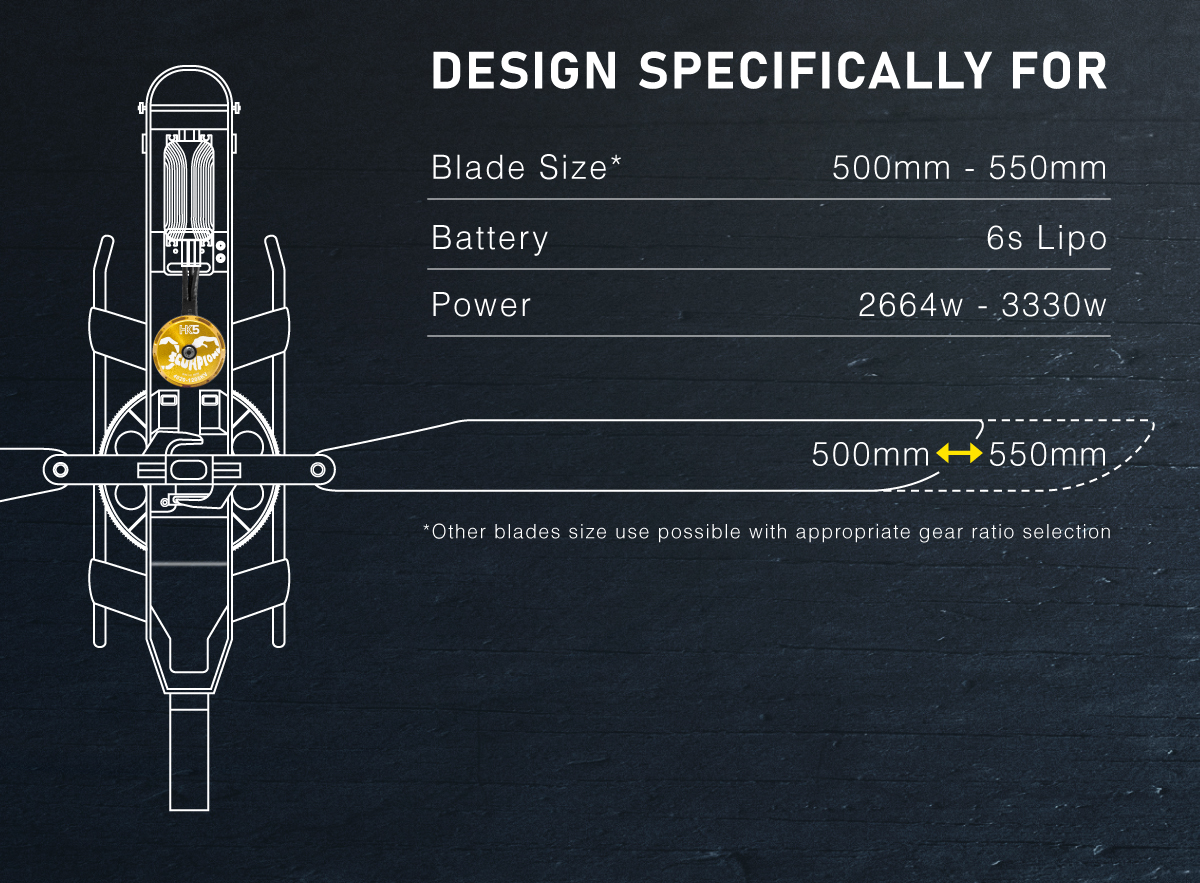

The HK5-4020-850kv is designed primarily for the SAB RAW 500 helicopter based on the guidelines set forth by SAB Factory directly.

Full Dimension

Scorpion HK5-4020-850kv Full Dimension

Specifications

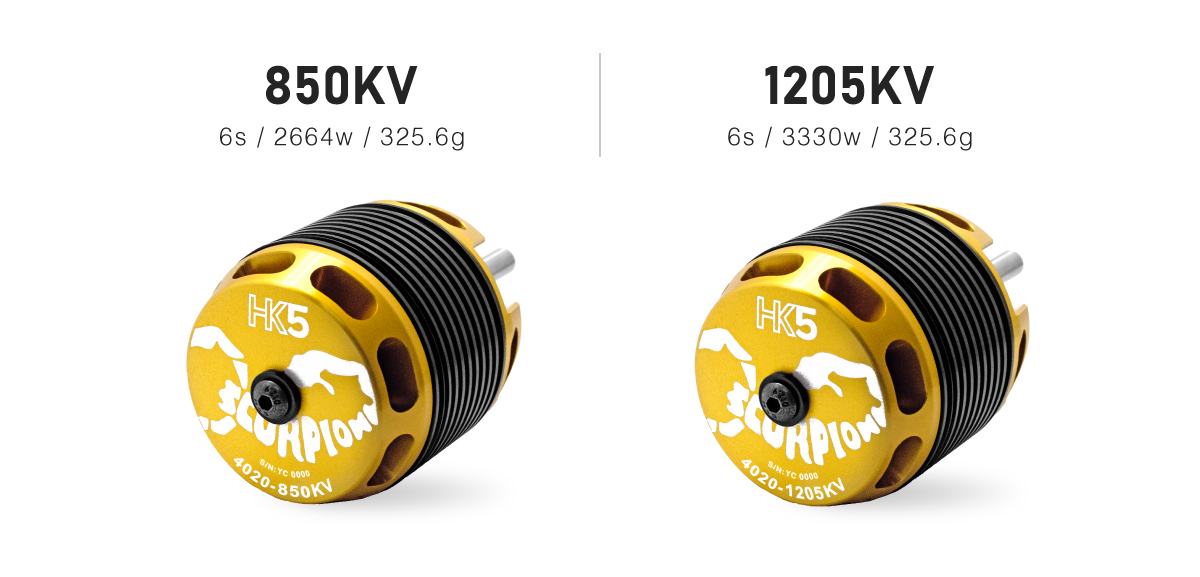

Motor Kv	850KV RPM/Volt
Weight	325.6g Grams ( 11.48oz)
Motor Body Dimensions	49.5mm x 52.00mm (1.95" x 2.05")
External Shaft Dimensions	5.98mm x 32mm (0.235" x 1.26")
Continuous Current	85 Amps
Continuous Power	1900 Watts
Peak Current	120A (2 seconds)
Peak Power	2664 Watts (2 seconds)
Max Lipo Cell*	6s
Stator Diameter	40 mm (1.57 in)
Stator Thickness	20 mm (0.79 in)
No. of Stator Arms	12
No. of Stator Poles	10
Motor Wind	5+5 Turn Delta
Motor Wire	1.4mm
*Higher Cell Count possible with appropriate gear ratio adjustment

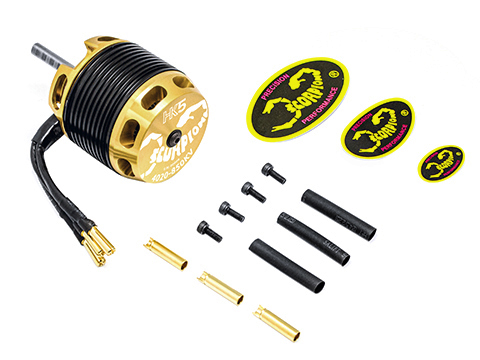

Included in the Box

1 x HK5-4020 BLDC Motor
3 x Female 4mm Connectors
3 x Heat Shrink
1 x Hardware / Accessory Pack

Weight including packaging

400g
