Scorpion SII-40 40mm Cross Motor Mount A-42

Manufacturer: Scorpion Power System
Availability: 1 in stock
SKU: CrossMount40-A-42
$21.50
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Product Description

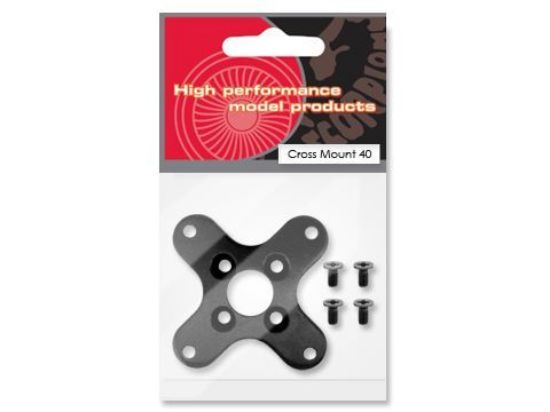

The entire Scorpion S-40mm motors series include a cross style back plate mount, but occasionally, you need a spare or a replacement. The Scorpion 40mm Cross Mount is designed to fit the back of the Scorpion S-40 series motors and provide a method on mounting the motor to a model's firewall.

The Scorpion 40mm Cross Mount is made from strong aluminum alloy and finished in a durable and attractive black Electro-Coat finish. The mount comes packaged with four 4mm machine screws to attach it to the back of your motor. The mount weighs 16 grams by itself, and with the 4 screws, it weighs 19.5 grams. The hole spacing on the back of the mount where the motor attaches measures 25mm center to center in both directions. The spacing of the outer holes is a square pattern that measures 41mm side to side and 58mm on the diagonal.

Weight including packaging

33.6g

Full Dimension

View Scorpion 40mm Cross Mount Full Dimension

Customers who bought this item also bought

Scorpion 5mm Threaded Prop Adapter (48mm)

Scorpion 5mm Threaded Prop Adapter (48mm)
$12.70 Out of Stock

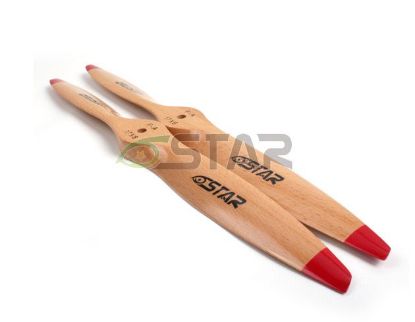

6Star SFA23-8 23x8 Beech Wooden Prop
