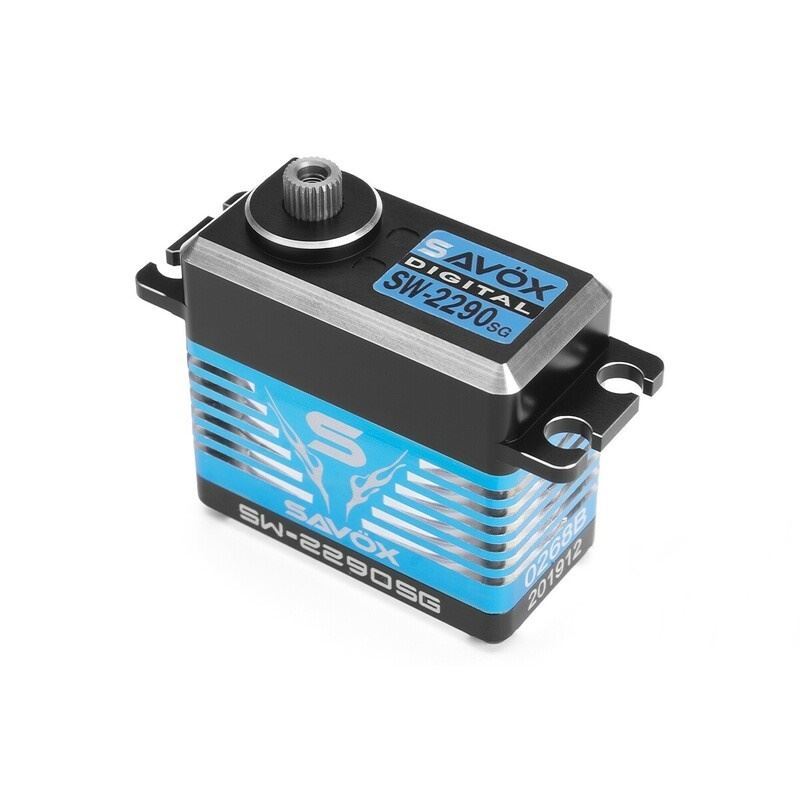

Savox SW-2290SG Monster Brushless IP67 Water Proof Full CNC Servo 50kg/cm

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Waterproof (IP67)
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:

• Torque @ 6v - 45.0kg/624.9oz-in
• Torque @ 7.4v - 55.0kg/763.8oz-in
• Torque @ 8.4v - 70.0kg/972.1oz-in
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg

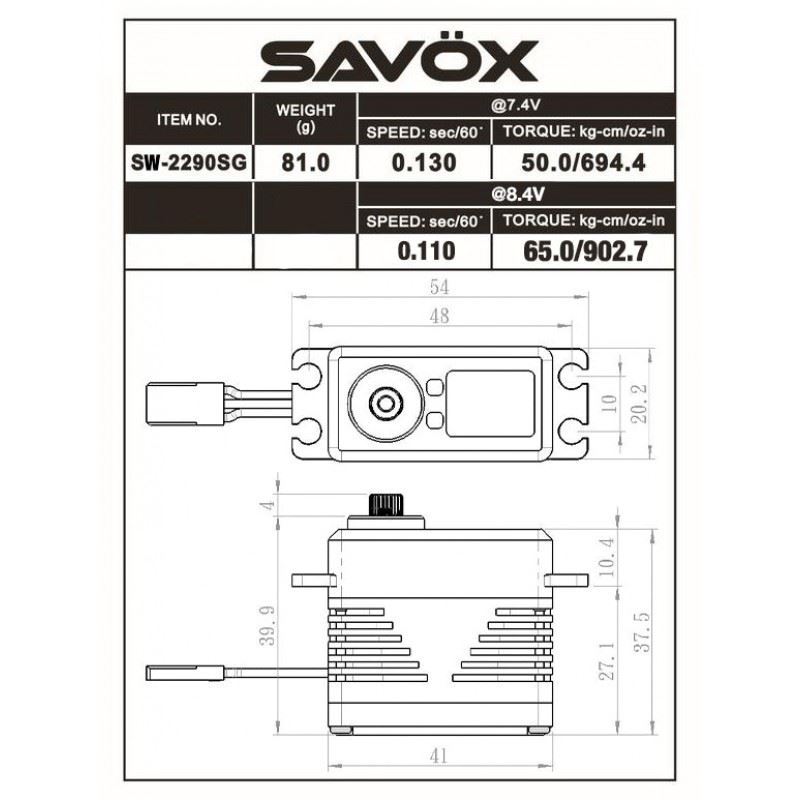

• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
• Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
