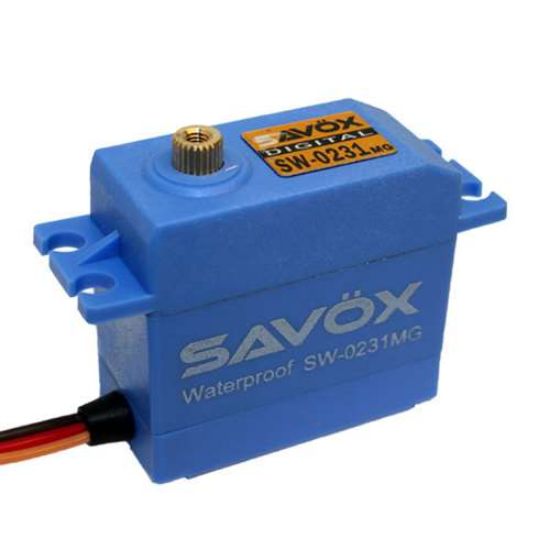

Savox SW-0231MGP Plus Waterproof High Torque STD Metal Gear Digi Servo with Soft Start

SAVÖX SW-0231MGP - Water Proof Metal-Geared Standard-Sized Servo - HV

The SW-0231MG Plus is a budget friendly, waterproof, high torque, high voltage, digital servo in a slightly taller case than most standard sizes. This is a great upgrade if your looking to drive your RC vehicle in any condition yet unable to use higher voltage to obtain more power.

Features:

• New: High voltage (max 7.4V)
• New: Lock Protection
• Strong metal gear train for added durability
• Waterproof case design (IP67)
• Ideal for cars, truck, and boats subject to water or snow
• Slightly taller case design

Specifications:

• Torque @ 4.8V: 12kg/cm
• Torque @ 6V: 15kg/cm
• Torque @ 7.4V: 25kg/cm
• Speed @ 4.8V: 0.20 sec/60°
• Speed @ 6V: 0.17 sec/60°
• Speed @ 7.4V: 0.15 sec/60°
• Dimensions L x W x H: 41.8 x 20.2 x 42.9mm
• Weight: 66g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 3800mA @4.8V, 4800mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
