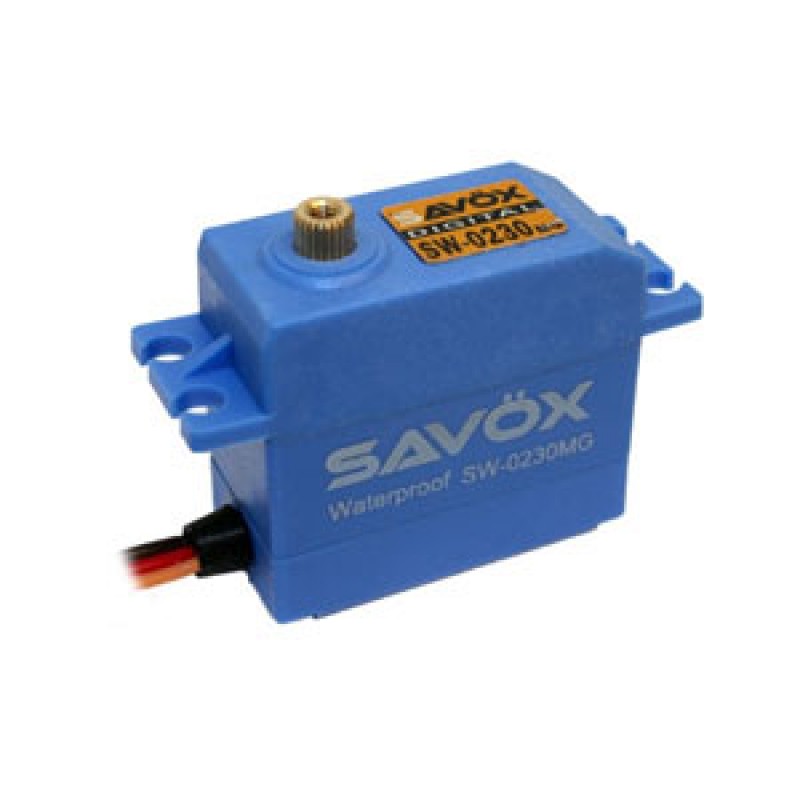

Savox SW-0230MGP Plus HV STD size Waterproof 8kg/cm, Soft Start Digital Servo

The SW-0230MG Plus is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Strong metal gear train for added durability.
• Waterproof case design.
• Capable of HV operation.
• Ideal for cars, truck, and boats subject to water or snow.
• "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Specifications:

• Torque @ 6v - 6.5kg/90.3oz-in
• Torque @ 7.4v - 8.0kg/111.1oz-in
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 41.8 x 20.2 x 38.0
• Weight: 60g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 100mA @6.0V, 120mA @7.4V
• Stall Current (at locked): 1500mA @6.0V, 1800mA @7.4V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 ± 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
