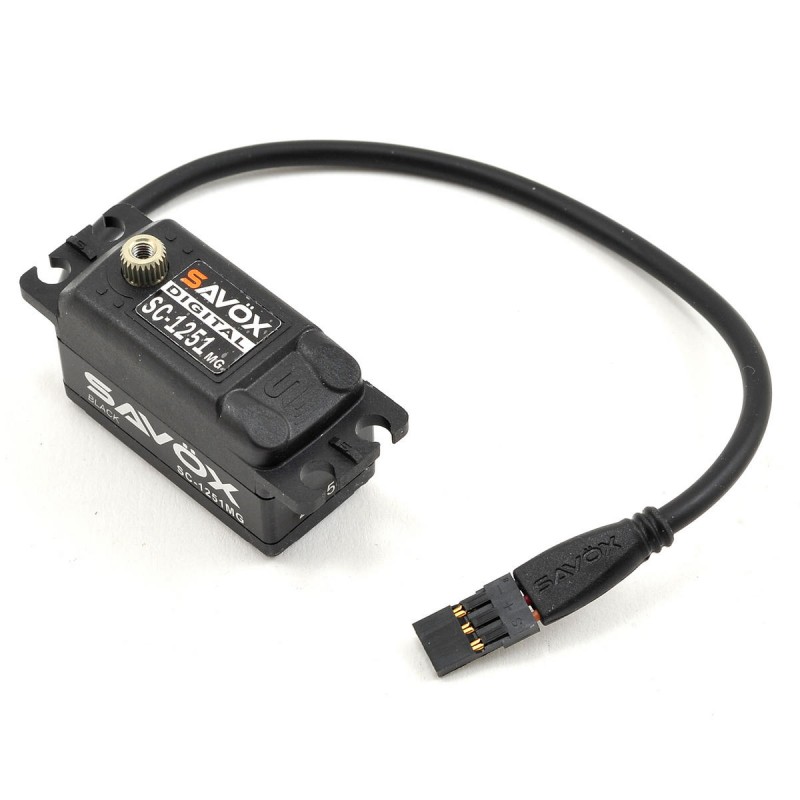

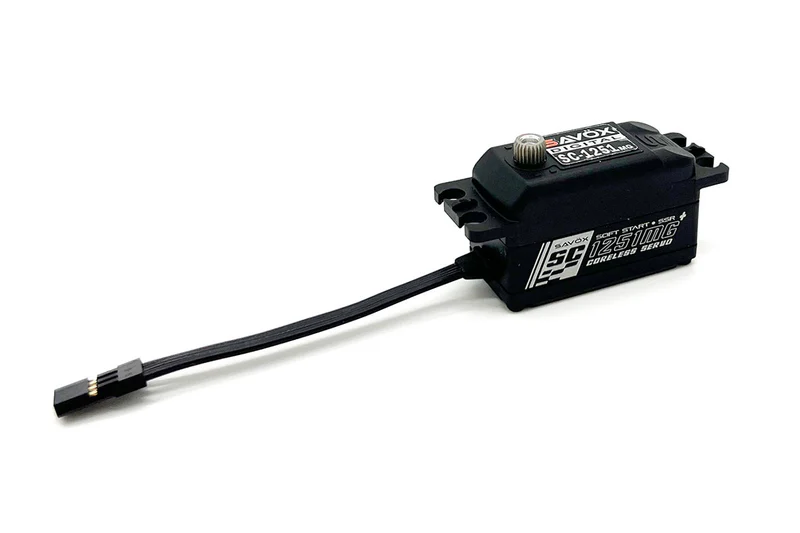

Savox SC-1251MGP-BE Plus Black Digital Low Profile Servo 9Kg with Soft Start

The SC-1251MGP-BE is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution along with an all black color for a stealth look in RC cars.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

• Metal gear train ensures durability under harsh situations.
• Sleek black design with laser etching and a shorter 200mm black lead wire
• Aluminum case provides cooler operating temperatures.

Specifications:

• Torque @ 4.8v - 7.0kg/97.2oz-in
• Torque @ 6v - 9.0kg125.0oz-in
• Speed @ 4.8v - 0.10 sec/60 deg
• Speed @ 6v - 0.09 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 25.4
• Weight: 44.5g

• Operating Temperature: 14° - 122°F (-10° - 50°C)
• Running Current (no load): 150mA @4.8V, 180mA @6.0V
• Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 60 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 90° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 950 → 2050 µ second
• Maximum Travel: Appx 160° (700 → 2300 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
