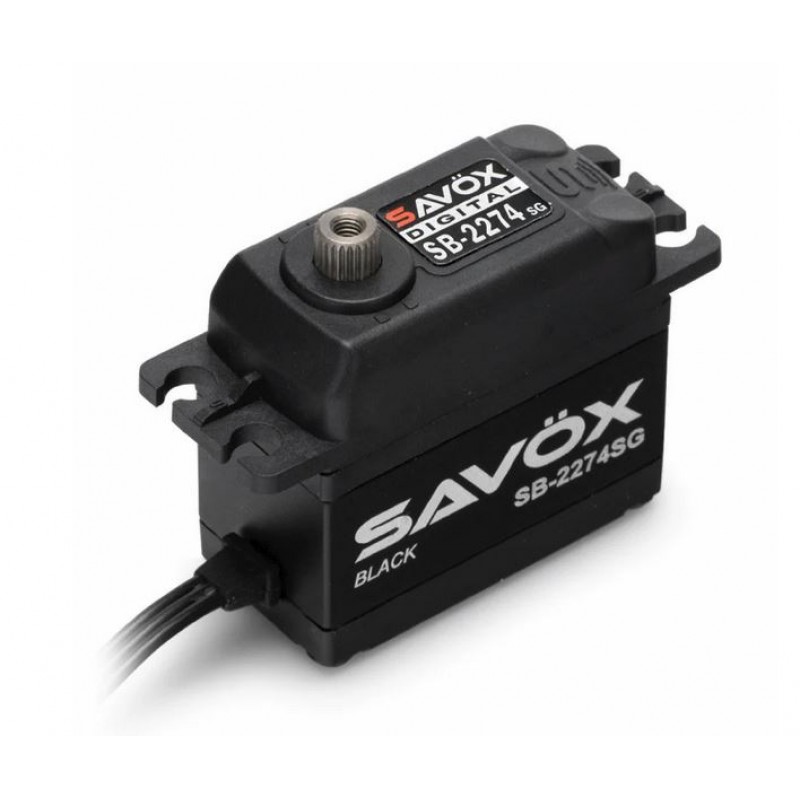

Savox SB-2274SG-BE HV STD size 30kg/cm, Digital Brushless Motor Servo

Be the first to review this product

Manufacturer: Savox

Availability: 1 in stock

SKU: SB-2274SG-BE

$189.90

Qty:

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The Savox SB-2274SG-BE High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:

Unique steel gear train.
Capable of HV operation.
Brushless motor for smooth operation and efficiency.
Ideal for 1/10, 1/8 buggies, and large scale aircraft.
SSR Mode Accepted

Specifications:

Torque @ 7.4v - 25.0kg/347.2oz-in
Torque @ 8.4v - 30.0kg/416.6oz-in
Speed @ 7.4v - 0.08 sec/60 deg
Speed @ 8.4v - 0.07 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
Weight: 69.0g

Technical Data:

Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 180mA @6.0V, 220mA @7.4V
Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
Idle Current: 5mA @6.0V, 5mA @7.4V
Wire Length: 300 +/- 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Brushless

Customers who bought this item also bought

Picture of HH22PXG90 Futaba 900mm Servo Extension Cable With Safety Hook

HH22PXG90 Futaba 900mm Servo Extension Cable With Safety Hook

HH22PXG90 Futaba 900mm Servo Extension Cable With Safety Hook

$4.80 In Stock

Picture of KUZA KAG0S72F V2 Futaba 25T/1.5" Alloy servo arm V2 2.5mm bolt (RED)

KUZA KAG0S72F V2 Futaba 25T/1.5" Alloy servo arm V2 2.5mm bolt (RED)

KUZA KAG0S72F V2 Futaba 25T/1.5" Alloy servo arm V2 2.5mm bolt

$14.50 Out of Stock

Picture of Kuza KAG015G Alloy Hub Rubber Wheels 8.5" 2pcs

Kuza KAG015G Alloy Hub Rubber Wheels 8.5" 2pcs

Kuza KAG015G Alloy Hub Rubber Wheels 8.5" 2pcs

$164.90 Out of Stock

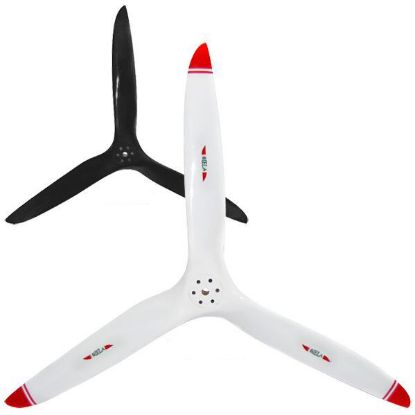

Picture of Biela 3-30X12-R-WR 30x12 3-Blade Prop. (180-200ccm)
