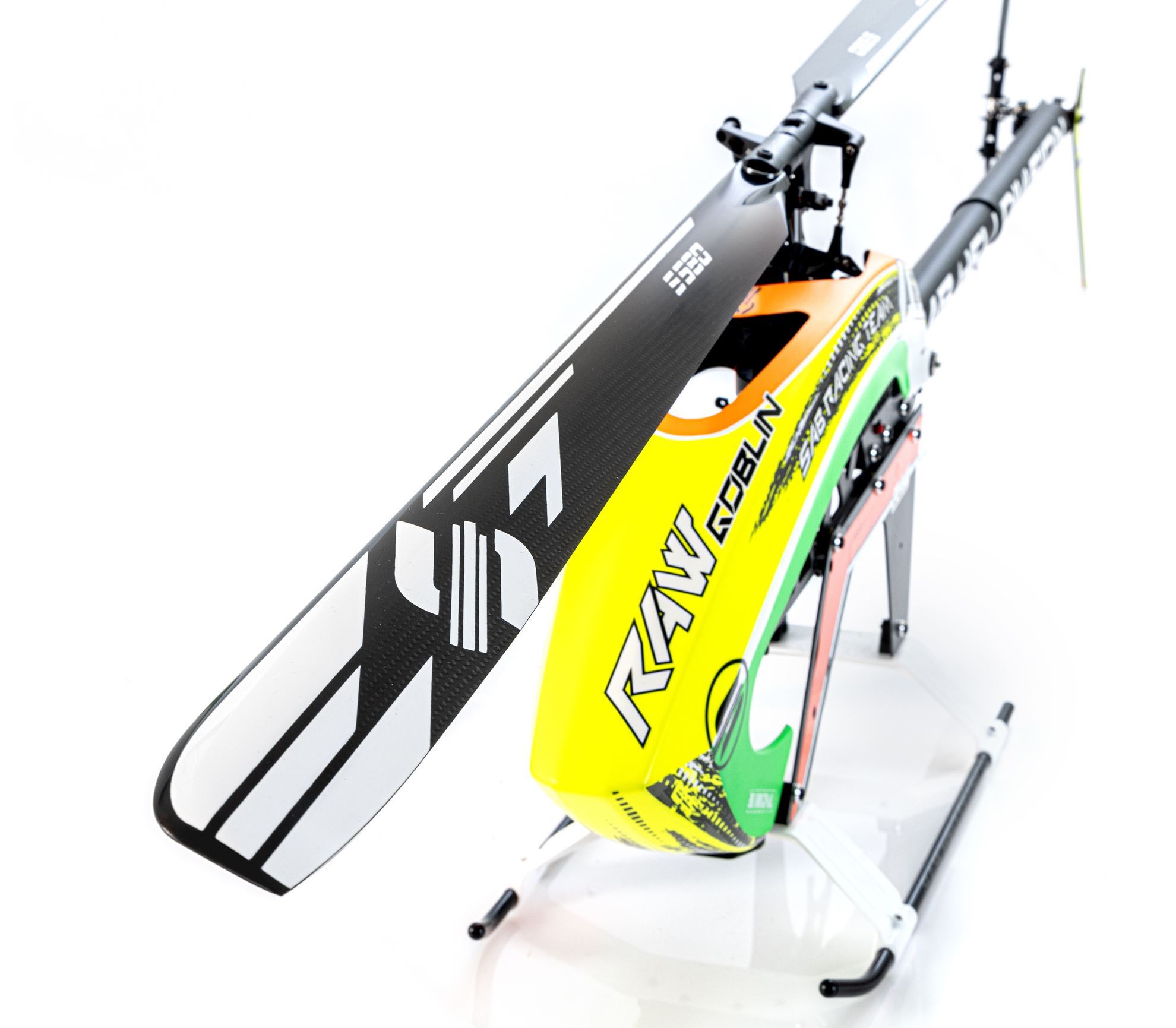

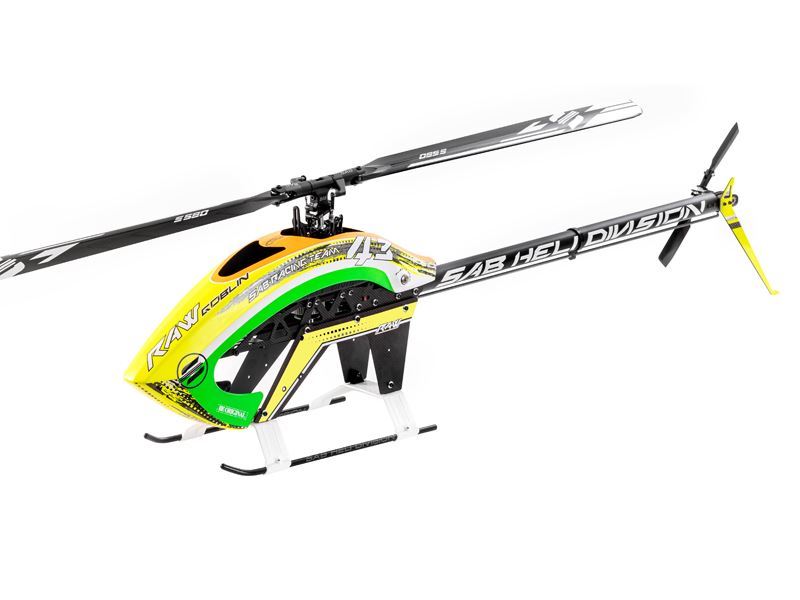

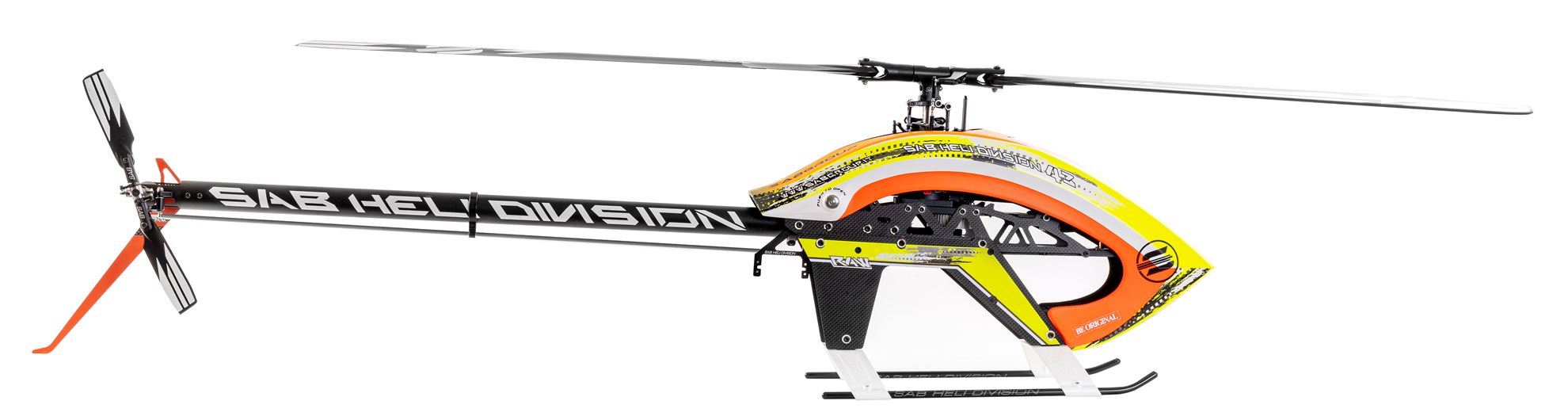

SAB SG583 GOBLIN RAW 580 Kit

Manufacturer: SAB
Availability: 2 in stock
SKU: SG583
Old price: $1,449.00
$1,289.90
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The new RAW 580 use the same module from Kraken 580.

-Incredible strong Power train enclosed in aluminum case,

-Ultra light 7075 aluminum alloy highly adjustable rotor head with super simple Tail group,

-Aluminum Boom 30 mm

-Easy maintenance

-Main blades up to 600mm.

TECHNICAL SPECITICATIONS

-AIRFRAME weight: 1740gr ( with S580 blades, no battery, no electronics )

-Main blade length: 550mm to 600mm

-Tail blade length: 95 to 105 mm

-Main rotor diameter: 1290 mm (with 580 mm blades included)

-Tail rotor diameter: 260 mm (with 95 mm tail blades included)

-Cyclic Servos: mini cyclic servo (torque over 8 Kg-cm). Kit includes servo mounts for mini-servos. Full size servo mounts available separately.

-Tail Servo: standard size 40mm.

-Main Rotor ratio : 11.5 to 8.6 :1 ( 22T included: 9.4:1)

-Tail Rotor ratio : 5.3-4.9:1 ( 23T included: 4.9:1 )

-Typical motor : 4025 series, 6S 1000-1200 Kv, 12S 500-600 Kv. Minimum motor shaft length is 26mm (We recommend using a 6mm diameter motor shaft)

-Typical speed controller: 6S 120-140 A, 12S 100-130A

-Battery size: 6S 5000/5800 mAh, 12S 2600/3200 mAh.

Customers who bought this item also bought

Theta Servos THM988 Brushless Mini High Voltage Servo

$134.90 Out of Stock

Leopard Power 6s 22.2v 5200mah 70c XT90 Lipo Battery

Leopard Power 6s 22.2v 5200mah 70c XT90 Lipo Battery
$246.70 Out of Stock

SAB H1207-S ALUMINUM REAR STANDARD SERVO MOUNT

SAB H1207-S ALUMINUM REAR STANDARD SERVO MOUNT
$24.50 In Stock

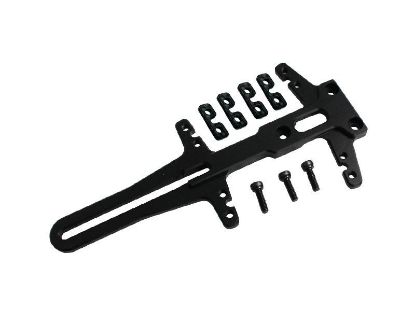

SAB H1217-S ALUMINUM FRONT STANDARD SERVO MOUNT
