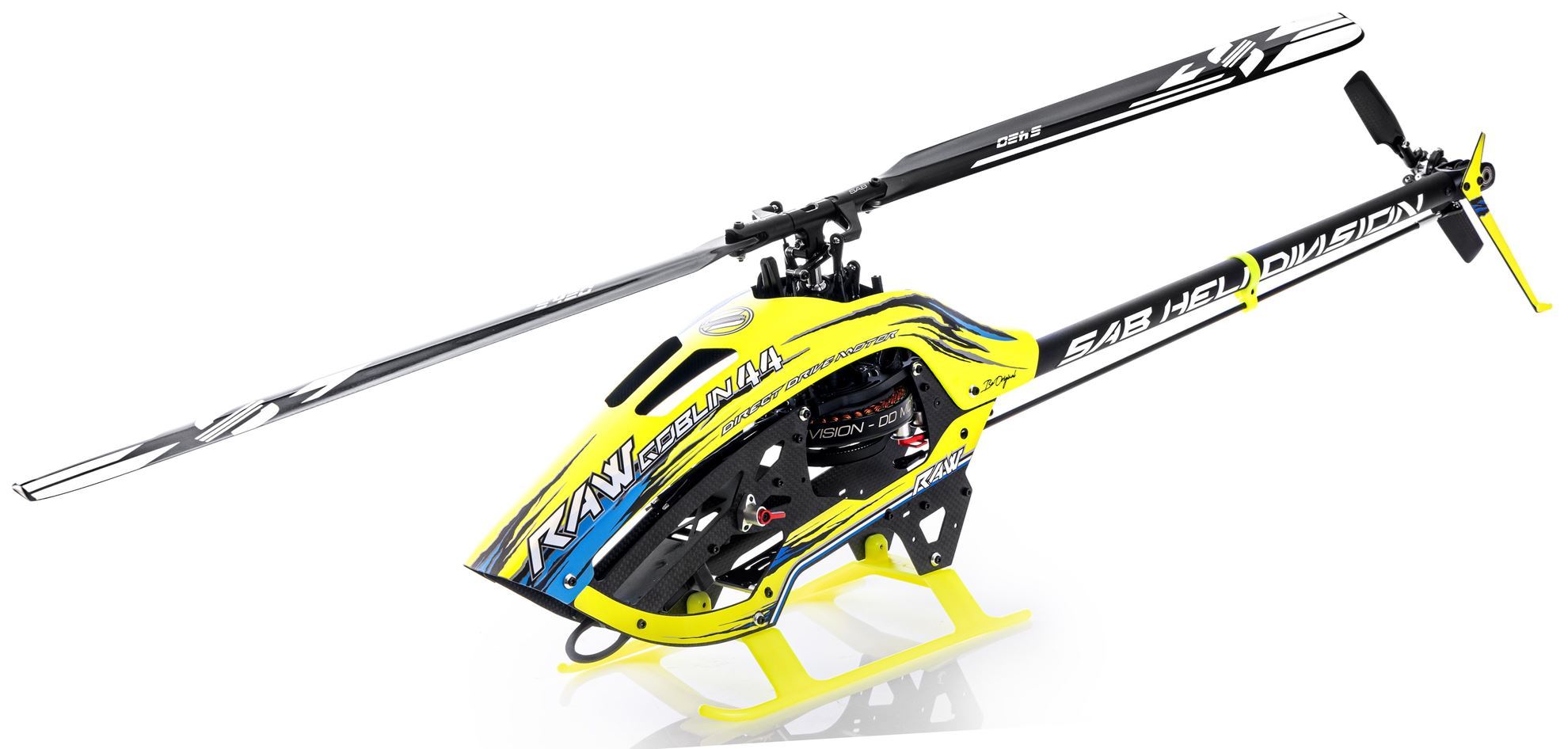

SAB SG421 RAW 420 Kit

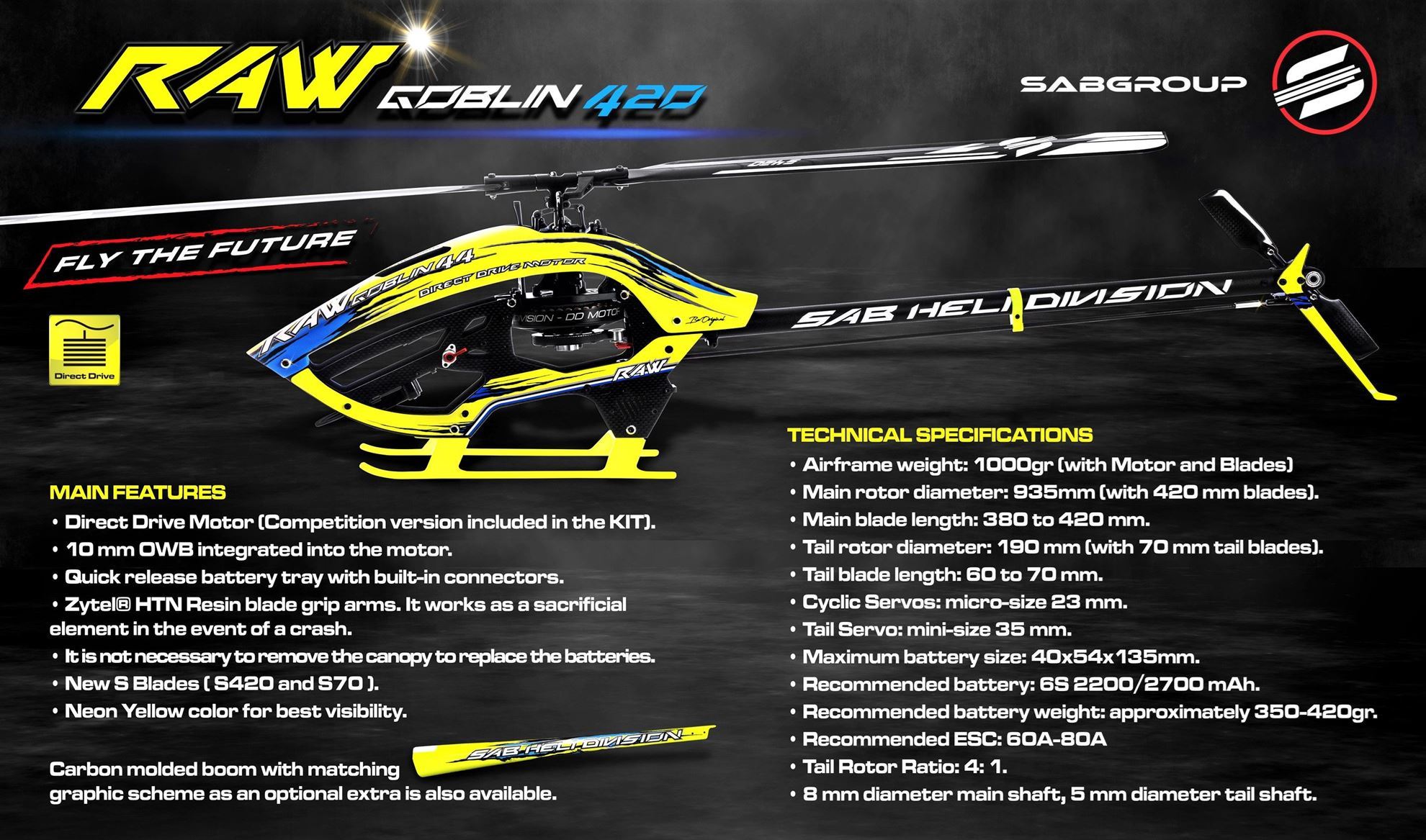

Raw 420 Main Features:

• Direct Drive Motor (Competition motor included)

• New S Line blades (420mm and 70mm included)

• Quick release battery tray with built-in connectors

• 10mm one way bearing integrated into the motor

• Zytel HTN resin blade grip arms (sacrificial)

• The canopy does not need to be removed to replace batteries

• Neon yellow color for best visibility (available initially in yellow only)

• Carbon fiber molded boom as an option also available

Raw 420 Specifications:

• Airframe weight: 1000 grams (with motor and blades)

• Main rotor diameter 935mm (with 420mm blades)

• Main blade length 380 to 420mm

• Tail rotor diameter 190mm (with 70mm tail blades)

• Tail blade length 60 to 70mm

• Micro size cyclic servos (23mm)

• Mini size tail servo (35mm)

• Maximum battery size 40x54x135mm

• Recommended battery 6s 2200/2700 mAh https://www.hobbyhangar.co.nz/maniax-power-6s-222v-2400mah-80c-lipo-battery-pack

• Recommended battery weight 350-420 grams

• Recommended ESC 60 ( 70-80A is required only for hard 3D flight with temperatures above 30°C)

• Tail rotor ratio 4:1

• 8mm main shaft

• 5mm tail shaft

• Raw 420 Main Features:

  • Direct Drive Motor (Competition motor included)

  • New S Line blades (420mm and 70mm included)

  • Quick release battery tray with built-in connectors

  • 10mm one way bearing integrated into the motor

  • Zytel HTN resin blade grip arms (sacrificial)

  • The canopy does not need to be removed to replace batteries

  • Neon yellow color for best visibility (available initially in yellow only)

  • Carbon fiber molded boom as an option also available

  Raw 420 Specifications:

  • Airframe weight: 1000 grams (with motor and blades)

  • Main rotor diameter 935mm (with 420mm blades)

  • Main blade length 380 to 420mm

  • Tail rotor diameter 190mm (with 70mm tail blades)

  • Tail blade length 60 to 70mm

  • Micro size cyclic servos (23mm)

  • Mini size tail servo (35mm)

  • Maximum battery size 40x54x135mm

  • Recommended battery 6s 2200/2700 mAh

  • Recommended battery weight 350-420 grams

  • Recommended ESC 60 ( 70-80A is required only for hard 3D flight with temperatures above 30°C)

  • Tail rotor ratio 4:1

  • 8mm main shaft

  • 5mm tail shaft
