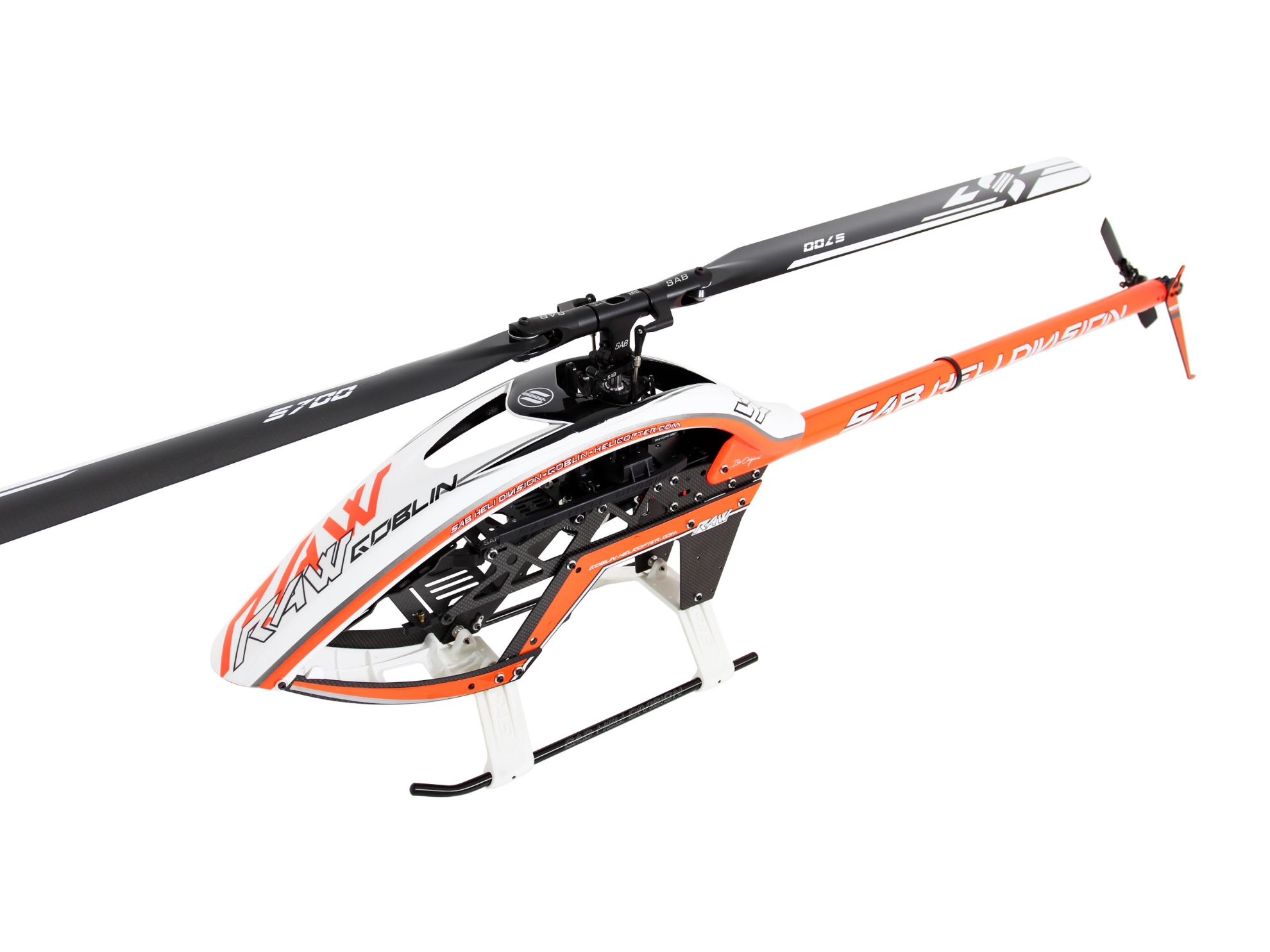

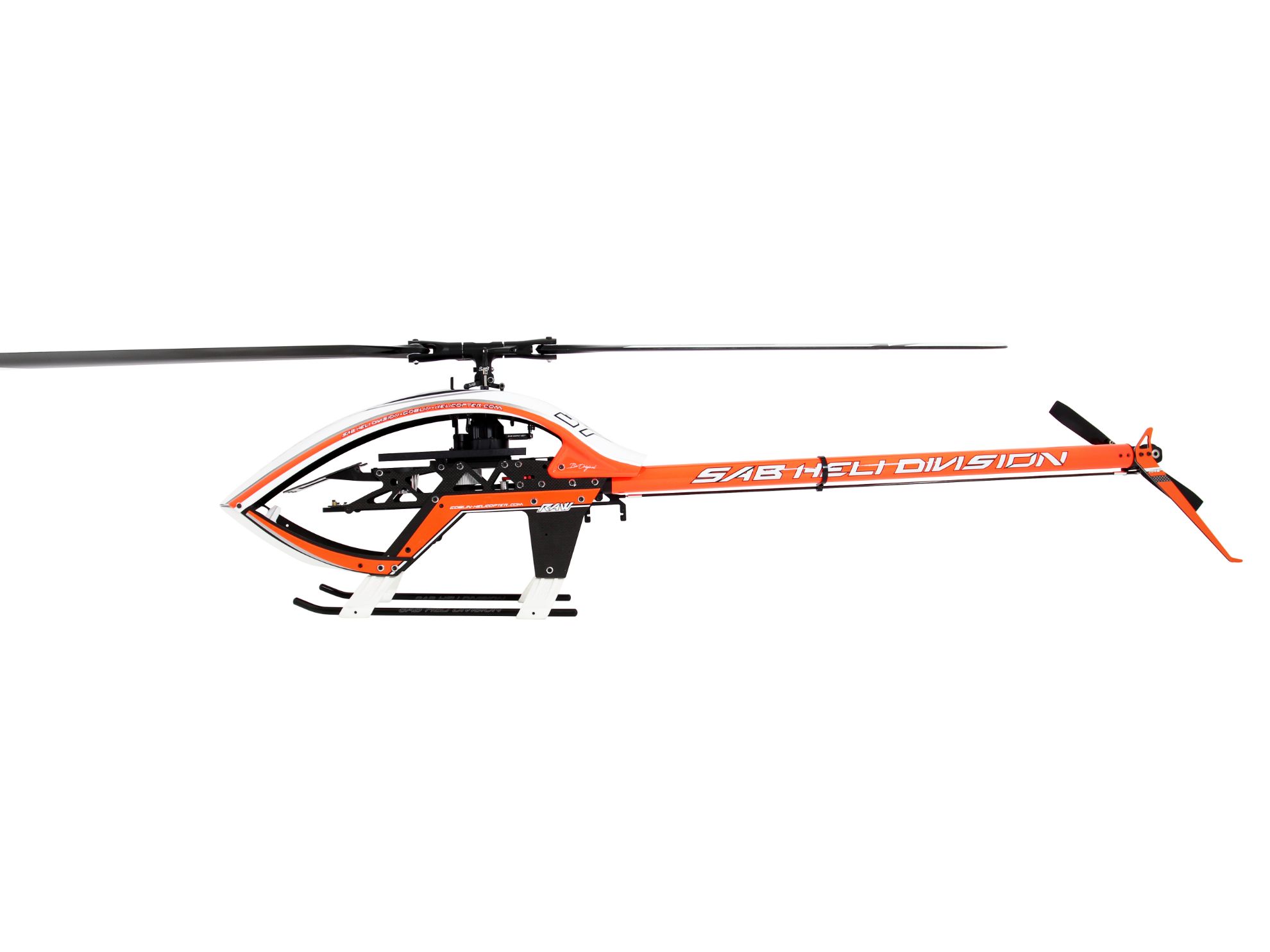

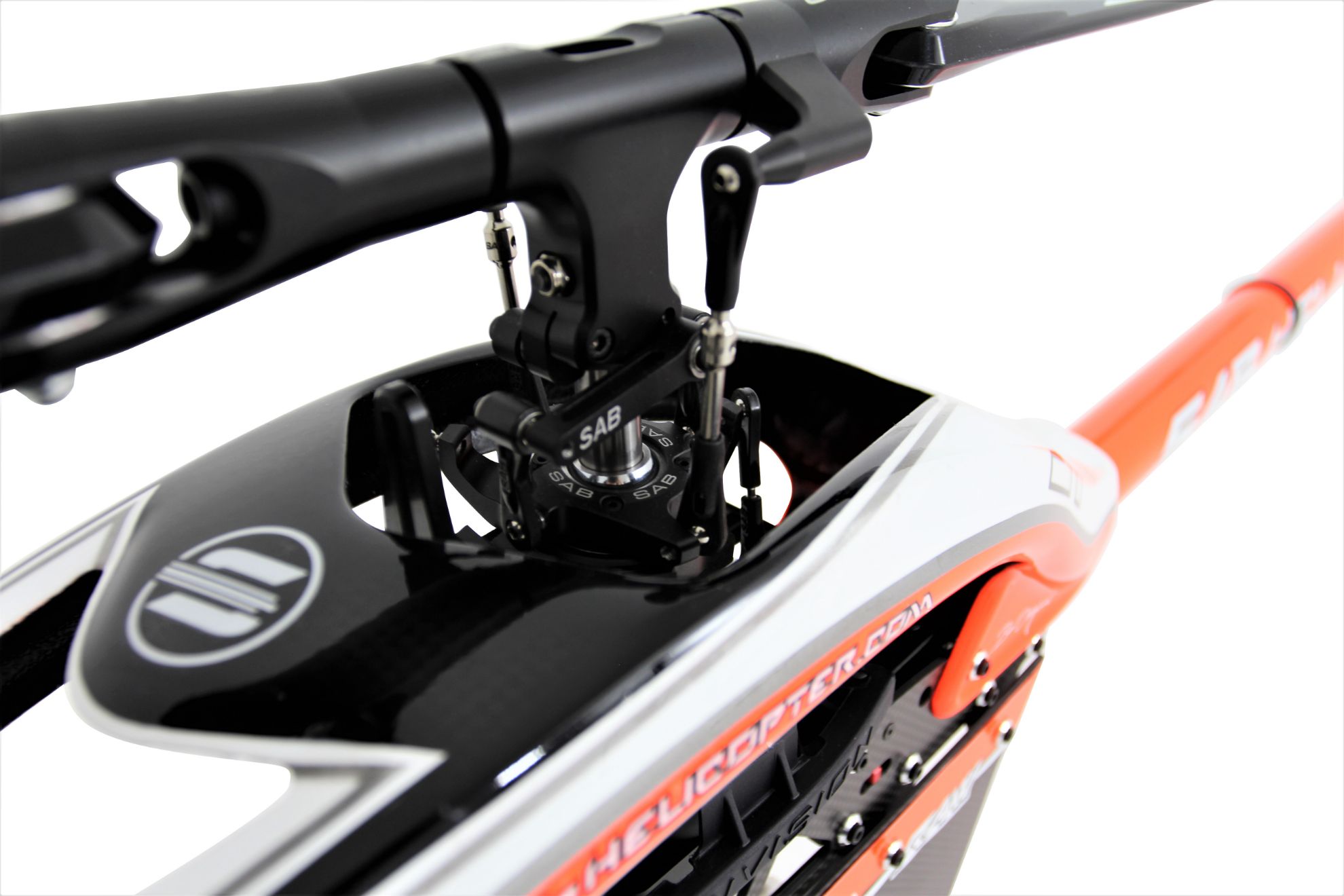

SAB Goblin SG738 Raw- Orange

TECHNICAL SPECIFICATIONS

• AIRFRAME weight: 2620gr (with blades, no battery, no electronics)

• Main blade length: 650mm to 720mm

• Tail blade length: 105 to 115 mm

• Main rotor diameter: 1548 mm (with 690 mm blades included)

• Tail rotor diameter: 284 mm (with 105 mm tail blades included)

• Cyclic Servos: standard size 40mm

• Tail Servo: standard size 40mm.

• Main Rotor ratio: 11.8 to 8.4 (21T included: 10.1:1)

• Tail Rotor ratio: 5.0-4.8:1 (26T included: 4.9:1)

• Typical motor: 4525 series

• Typical speed controller: 12S, 160-200 A

• Battery size: 12S 4500-5500 mAh.

Helicopter Main Data

Configuration	700
Available P/N	SG738
Main rotor diameter	1548mm
Main blade length	690mm
Tail rotor diameter	284mm
Tail blade length	105mm
Main shaft diameter	12mm
Tail shaft diameter	6mm
Weight	2620g (with blades, no battery, no electronic)

---

Helicopters Secondary Data

Cyclic Servos	Standard size 40mm
Tail Servo	Standard size 40mm
Typical speed controller	200A
Maximum motor size	62 mm diameter x 70 mm height

Motor KV	500-560KV
Battery compartment	56mmx60mmx320mm
Battery capacity	12S 4200/5500 mAh
Available ratios	From 8.4 to 11.8
