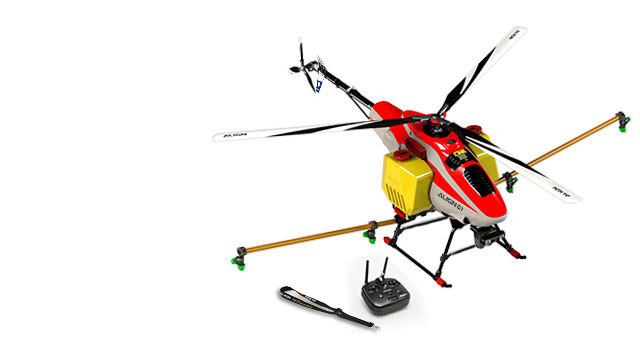

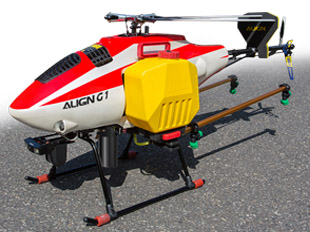

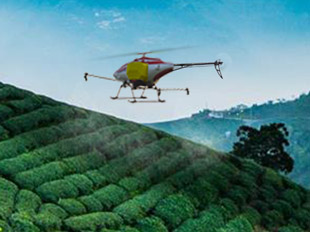

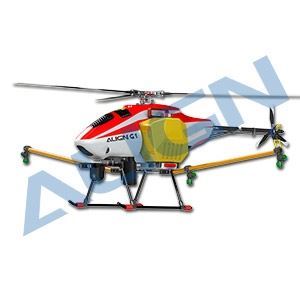

RHG1N01XW DEMETER G1 Intelligent GPS Precision Chemical Dispersion Helicopter

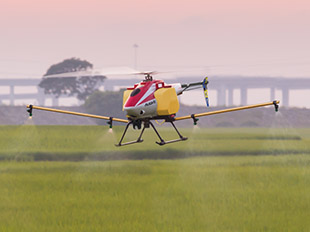

ALIGN G1 can spray up to 0.48 acres per minute, and the average work load per person is 0.24 acres every half hour. Effectively reducing manpower, time and money. The G1 is designed with automated flight controls. The helicopter has easy operations through the APP to create flight paths and spraying operations.

The helicopter uses a variety of composite technology with excellent anti-oxidation, anti-rust and anti-corrosion, improving durability and having excellent protection in harsh environments. The new main frame design uses 3K carbon fiber materials which is lightweight, durable, and provides a rigid mechanical structure.
Weather resistant design including water, dust and dirt provides multi-element protection.

The blades and spraying tubes can be quickly folded up without tools for more convenient carry.

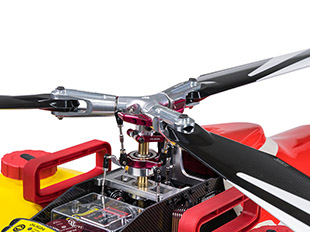

The three-blade rotor head provide superior flight stability with low CG design allow to reduce flying resistance but bring better buoyancy and more precision and rigidity response.

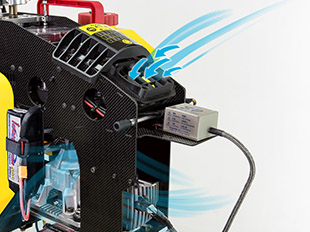

Includes a built-in cooling system to maintain low internal body temperature. The cooling system activates when the internal body temperature increases and continues to operate after the motor is turned off. The cooling system is designed to protect the motor, electronic equipment, and other parts. The APP displays internal temperature information.

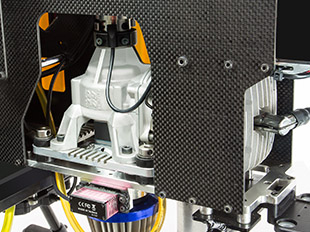

The power is a 60cc Two-stroke Engine, and this high-performance Japanese engine is recognized as the leader in agricultural applications where reliability and availability are the most critical attributes. The operating system utilizes a linerless cylinder structure with advantages including light weight, improved cooling and extremely efficient exhaust purge. Its robust architecture and operational flexibility make it ideal for a wide range of peak, cycle and base load application reliability.

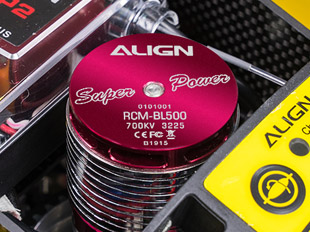

No more starter, need only AP2 flight controller and A13 GST transmitter. By pressing a button on A13 GST, you can easily start motor to prevent potential damage from rotor rotation during power on. The motor high efficiency and high torque features also allow to keep engine well balance.

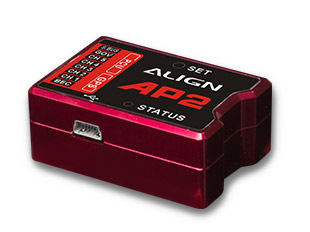

Align AP2 intelligent flight controller has built-in ARM Cortex-M4 32 bits 180MHz processor supports multiple flight modes (such as Attitude/GPS/Intelligent), Auto Return Home and Rescue Return Home, Low Voltage Protection, OSD output and Gimbal Control. Moreover, in our highly integrated ground station, the automated mapping function will compute the best spraying route for you or allow you to map preferred pattern. Other ground station functions like Optical Radar Terrain Detection System, Altitude Positioning, Equipped Video and Spray System Monitoring can also achieve advanced spray capacity for safe, efficient and convenient way to deliver superior crop protection.

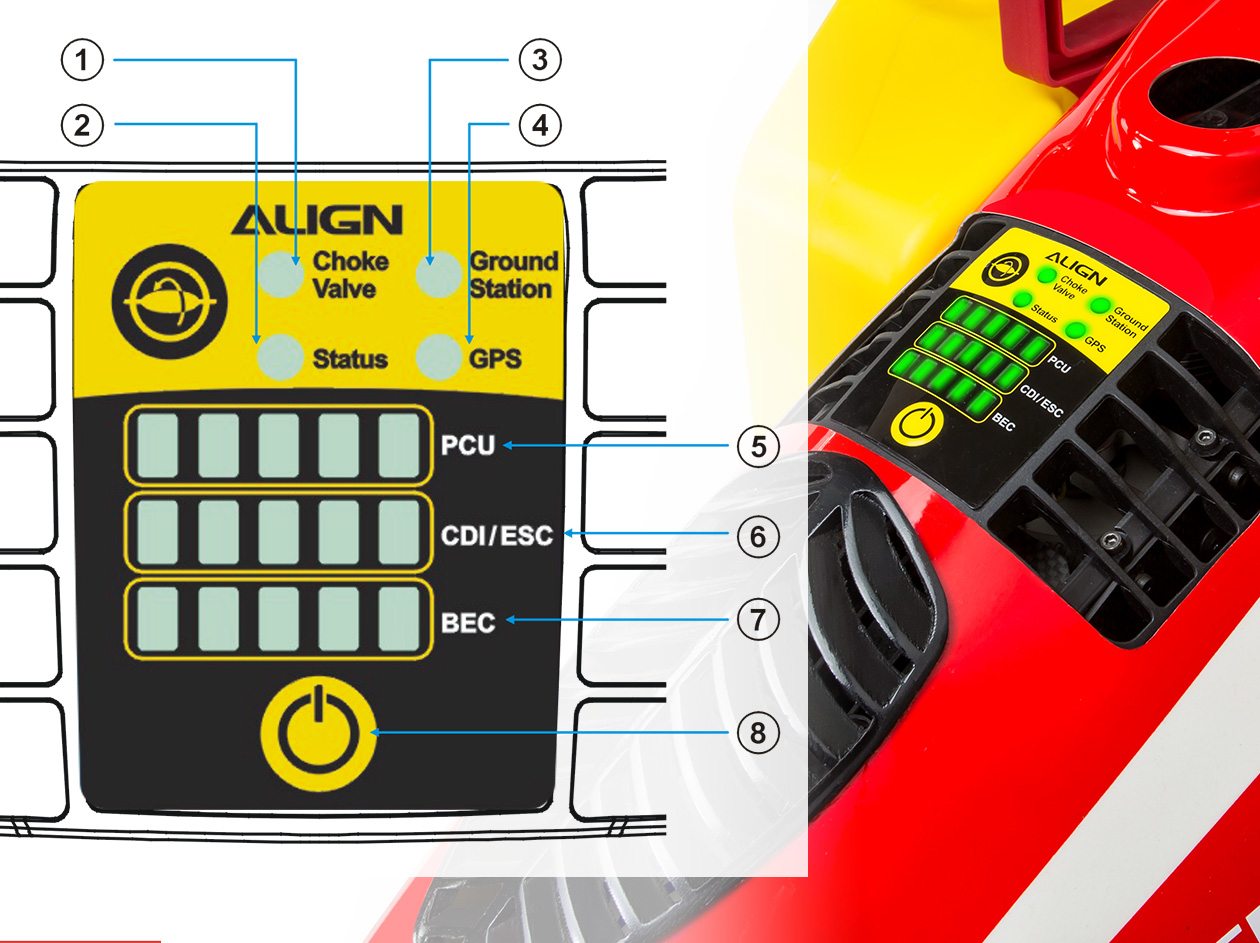

Power control panel is located in the front and on top of the canopy to allow for easy LED status checking.
(1)Choke Valve Position Indicator(Green-ON / Red-OFF)
(2)Flight Controller Status Light(Green Light-Normal / Red Light-Unnormal)
(3)Ground Station Connect Status(Green Light-Connect / Red Light-Unconnect)
(4)GPS Connect Status(Green Light-Position/Red Light- Not Position)
(5)PCU Power
(6)CDI Power
(7)External BEC Power
(8)Power Button

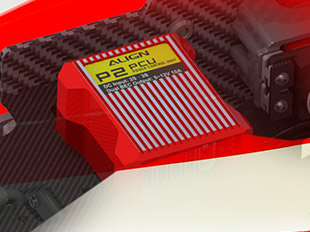

The P2 PCU(Power Control Unit) integrates into the power management system efficiently supplies power to the motor, engine starter, spray system, flight control system, the navigation system, camera, video transmission, and includes status monitoring display of all power control systems.

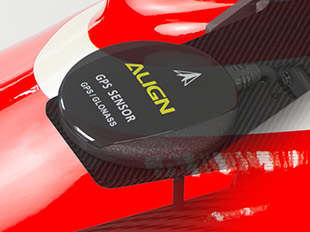

Satellite Positioning Module with (GPS + Glonass) or (GPS + BDS) provide precise, stable and fast positioning in real-time to avoid drift and frequency issue.

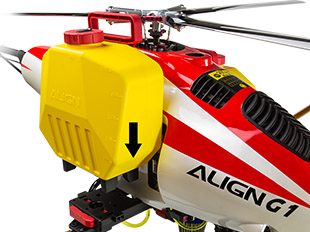

Chemical containers utilize a quick release and lock in place design. In as little as 5 seconds containers can be changed. This snap and lock feature is convenient, safe, fast, and reduces the operator’s contact with chemicals. ALIGN G1 with high load capacity includes standard equipment capable of carrying 11 liters of liquid chemicals. Capable of spraying 29 acres per hour to save labor and operating time. Built-in chemical detection module to keep an even fuel balance from both tanks.

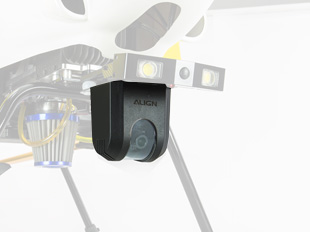

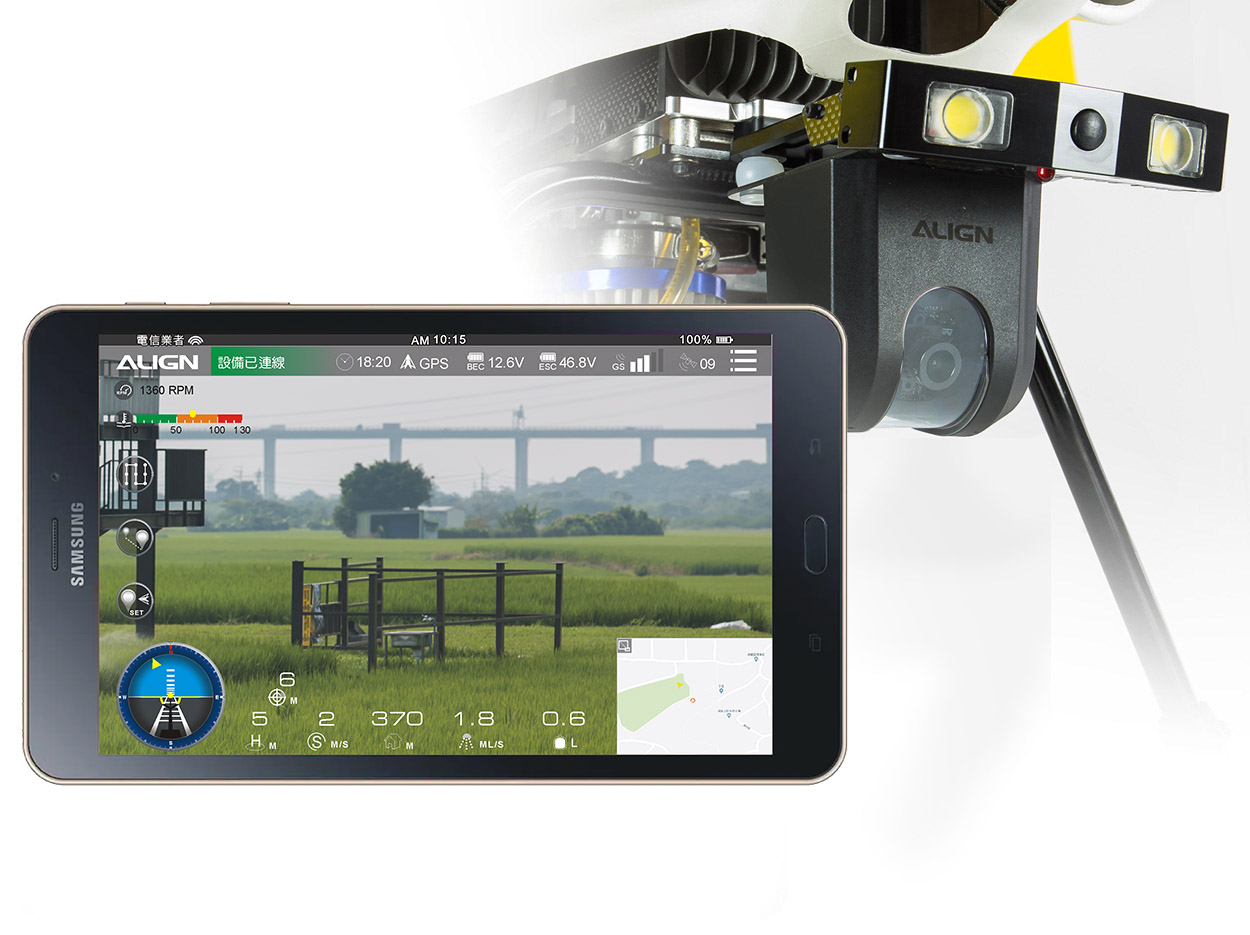

Equipped with 90-degree camera range and 130-degree wide angle. Easily switch to monitor display (POP) to watch video transmission instantly on APP spraying operation monitor in real-time.

Utilizing the FPV camera the pilot can map a precise route for agricultural spraying. Unlike traditional farming and A-B mapping, the helicopter FPV camera mapping is efficient, while saving time.

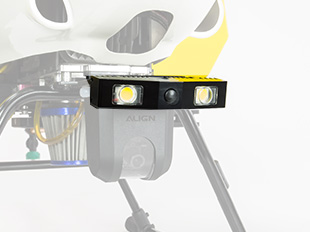

Equipped with a extremely bright LED search headlight, to improve night exploration with better visibility and improved safe night operation.
Specification：Wattage 12W、Avaible Lighting area 30m、Emitted Color：White

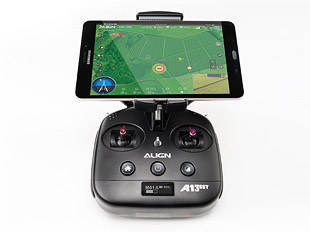

A13 GST is an ergonomic design with a comfortable grip and precision gimbal control. The built-in integration of this new remote control system was developed specifically to allow single button control of multiple functions and to improve flight efficiency. Ground System APP is used to adjust the remote control parameters and custom button mode, so the helicopter maintains the best-performing state.
Using a dual-frequency transmission system, with high-gain antenna, effectively enhancing the anti-jamming capability and picture quality.

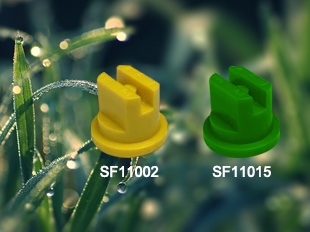

Each sprayer uses a standard fan-shaped nozzle designed to reduced wear and tear to maintain an effective spray pattern also designed to be used on different crops to apply chemicals appropriate for the desired spray application program.
Flexibility to adjust the flow and atomization effect according to required operational needs by choosing either the efficient or strong spray mode. The helicopter is equipped with four spray nozzles designed to be used on different crops to apply chemicals appropriate for the desired spray application program.

Flight Mode

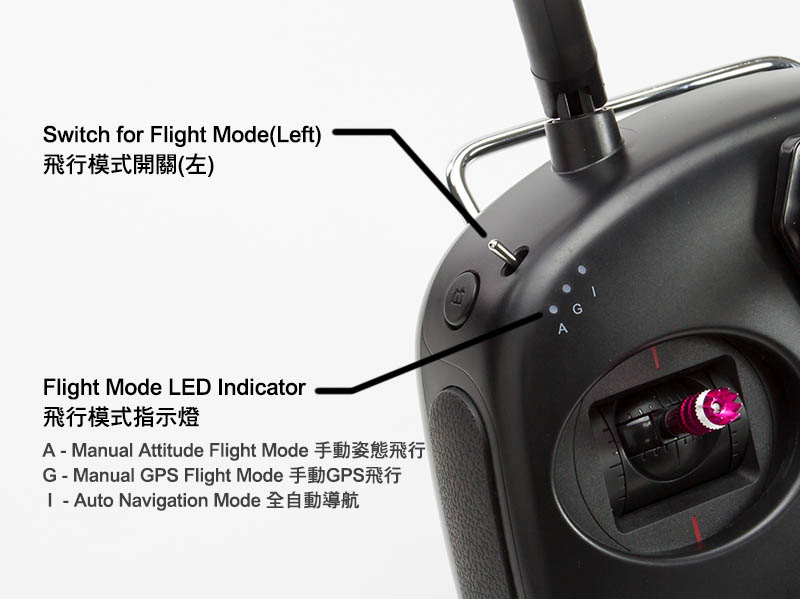

ALIGN G1 with AP2 high efficient and intelligent flight system supporting numbers of flight modes : Manual Attitude Mode, Manual GPS Mode and Auto Navigation Mode. Allow to choose different flight mode by transmitter switch.

Manual Attitude Flight Mode
Helicopter flight is controlled by pilots themselves. AP2 flight controller will keep helicopter hovering at certain level and altitude while there is no transmitter input. Maximum attitude flight angular is set at 30 degrees.

Manual GPS Flight Mode
Helicopter flight is controlled by pilots themselves. AP2 flight controller will keep helicopter hovering at certain level and altitude through GPS lock while there is no transmitter input. Maximum flight speed is set at 8 meters/sec.

Auto Navigation Mode
In Ground System, pilots can setup their own waypoints by drawing the designated flight area or marking desired location. When switch to auto navigation mode, AP2 flight controller will commend helicopter to hover or fly based on the waypoints settings in ground system. Pilots can switch off the auto navigation mode during mission is in process.

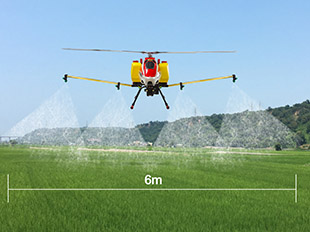

The new spraying technology offers precise and well-distributed spraying controls, to achieve the maximum spray area with minimum chemical use.

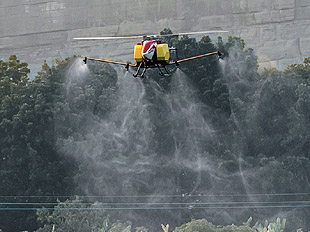

The ALIGN G1 1680mm rotor blade span produces a powerful, consistent downwash allowing for complete chemical coverage deep into the crops.

A sonar altimeter is used to detect the terrain height so the helicopter can adjust to maintain the same distance from the plants to provide a uniform spray across all crops.

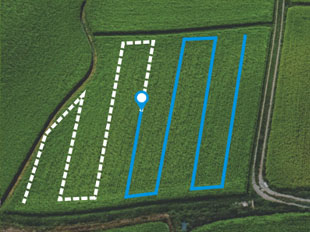

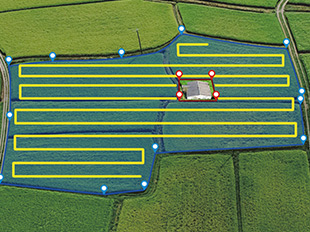

The Ground System APP is used to simplify the configuration of the spray route mapping. Use the drag and drop feature to mark the designated area for spray application. The APP calculates an efficient spray route which is displayed. The spray route can easily be adjusted using the APP. If the amount of liquid, to be sprayed, is entered the Ground System will automatically calculate any remaining parameters, thus conveniently improving the efficiency of route mapping and spray application.

ALIGN G1 incorporates an intelligent route interruption resume function. The AP2 saves the last chemical spray-location. This function allows the helicopter to return to the previous spray location to continue the programmed spray path. This particular feature ensures reliable deployment of chemicals to provide efficient plant protection.

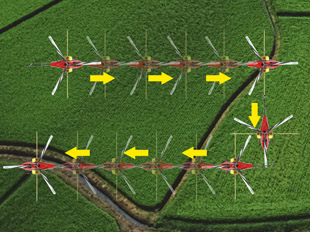

Offer two flight mode (Nose heading to the front or Nose heading to the back) allow to keep the most efficient spraying to save the chemical and reduce the ground pollution.

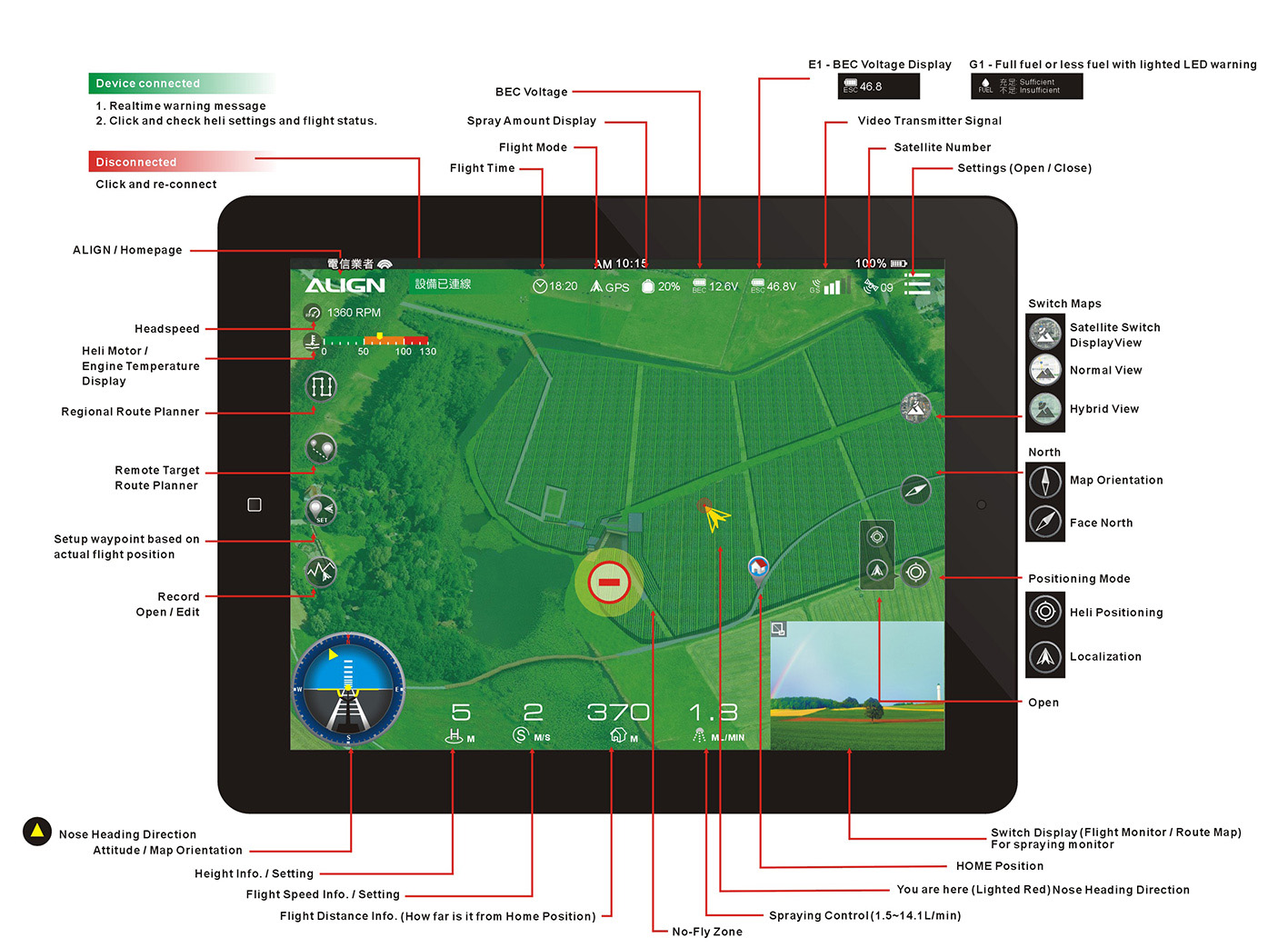

The Ground Station APP simplifies route mapping to automate flight. A complex mission is quickly programmed to achieve full automation of chemical spraying, applying a uniform application on the crop or farmland. The system is designed to apply the maximum application of chemical in the shortest time to increase efficiency for better results to ensure maximum crop yield.

Flight Monitoring
Display flight path and trajectory. Record all flight information such as flight distance, time, speed, altitude, voltage, current, record flight, and much more.

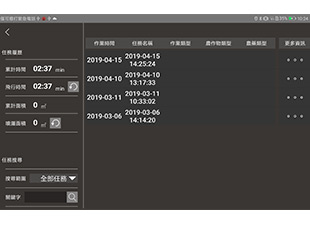

Task Management
Record each mission; location, time, area, spray flow and path. Quickly transfer a planned spray map route and control settings to implementation as a project.

Track Record
Record each task details: location, time, area, spray flow, chemical, crop type, and so on. Spray operation management will be more efficient, controlled, and redundant spraying is avoided.

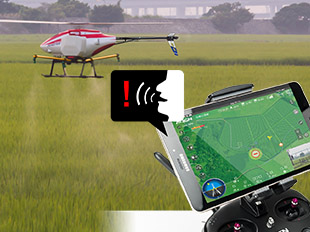

It has a voice reminding when operating any instruction, also has a voice warning when detecting any problem with flight (open/close the voice function and volume control via APP). Warning functions display; low voltage, low fuel, and the number of satellites are less than 10.

When selecting Direct Return three options are available.
1. Fly within a 5-meter range. The APP alerts user before starting the automatic return. Return the original height coordinates and land at a height of 2m above the HOME point.
2. Fly within a 5 to 30-meter range. The APP alerts user before starting the automatic return. The APP prompts for either [original altitude return] or [return after ascending], and then an auto return landing at a height of 2m above the HOME point.
3. Fly in the range of 30-meter away. The APP alerts user before starting the automatic return. The APP prompts for either [return after ascending 10 meters] and landing at a height of 2m above the HOME point.

Note:Auto return speed: 1.5M/s within 5 to 30 meters, 3M or 4M/s outside 30 meters.
