Rcexl CDI-1224 CDI Ignition Kit for 10mm - NGK CM6 Plugs TWIN (DL100/111

RCEXL TWIN system for 10mm NGK CM6 or equivalent plugs

Version 2.0

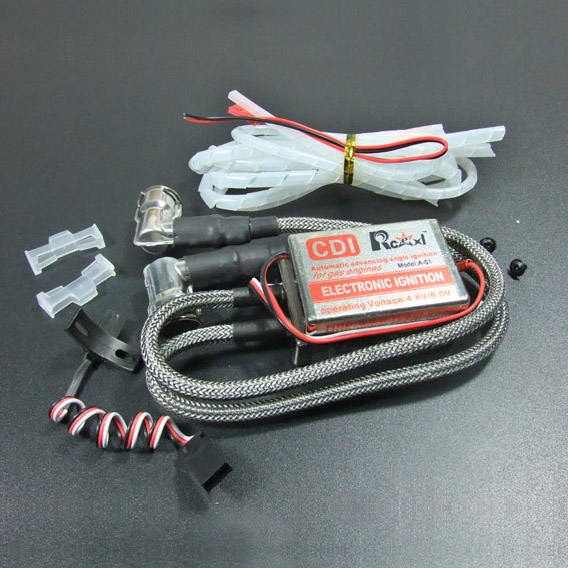

CM6 10mm Ignition Rcexl CDI Ignition Systems Capacitive Discharge Ignitions systems includes high voltage module, spark coil, shielded spark plug lead, battery lead and pulse switch lead with Deans plug. Assembled in a heavy duty aluminum case, these systems are for engines that are already set up with a hall effect triggered ignition system. They do not include switch harness, spark plug, pulse switch, magnet, battery or Syncro Spark computer timing control. All systems require a full time on board battery pack, 4.8 to 6 volts with 700 MAH or larger capacity.

Specs:

• Input voltage 4.8-6v
  Output voltage 12-16 kV
  Max Draw @8000 rpm - 650 ma
  Case - ABS with Nickel plate
  Weight Single: less battery - Single 4.4oz
  Weight Twin: less battery - 6.1oz
  Plug size - 10MM NGK (CM-6)
  Dedicated tachometer signal wire
