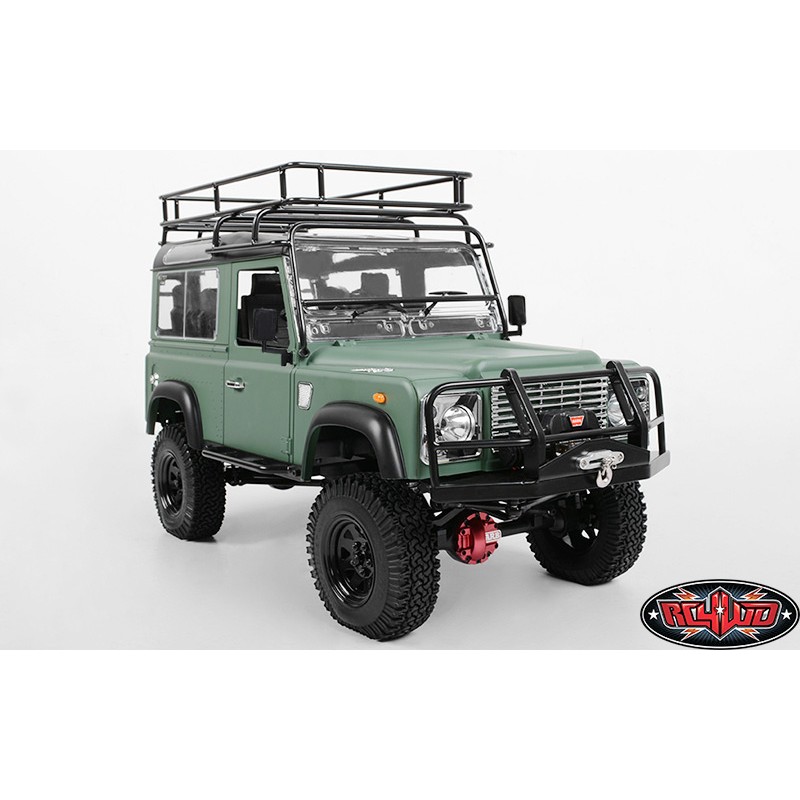

RC4WD Z-RTR0023 Gelande II RTR D90 Truck Kit (Limited Edition)

Specifications:

• Custom Designed for True to Scale Looks
• Realistic Aluminum Ladder Frame Chassis
• 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black)
• Dirt Grabber 1.9" All Terrain Tires
• Yota II Ultimate Scale Cast Axle
• R3 Single Speed Transmission
• Center Mounted Realistic 4x4 Transfer Case
• Cast Metal Axles with Locked Differentials
• 3 link front and 4 link rear suspension
• Gelande 2 Chassis
• Plastic Rod Ends
• Full Ball Bearings
• ARB Diff Covers
• Scale Steel Punisher Shaft V3
• Rock Krawler RRD Emulsion Scale Dual Spring Shocks
• Gelande Front Winch Bumper
• RC4WD 1/10 Warn 9.5cti Winch
• 540 Crawler Brushed Motor 45T
• Outcry Crawler Dual Motor ESC w. Fan & TurboBEC
• ESC Input Voltage: 4-12 NiCd/NiMH cells (1.2V per cell) or up to 14.8v LiPo
• Twister High Torque Metal Gear Digital Servo
• XR4 4-Channel 2.4Ghz Transmitter/Receiver Radio
• RC4WD Wired Winch Control Unit
• RC4WD Spare Tire Case For Defender Body
• 1/10 Land Rover Defender D90 Limited Edition Pre-painted Green Body
• Gelande Side Rock Sliders
• Length: 19.4in / 493mm
• Width: 8.7in /221mm
• Height: 10.24in / 260mm
• Wheelbase: 10.63in / 270mm
• Weight: 141.8oz / 4.02kg

What's Included:

• 1x Gelande II RTR D90 Truck Kit (Limited Edition)

Notes:

• Body is painted. Some assembly required

This is not a full RTR. This product requires products to be installed after delivery as the parts can cause damage in shipping if already installed.

Here is a list of the items that need to be installed to complete this truck.

Truck Kit

• Hex Drivers (1.5mm, 2mm, 2.5mm)
• Long Nose Pliers
• Associated Thread Locking Adhesive
• Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

• Modeling / Craft Knife
• Instant glue / Plastic Cement (prefer non whitening)
• Hex Drivers (1.5mm, 2mm)
• Cross Phillips Screwdrivers (small)

Needed Equipment to Complete:

• 6 Cell NIMH Battery Pack with XT60 Connector.
• AA Batteries for Radio
• Charger for NIMH Battery

Build Time:

• This truck will require some work to complete.
• Some hardware may require threadlock.
• Some gears may need to be lubricated.

Notes:

• While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply threadlock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Fits ARB Land Rover Defender 90 Winch Bar Front Bumper for Gelande 2 (Z-S0853) and RC4WD 1/10 Warn 9.5cti Winch (Z-S1079), but should work with RC4WD 1/10 Warn 9.5cti Winch CNC Mounting Plates (Z-S1168)
