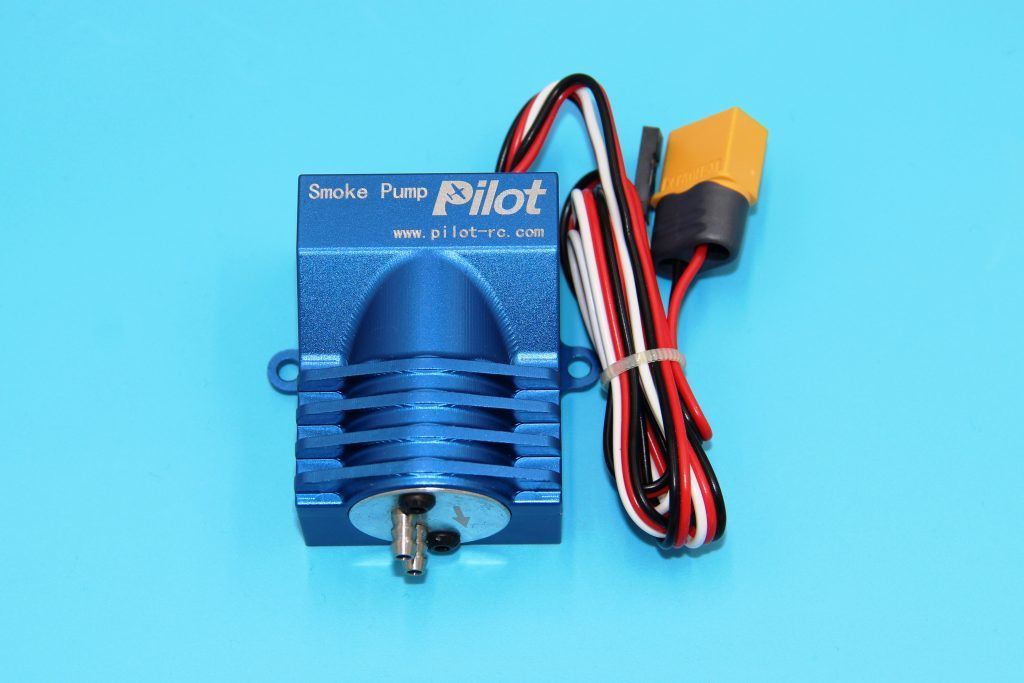

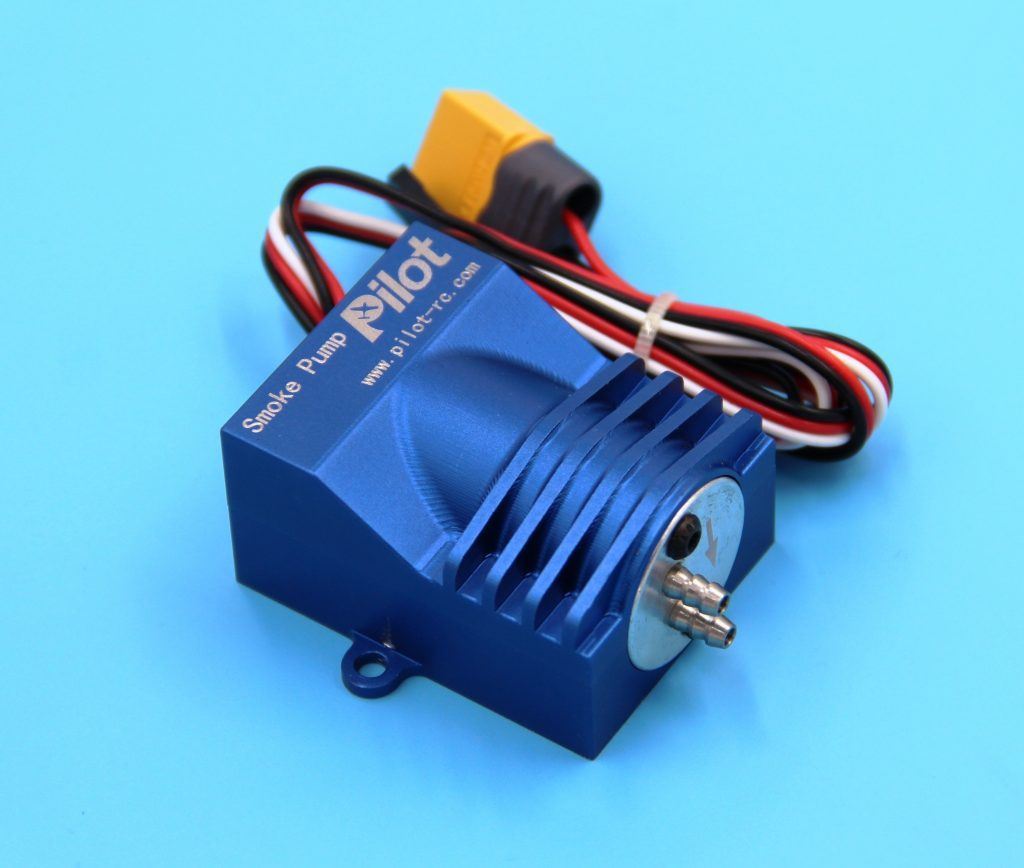

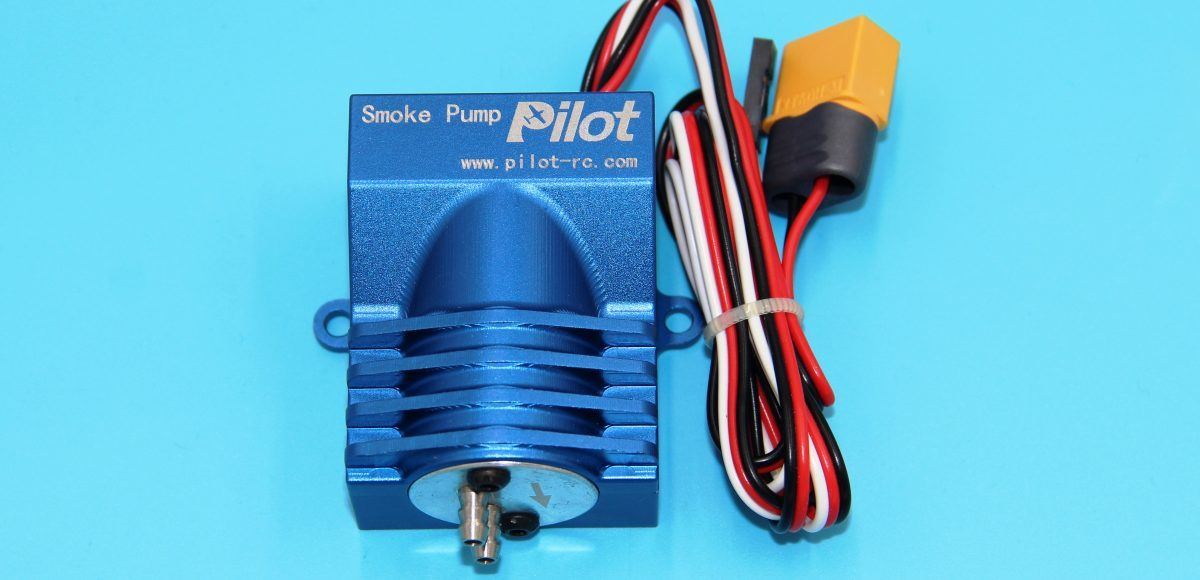

Pilot RC Smoke Pump

Manufacturer: Pilot-RC
Availability: 1 in stock
SKU: SmokePump
$245.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Installation:

The smoke pump comes with just two wires:

  • Futaba connector for signal – Connect to your receiver or powerbox to the output that you will be using to control the on/off position as well as the flow.
  • XT60 connector for power – Connect a 2S lipo to the power input (voltage input 6.8v-13.0v)
    We do not recommend joining both sets of positive and negative wires in order to pull power directly from the receiver or powerbox!

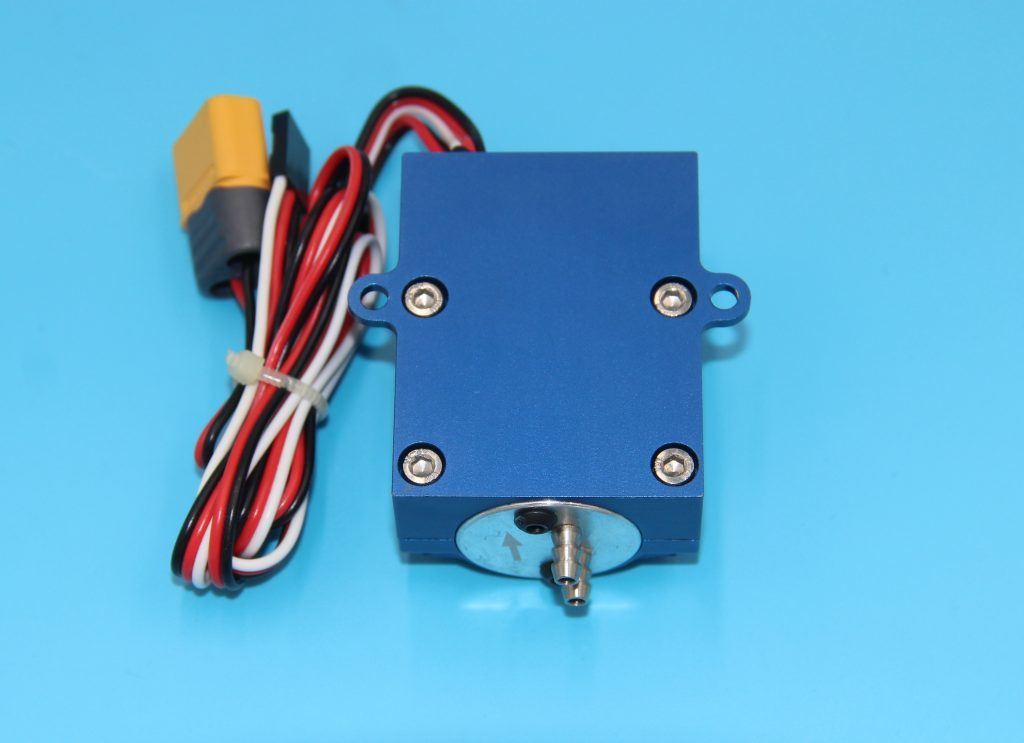

  • Connect the pump nipples to the smoke tank and exhaust tubes, taking especial notice of the direction of flow, indicated on the pump with an engraved arrow.

Setup:

All setup is done via the radio, using a single channel:

  • -100% to -30% radio signal, the pump is ON with an intermittent smoke flow. The higher the % the more fuel flow.
  • -30% to +30% radio signal (channel center) the pump is OFF
  • +30% to +100% radio signal, the pump is ON with a continuous smoke flow. The higher the % the more fuel flow

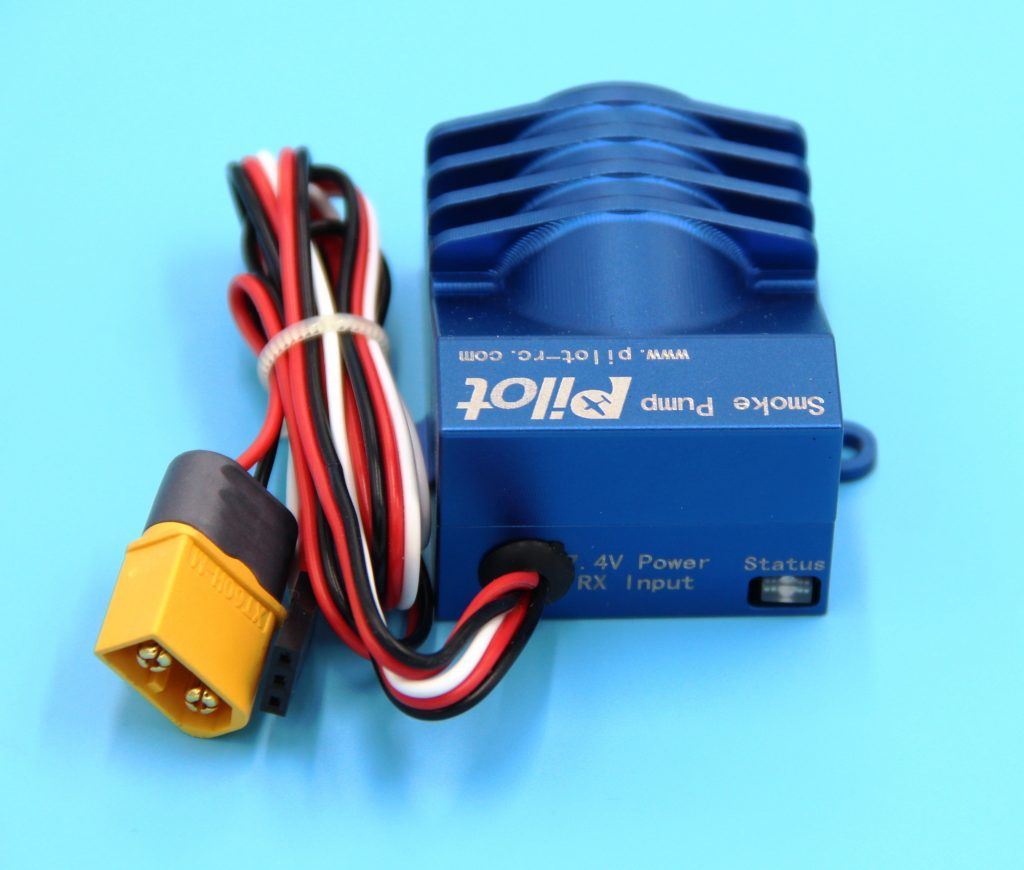

You can also use the LED on the smoke pump to read out its current situation:

  • Solid red: Power is on, voltage is incorrect (below 6.8v or above 13.0v)
  • Flashing red: Overcurrent, please check that the pump is not blocked or jammed
  • Fixed blue: Lost radio signal
  • Flashing blue: Pump running, in intermittent flow mode
  • Fixed green: Power is on, voltage is correct (between 6.8v and 13.0v)
  • Flashing green: Pump running, in continuous flow mode
