Pilot-RC Slick – 74″ (1.88m) Colour 02

Manufacturer: Pilot-RC
Availability: Out of Stock - on backorder and will be dispatched once in stock.
SKU: SLICK74-02
$969.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Request a freight quote for shipping on this product

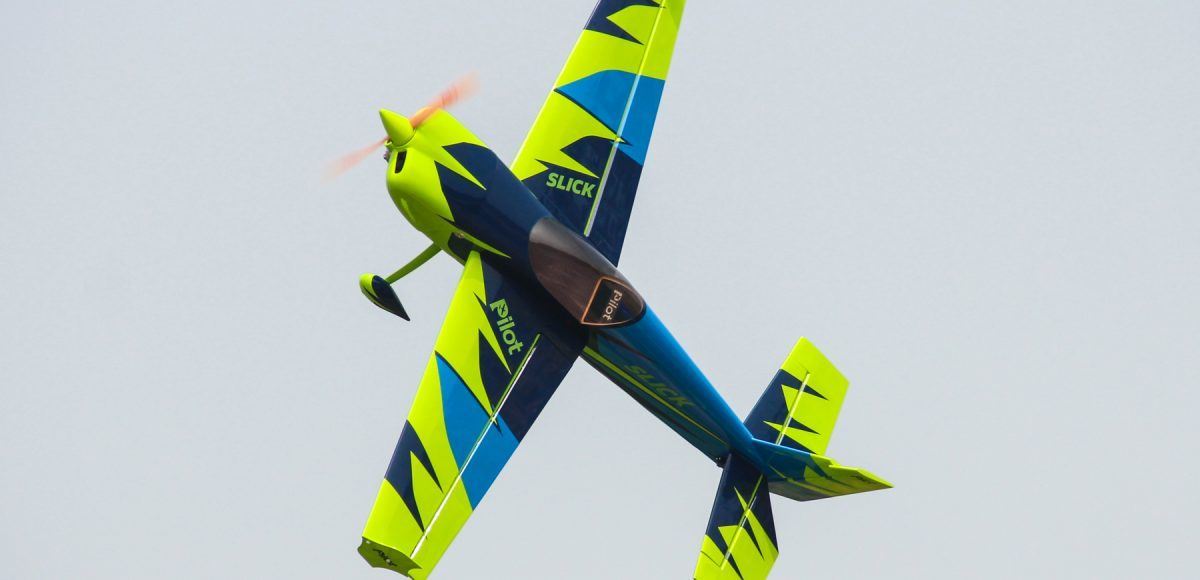

Slick – 74″ (1.88m)

Pilot-RC already surprised everyone with a new level of precision and agility with our extremely popular Laser. We have now taken all these great features and grown them into our new Slick.

The Pilot-RC Slick, as well as looking great and offering color schemes designed by legendary Italian designer Mirco Pecorari at Aircraft Studio Design, it once again flys as good as it looks, and that is really saying something!

All the crazy agility and manoeuvrability of the Laser, while keeping the friendly flying characteristics of Pilot-RC planes, the new Slick offers an even further improvement in precision and aero musical performance, feeling like a larger plane, a larger plane that can go nuts!


SPECIFICATIONS:

Model:Slick – 74″
Wingspan:74″ (1.880mm)
Length:70.6″ (1.792mm)
Wing area:1,081 “² (6,978 cm²)
Weight:11.4lbs (5.2kg)

VIDEOS:


GALLERY:


FEATURES:

  • NEW! Hybrid construction from wood and composite materials for specially reinforced fuselage and wings.
  • NEW! Patented quick assembly system for wings and SFG.
  • NEW! Patented quick assembly system for canopy. Especially useful for electric version, fast battery change!
  • Film covering applied over a Genuine German Oracover (Ultracote) base
  • Highly prefabricated, experienced builders can have air ready in under a day
  • Pre-installed aileron and elevator hinges (glued and pinned)
  • Easy canister installation due to open construction
  • Removable wings
  • One piece stabilizer
  • Laser engraved motor mounting position
  • Pull-Pull system for Rudder servo
  • Cowl fits both gasoline and electric motors

INCLUDED HARDWARE:

  • Complete air frame with all basic accessories (such as carbon fibre main undercarriage, tail-gear assembly and wing-tubes as well as fibreglass control horns and wheel pants)
  • Pre-installed hinges and pre-mounted canopy
  • Fuel tank and fuel tubing pre-prepared, fuel dot and breather valve
  • Wheels, axels and wheel pants
  • Pre-prepared pushrods with ball links
  • Matching carbon spinner

CRASH KITS AVAILABLE FOR THIS MODEL:

  • Landing gear repair package. Includes the wooden parts required to repair the damage often suffered around the landing gear area.
  • Front fuselage repair package. Includes the wooden parts required to repair the damage often suffered around the front of the model
  • Please note that additional or alternative spare wood outside of the above Packs is not available to order.

REQUIRED HARDWARE:

Motor: 30-40cc or equivalent electric

Servos: 4 high torque plus throttle // Uses x1 per aileron, x1 for elevator and x1 on rudder

Also requires all the usual accessories such as transmitter, receiver, propeller, batteries, powerbox, extension leads and possibly other small accessories.


PILOT-RC RECOMMENDED HARDWARE:

  • Servos: Pilot-Rc PW20AH (20Kg – 0,14s at 8,4v)
  • Servo arms: Pilot-Rc 1,6″ Aluminium arms (included with Pilot-Rc servos)
  • Wingbags: Pilot-RC wingbags

COLOUR SCHEMES AVAILABLE:

Colour scheme Slick 01: Yellow, red and black

References: Oracover 21-023, 21-033, 21-091, 21- 071 / Ultracote HANU866, HANU872, HANU881, HANU874


Colour scheme Slick 02: Green and blue

References: Oracover 21-053, 21-019 / Ultracote HANU875, HANU905



Build information

COWL SIZE:

A: 252mm, B: 238mm, C: 245mm, D: 255mm




EXHAUST TUNNEL SIZE:

A: 253mm, B: 83mm, C: 253mm, D: 87mm, E: 129mm




RUDDER HORNS AND PULL PULL LOCATION:

A: 80mm, B: 112mm, C & D: 16mm (same horn for pull pull or push pull)

EXTENSION WIRE LENGTHS:

Throttle:
No extension required

Each aileron:
15cm
(to reach receiver direct)

Elevator:
67cm

Rudder:
Pull pull, no extension required


CENTER OF GRAVITY:

136mm
Measured back from leading edge of the wing at the fuselage.

You will find a laser engraved C.G. emblem on the inside of the fuselage, located close to the wing tube, which also shows the exact location for Center of Gravity.


FULL BUILD MANUAL:
